0.28 Inch Dual Digit Hyper Red SMD Digit LED Display for indoor use

Name: 0.28 Inch Dual Digit Hyper Red SMD Digit LED Display for indoor use
Brand: DOUBLE LIGHT
SKU: DL2-PCB281XSRA
Rating: 4.6 (195 reviews)

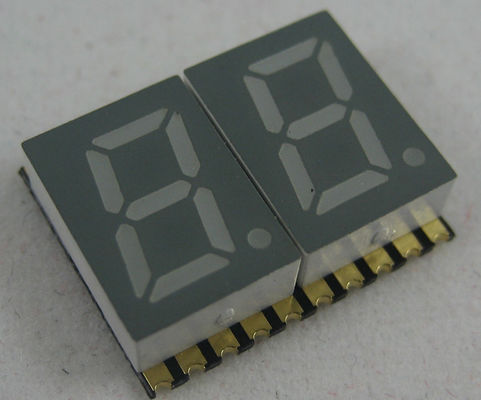

Large Image : 0.28 Inch Dual Digit Hyper Red SMD Digit LED Display for indoor use

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL2-PCB281XSRA

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	25 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	1,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	SMD LED Display	Package:	Doual 0.28 Inch
Emitted Color:	Hyper Red	Peak Emission Wavelength:	632nm
Chip Material:	AlGaInP	Face Color:	Gray Surface
Circuit Type:	Common Cathode & Common Anode	Luminous Intensity (Per Segment):	2-4mcd
Forward Voltage (Per Segment):	2.0-2.5v
High Light:	single digit led display , 3 digit led display

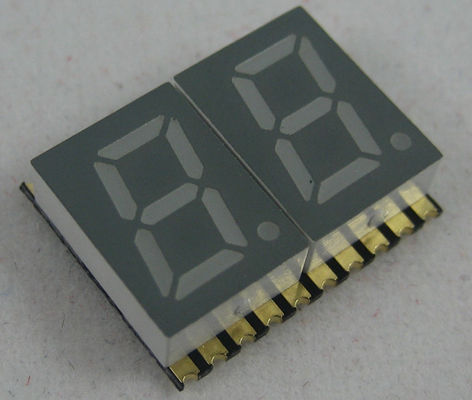

0.28 Inch Dual Digit Hyper Red SMD Digit LED Display for indoor use

Doual 0.28 Inch SMD Digit LED Display

Features:

0.28″ (inch) digit height.
Packaged in tape and reel for SMT manufacturing.
Design flexibility (common cathode and anode).
Categorized for luminous intensity.
The thickness is thinness than tradition display.
The product itself will remain within RoHS compliant Version.

Descriptions:

The SMD type is much smaller than tradition type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
These devices are made with white segments and gray surface.

Applications:

Suitable for indoor use.
Audio equipment.
Set top box.
Game machine.
Channel indicator of TV.

Device Selection Guide:

Model No.	Chip Material	Source Color	Description
DL1-PCB562CUGA	GaP	Yellow Green	Common Cathode
DL1-PCB562AUGA	GaP	Yellow Green	Common Anode

Doual 0.28 Inch SMD Digit LED Display Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation (Per Segment)	PD	60	mW
Peak Forward Current (Per Segment) (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Continuous Forward Current (Per Segment)	IF	25	mA
Derating Linear From 50℃		0.25	mA/℃
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +105℃
Storage Temperature Range	Tstg	-40℃ to +105℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Doual 0.28 Inch SMD Digit LED Display Absolute Maximum Ratings at Ta=25℃

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity (Per Segment)	IV	3.5	5.0	---	mcd	IF=10mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment)	I_V-M			2:1		IF=10mA
Peak Emission Wavelength	λp	---	632	---	nm	IF=20mA
Dominant Wavelength	λd	---	624	---	nm	IF=20mA (Note 2)
Spectral Line Half-Width	△λ	---	20	---	nm	IF=20mA
Forward Voltage (Per Segment)	VF	1.6	2.0	2.4	V	IF=20mA
Reverse Current (Per Segment)	IR	---	---	100	µA	V_R=5V

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

0.28 SMD Digit LED Display Package Dimension:
0.28 Inch Dual Digit Hyper Red SMD Digit LED Display for indoor use 0

DL2-PCB281CSRA

0.28 Inch Dual Digit Hyper Red SMD Digit LED Display for indoor use 1

DL2-PCB281ASRA

0.28 Inch Dual Digit Hyper Red SMD Digit LED Display for indoor use 2
