0.80'' 470nm Single Digit Numeric Displays Super Brightness 5mcd

0.80'' 470nm Single Digit Numeric Displays Super Brightness 5mcd
0.80'' 470nm Single Digit Numeric Displays Super Brightness 5mcd

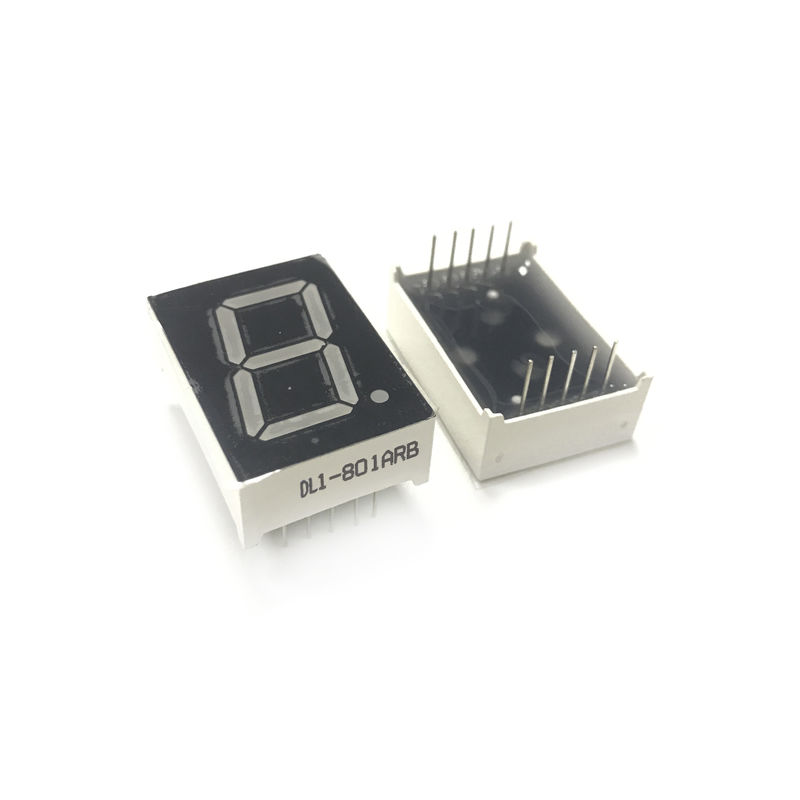

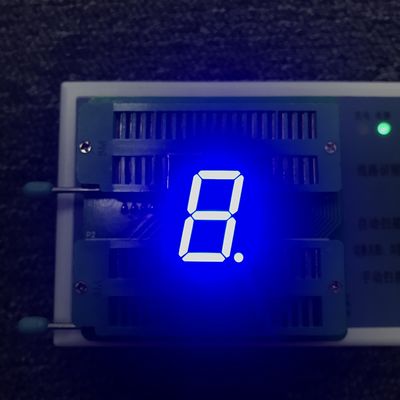

Large Image :  0.80'' 470nm Single Digit Numeric Displays Super Brightness 5mcd

Product Details:
Place of Origin: China (mainland)
Certification: ISO9001:2008/ROHS
Model Number: DL1-801XBB
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: US$ 0.14-0.3per unit (Pieces) depends on the quantity
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 7-10 working days after payment received
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 5,000,000pcs per Day
Detailed Product Description
Product Name: DIP LED Display Package: 0.80 Inch
Emitted Color: Blue Peak Emission Wavelength: 468-470nm
Luminous Intensity (Per Segment): 5-8mcd Forward Voltage (Per Segment): 2.6-3.6v
Size: 20.0*27.7*10mm Datasheet: Update
High Light:

0.80'' Single Digit Numeric Displays


470nm Single Digit Numeric Displays


5mcd 7 Segment Display


                 DL1-801XBB.pdf               Emitting color: Blue

                 DL1-801XUAB.pdf           Emitting color: Amber



0.80 Inch Single Digit Numeric Displays

Source color can be customed.



  1. 0.80"(inch)  digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.
  1. The DL1-801XBB series is a lager 20.40mm(0.80") high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.



  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.



0.80'' 470nm Single Digit Numeric Displays Super Brightness 5mcd 0


Device Selection Guide:


Model No. Chip Material Source Color Description
DL1-801ABB GaAlAs Blue Common Anode
DL1-801CBB Blue Common Cathode

Absolute Maximum Ratings at Ta=25℃


Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 100 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃   0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃


Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 10.0 20.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
Peak Emission Wavelength λp --- 470 --- nm IF=20mA
Dominant Wavelength λd --- 468 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 2.80 3.80 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V


  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



For more details, please contact us.



Contact Details

Contact Person: Mr. Chen

Tel: 86-755-82853859

Fax: 86-755-83229774

Send your inquiry directly to us (0 / 3000)
