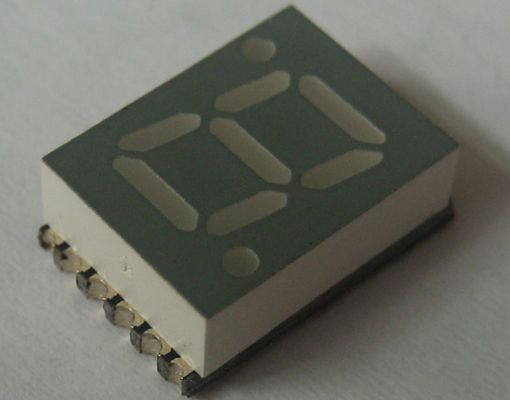

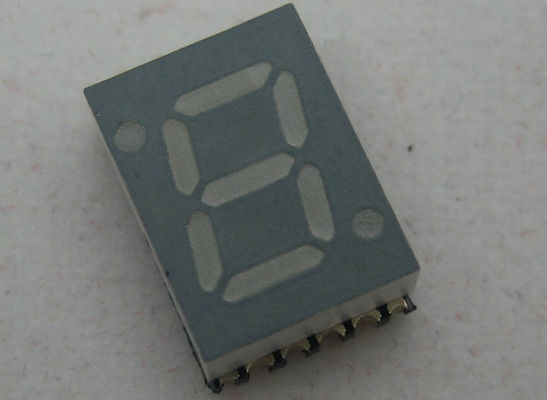

0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display

0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display

    • 0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display
    • 0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display
  • 0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL1-PCB562XYGA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 25 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 1,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: SMD LED Display Package: 0.56 Inch
    Emitted Color: Yellow Green,Red,Blue,White Peak Emission Wavelength: 575nm
    Chip Material: Gap Face Color: Gray Surface
    Circuit Type: Common Cathode & Common Anode Power Dissipation Per Segment: 60-100mW
    Forward Voltage (Per Segment): 1.8-2.5v Forward Current Per Segment: 25mA

    0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display





    Features:

    1. 0.56″ (inch) digit height.
    2. Packaged in tape and reel for SMT manufacturing.
    3. Design flexibility (common cathode and anode).
    4. Categorized for luminous intensity.
    5. The thickness is thinness than tradition display.
    6. The product itself will remain within RoHS compliant Version.



    Descriptions:

    1. The SMD type is much smaller than tradition type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
    2. These devices are made with white segments and gray surface.



    Applications:

    1. Suitable for indoor use.
    2. Audio equipment.
    3. Set top box.
    4. Game machine.
    5. Channel indicator of TV.



    Device Selection Guide:



    Model No. Chip Material Source Color Description
    DL1-PCB562CUGA GaP Yellow Green Common Cathode
    DL1-PCB562AUGA Yellow Green Common Anode





    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Max. Unit
    Power Dissipation (Per Segment) PD 78 mW

    Peak Forward Current (Per Segment)

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Continuous Forward Current (Per Segment) IF 30 mA
    Derating Linear From 50℃   0.4 mA/℃
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds


    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition

    Luminous Intensity

    (Per Segment)

    IV 3.00 8.00 --- mcd IF=20mA (Note 1)
    Luminous Intensity Matching Ratio (Segment To Segment) IV-M     2:1   IF=10mA
    Peak Emission Wavelength λp --- 575 --- nm IF=20mA
    Dominant Wavelength λd --- 573 --- nm IF=20mA (Note 2)
    Spectral Line Half-Width △λ --- 30 --- nm IF=20mA
    Forward Voltage (Per Segment) VF 1.60 2.20 2.60 V IF=20mA
    Reverse Current (Per Segment) IR --- --- 100 µA VR=5V




    Notes:

    1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



    0.28 SMD Digit LED Display Package Dimension:

    0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display





    DL1-PCB561CYGA                                                                                DL1-PCB561AYGA



    0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display



    0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display





















    Why double light can consider high quality and low price at the same time?


    Double light has been in LED industry for more than 15 years, has accumulated a huge number of worldwide customers.
    Based on the huge customers base, Double light manufacturing capacity was magnified to a high lever.
    Under this background, DOUBLE LIGHT can benefit its customers with low price.

     0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display



    0.56 Inch smd led display Seven 7 Segment single digit Yellow Green led display SMD Surface Mount Led Display
