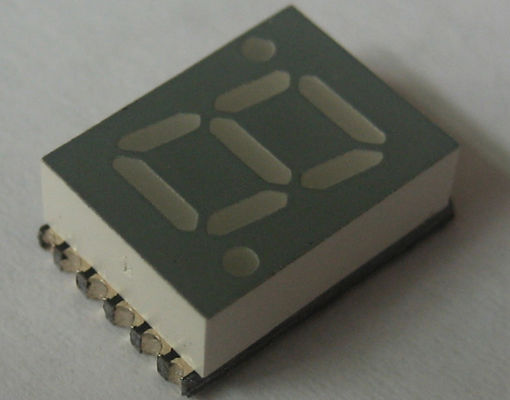

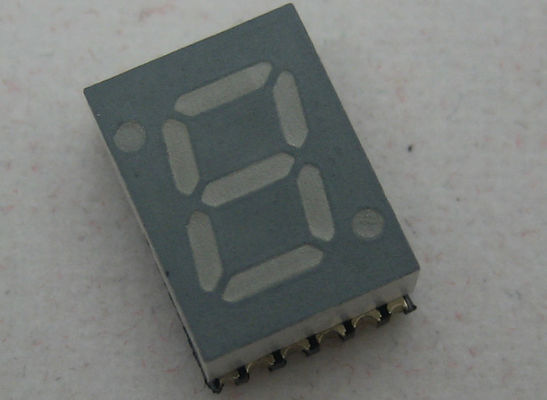

0.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display

0.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display
0.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display 0.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display 0.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display

Large Image :  0.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL1-PCB391XUYA
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 25 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 1,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: SMD LED Display Package: 0.39 Inch
Emitted Color: Super Yellow Peak Emission Wavelength: 590nm
Chip Material: AlGaInP Circuit Type: Common Cathode & Common Anode
Luminous Intensity (Per Segment): 8.5-15mcd Forward Voltage (Per Segment): 1.6-2.4v
Module Size: 15*9.8mm Forward Current: 25mA
High Light:

led number display

,

single digit led display

0.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display



DL1-PCB391XUYA.pdf

Features:

  1. 0.39″ (inch) digit height.
  2. Packaged in tape and reel for SMT manufacturing.
  3. Design flexibility (common cathode and anode).
  4. Categorized for luminous intensity.
  5. The thickness is thinness than tradition display.
  6. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The SMD DL1-PCB391 type is much smaller than tradition type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. These devices are made with white segments and gray surface.


Applications:

  1. Suitable for indoor use.
  2. Audio equipment.
  3. Set top box.
  4. Game machine.
  5. Channel indicator of TV.


Device Selection Guide:

Model No. Chip Material Source Color Description
DL1-PCB391CUYA AlGaInP Super Yellow Common Cathode
DL1-PCB391AUYA Super Yellow Common Anode



Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation (Per Segment) PD 65 mW

Peak Forward Current (Per Segment)

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Continuous Forward Current (Per Segment) IF 25 mA
Derating Linear From 50℃   0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃
Parameters Symbol Min. Typ. Max. Unit Test Condition

Luminous Intensity

(Per Segment)

 IV 8.5 15 --- mcd IF=10mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) IV-M     2:1   IF=10mA
Peak Emission Wavelength λp --- 590 --- nm IF=20mA
Dominant Wavelength λd --- 585 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage (Per Segment) VF 1.60 2.00 2.40 V IF=20mA
Reverse Current (Per Segment) IR --- --- 100 µA VR=5V




Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

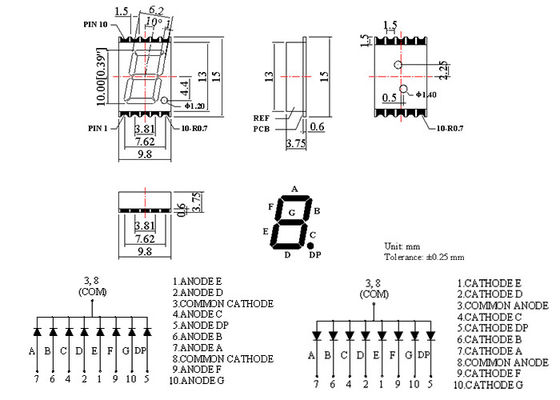

Package Dimension:

 0.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display 0
0.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display 10.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display 2





  • Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)


0.39 inch 1 Digit 7 Segment LED Display SMD Surface Mount Ultra Yellow led number display 3
