Home ProductsLed Light Emitting Diode

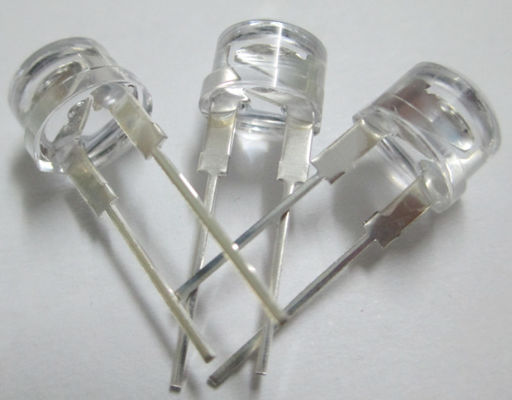

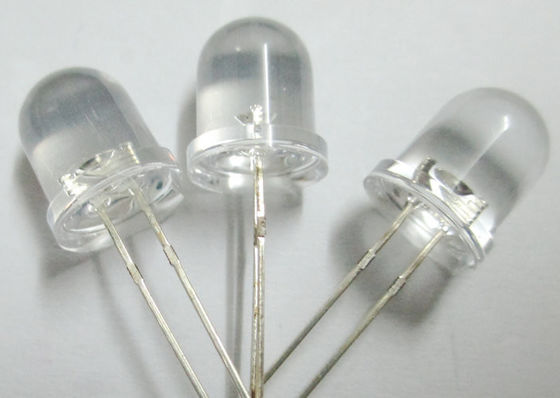

8.0mm Round light emission diode Wide Viewing Angle color X=0.32, y=0.33

8.0mm Round light emission diode Wide Viewing Angle color X=0.32, y=0.33

    • 8.0mm Round light emission diode Wide Viewing Angle color  X=0.32, y=0.33
    • 8.0mm Round light emission diode Wide Viewing Angle color  X=0.32, y=0.33
  • 8.0mm Round light emission diode Wide Viewing Angle color  X=0.32, y=0.33

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-204BCA-1B15

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: US$ 0.03-0.033per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 10,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Led Light Emitting Diode Package: 8.0mm
    Emitted Color: White Peak Emission Wavelength: X=0.32, Y=0.33.
    Chip Material: InGaN Lens Type: Water Clear
    Forward Voltage @20ma: 3.0-3.3v Luminous Intensity: 8000-12000mcd
    Viewing Angle: 20 Deg

    8.0mm Round light emission diode Wide Viewing Angle color X=0.32, y=0.33



    LED Light Emitting Diode



    1. Features:
    1. QA equipment.
    2. Backlighting of LCD.
    3. Automotive equipment.
    4. Replacement of conventional light bulbs and fluorescent lamps.
    5. Indoor and out door displays, etc.
    6.

    7. Applications:
    8. The series is specially designed for applications requiring higher brightness.
    9. The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence. The mixture of blue light and yellow light results in white emission.
    10. Utilizing advanced InGaN chip technology.
    11.

    12. Descriptions:
    13. 8.1mm diameter package.
    14. Viewing angle=60°.
    15. High efficiency.
    16. Reliable and robust.
    17. Emission color: X=0.32, y=0.33.
    18. Industrial standard footprint.
    19. The product itself will remain within RoHS compliant version.
    Part No. Chip Material Lens Color Source Color
    DL-804WC65C-1W60 InGaN Water Clear White















    1. Absolute Maximum Ratings at Ta=25℃
    Parameters Symbol Max. Unit
    Power Dissipation PD 95 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current IF 25 mA
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD 1000 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃

    Lead Soldering Temperature

    [4mm (.157″) From Body]

    Tsld 260℃ for 5 Seconds


    Notes:

    1. Proper current derating must be observed to maintain junction temperature below the maximum.
    2. LEDs are not designed to be driven in reserve bias.

    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity IV 1000 1500 --- mcd IF=20mA (Note 1)
    Viewing Angle 1/2 --- 60 --- Deg IF=20mA (Note 2)
    Chromaticity Coordinates x --- 0.33 ---   IF=20mA (Note 3)
    y --- 0.33 ---
    Color Temperature CCT 4,000 6,000 8,000 K IF=20mA
    Forward Voltage VF 3.0 3.3 4.0 V IF=20mA
    Reverse Current IR --- --- 10 µA VR=5V


    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.





    1. Package Dimension:

    8.0mm Round light emission diode Wide Viewing Angle color  X=0.32, y=0.33
