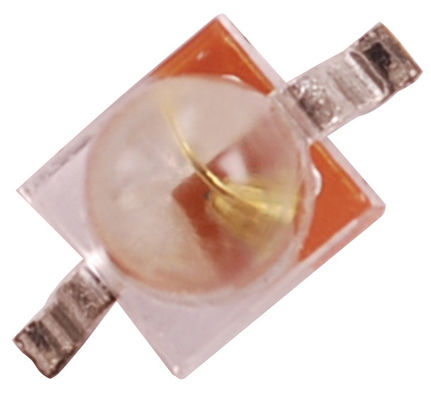

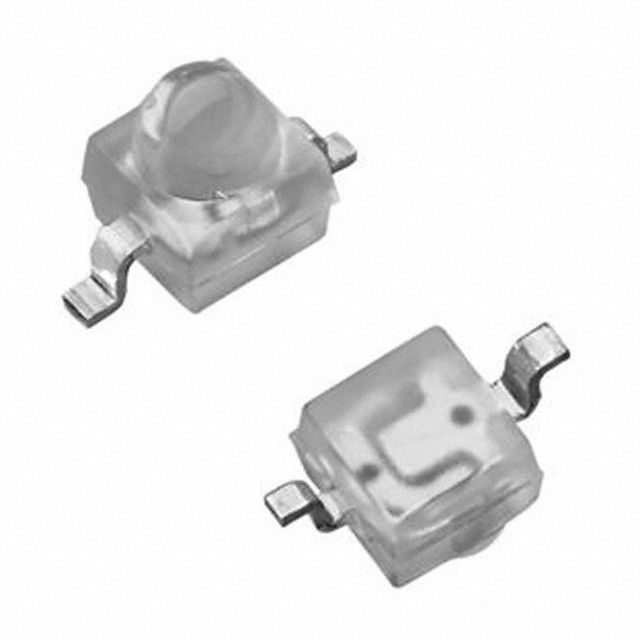

Yellow Green Chip Subminiature Axial Led Light Emitting Diode Peak Emission Wavelength 572nm

Yellow Green Chip Subminiature Axial Led Light Emitting Diode Peak Emission Wavelength 572nm

    • Yellow Green Chip  Subminiature Axial Led Light Emitting Diode Peak Emission Wavelength 572nm
    • Yellow Green Chip  Subminiature Axial Led Light Emitting Diode Peak Emission Wavelength 572nm
  • Yellow Green Chip  Subminiature Axial Led Light Emitting Diode Peak Emission Wavelength 572nm

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-R18YGC-1YG20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: US$ 0.03-0.033per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 10,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 1.8mm Chip LED Package: 1.8mm
    Emitted Color: Yellow Green Peak Emission Wavelength: 572nm
    Chip Material: Gap Lens Type: Yellow Diffused
    Forward Voltage @20ma: 2.0-2.2v Luminous Intensity: 1000-2000mcd
    Viewing Angle: 20 Deg

    Yellow Green Chip Subminiature Axial Led Light Emitting Diode Peak Emission Wavelength 572nm





    Features:

    1. 2.15×2.40mm with 1.80mm lens.
    2. Small double-end package.
    3. EIA Std. package.
    4. Mono-color type.
    5. High reliability.
    6. Low forward voltage.
    7. Compatible with automatic placement equipment.
    8. The product itself will remain within RoHS compliant version.



    Descriptions:

    1. The R18 SMD taping is much smaller than leaded components. Thus enable smaller board size. Higher packing density. Reduced storage space and finally smaller equipment to be obtained.
    2. Besides, light weight makes them ideal for miniature applications.
    3. Furthermore by automation assembly machines the accuracy is anticipated.



    Applications:

    1. Small indicator for indoor applications.
    2. Flat backlight for LCD, switches and symbols.
    3. Indicator and backlight in office equipment.
    4. Indicator and backlight for battery driven equipment.
    5. Indicator and backlight for audio and video equipment.
    6. Automotive: Backlighting in dashboards and switches.
    7. Telecommunication: Indicator and backlighting in telephone and fax.
    Part No. Chip Material Lens Color Source Color
    DL-R18YGC-1YG20 GaP Water Clear Yellow Green

















    1. Absolute Maximum Ratings at Ta=25℃
    Parameters Symbol Max. Unit
    Power Dissipation PD 72 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Continuous Forward Current IF 30 mA
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds


    Electrical Optical Characteristics at Ta=25℃

    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity * IV 70 130 --- mcd IF=20mA (Note 1)
    Viewing Angle * 2θ1/2 --- 20 --- Deg IF=20mA (Note 2)
    Peak Emission Wavelength λp --- 575 --- nm IF=20mA
    Dominant Wavelength λd --- 573 --- nm IF=20mA (Note 3)
    Spectral Line Half-Width △λ --- 30 --- nm IF=20mA
    Forward Voltage VF 1.80 2.20 2.80 V IF=20mA
    Reverse Current IR --- --- 10 µA VR=5V




    Notes:

    Luminous Intensity Measurement allowance is ± 10%. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
    Package Dimension:
