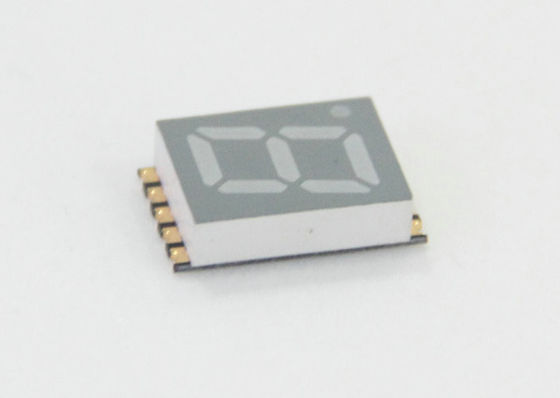

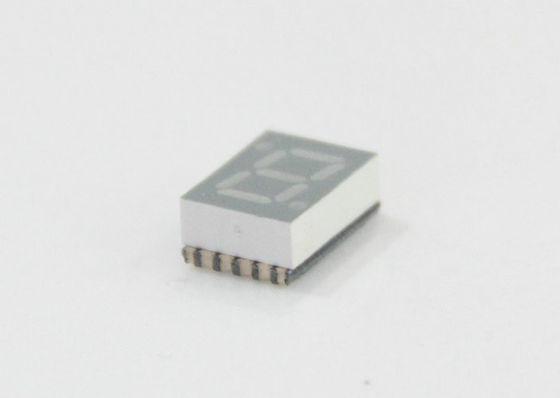

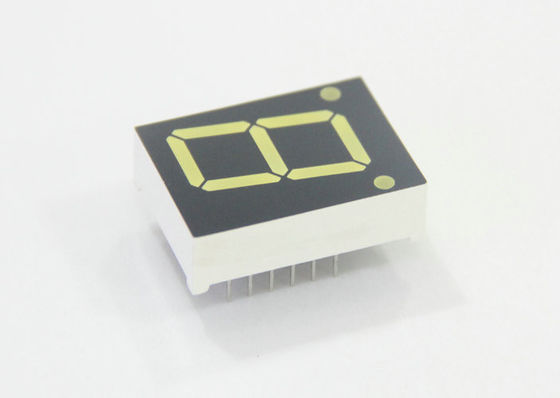

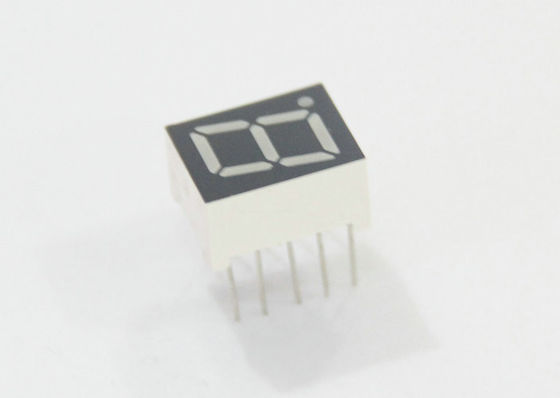

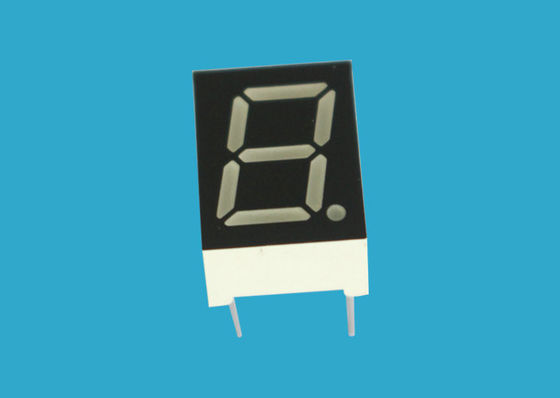

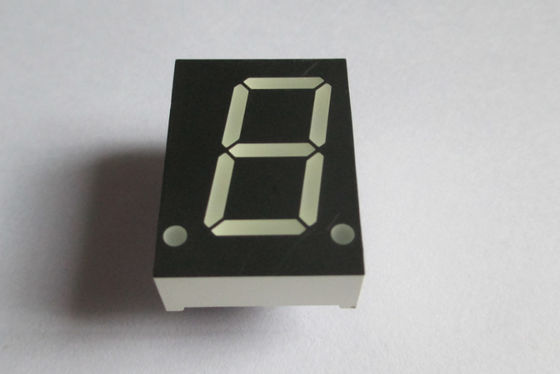

Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color

Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color
Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color

Large Image :  Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL2-8011XRB
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 10-15 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 8,000,000pcs per Day
Detailed Product Description
Product Name: 7 Segment LED Display Package: 0.8 Inch
Emitted Color: Red Peak Emission Wavelength: 660nm
Chip Material: GaP Face Color: Black Surface
Forward Voltage @20ma: 1.8V Luminous Intensity: 3-5mcd
High Light:

led seven segment display

,

brightest smd led chip

​7 Segment LED DisplayKey Specifications/Special Features:



  1. Features:
  1. 0.80″(inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant version.
  7. Low current operation.
  8. 8.Low power consumption.
  9. 9.High brightness.
  10. 10.Industrial standard size.
    Easy mounting on P.C. board or sockets.
    Face color : black / gray .
    Polarity : common anode / cathode



  1. Descriptions:
  1. The DL2-801XRB series is a lager 20.30mm(0.80″) high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.



  1. Applications:
  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.





Device Selection Guide:

Model No. Chip Material Source Color Description
DL2-801ARB GaAlAs Super Bright Red Common Anode
DL2-801CRB Super Bright Red Common Cathode




  1. Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 60 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃   0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds




Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 2.0 4.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
Peak Emission Wavelength λp --- 660 --- nm IF=20mA
Dominant Wavelength λd --- 640 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 1.80 2.40 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V




Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



7 Segment LED Display Package Dimension:

Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color 0


      DL2-801CRB

Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color 1
