| Product Name: | 7 Segment LED Display | Package: | 0.36 Inch |
|---|---|---|---|
| Emitted Color: | Yellow Green | Peak Emission Wavelength: | 573nm |
| Chip Material: | Gap | Face Color: | Black Surface |
| Forward Voltage @20ma: | 2.2V | Luminous Intensity: | 3-5mcd |
| High Light: | led seven segment display,led bar display |
||

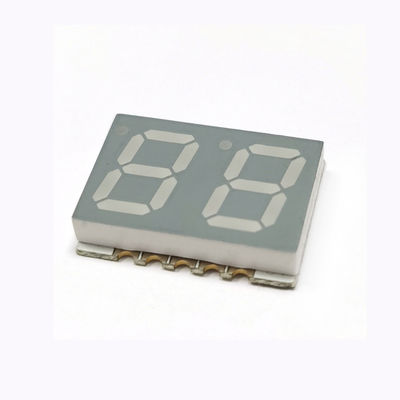

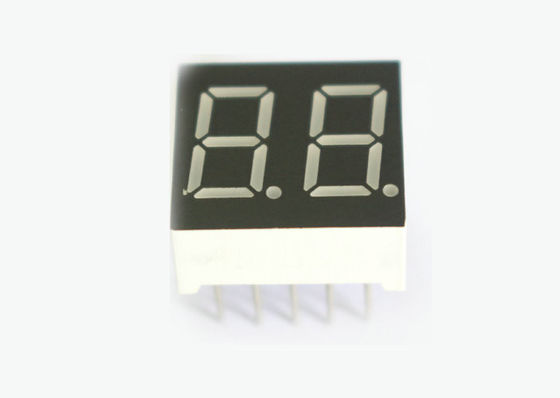

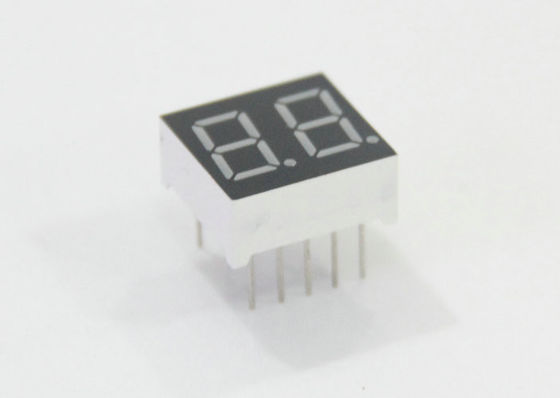

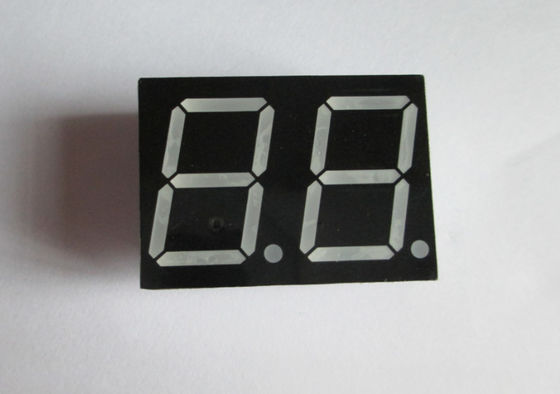

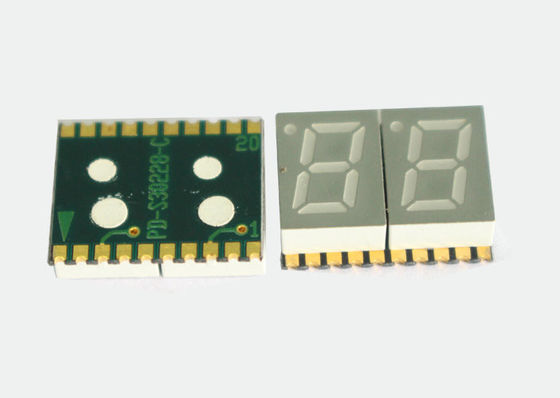

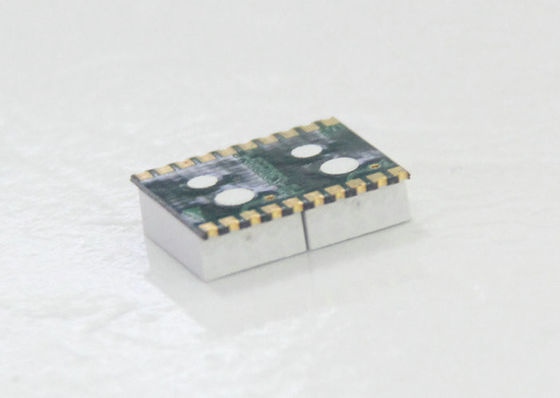

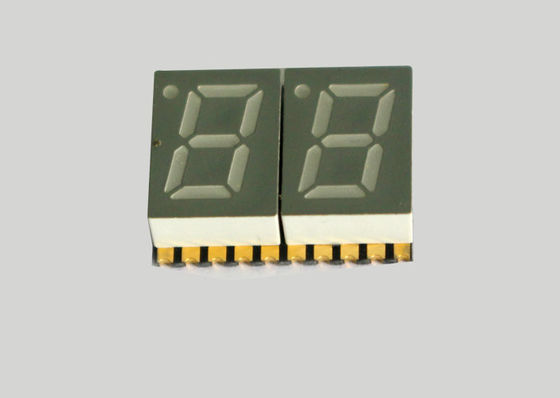

Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
7 Segment LED DisplayKey Specifications/Special Features:
Intensity: 30mcd
Color:
Lens: white
Emitting: red
Surface: black or gray
Common anode or cathode
High intensity
Nice segment bright uniformity
Low power consumption
OEM and ODM orders are welcome
RoHS Directive-compliant
Sizes:
Digit: 9.2mm (0.36 inch)
Outer: 14x15x7.2m
Applications:
- Audio equipments or instrument panels
- Home electronic appliances,air conditional controller
- General use for digital indicators
- Multimedia products
Device Selection Guide:
| Model No. | Chip Material | Source Color | Description |
| DL2-361AYGB | GaAlAs | Yellow Green | Common Anode |
| DL2-361CYGB | Yellow Green | Common Cathode |
| Parameter | Symbol | Max. | Unit |
| Power Dissipation Per Segment | PD | 70 | mW |
|
Peak Forward Current Per Segment (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA |
| Forward Current Per Segment | IF | 25 | mA |
| Derating Linear From 50℃ | 0.4 | mA/℃ | |
| Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | Topr | -40℃ to +80℃ | |
| Storage Temperature Range | Tstg | -40℃ to +85℃ | |
| Soldering Temperature | Tsld | 260℃ for 5 Seconds | |
Electrical Optical Characteristics at Ta=25℃
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity | Iv | 0.8 | 1.4 | --- | mcd | IF=20mA (Note 1) |
| Luminous Intensity Matching Ratio (Segment To Segment) | Iv-m | --- | --- | 2:1 | IF=10mA | |
| Peak Emission Wavelength | λp | --- | 568 | --- | nm | IF=20mA |
| Dominant Wavelength | λd | --- | 572 | --- | nm | IF=20mA |
| Spectral Line Half-Width | △λ | --- | 20 | --- | nm | IF=20mA |
| Forward Voltage | VF | --- | 2.20 | 2.80 | V | IF=20mA |
| Reverse Current | IR | --- | --- | 50 | µA | VR=5V |
Notes:
Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
7 Segment LED Display Package Dimension:
DL2-361AYGB DL2-361CYGB
