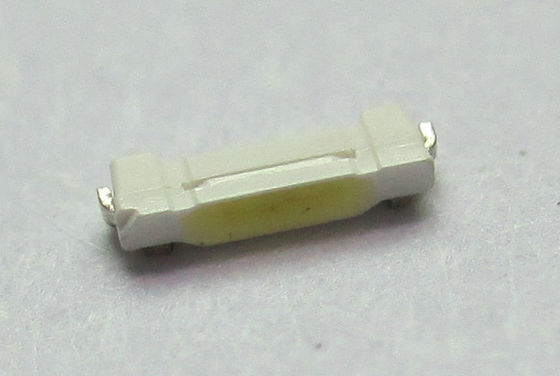

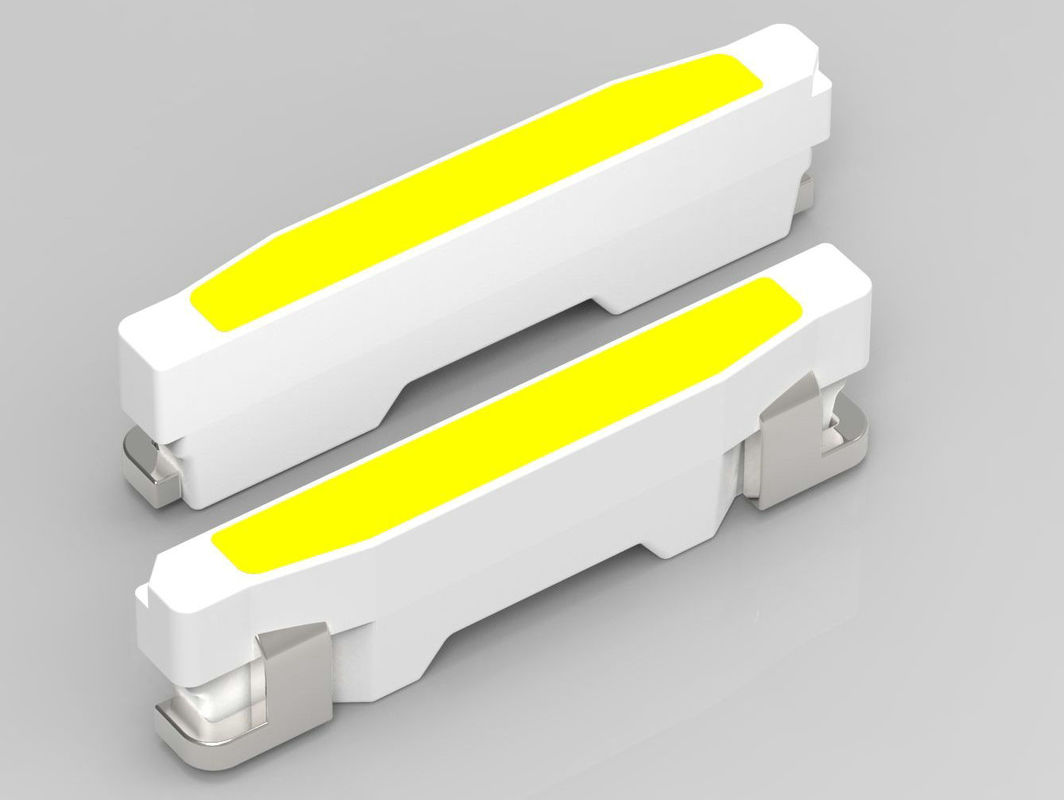

1.20mm Height Top Side View LED / White Brightest Led Chip

1.20mm Height Top Side View LED / White Brightest Led Chip
1.20mm Height Top Side View LED / White Brightest Led Chip 1.20mm Height Top Side View LED / White Brightest Led Chip

Large Image :  1.20mm Height Top Side View LED / White Brightest Led Chip

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-TOP020W65-1W120
Payment & Shipping Terms:
Minimum Order Quantity: 4000pcs
Price: US$ 0.03-0.033 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: Side View LED Package: Top 020
Emitted Color: White Chromaticity Coordinates: 0.31/0.32
Chip Material: InGaN Lens Type: Yellow Diffused
Forward Voltage @20ma: 3.0-3.2v Luminous Intensity: 2200-2800mcd
Viewing Angle: 120 Deg
High Light:

side emitting led

,

led side emitting

1.20mm Height Top Side View LED / White Brightest Led Chip



Features:

  1. White SMT package.
  2. Side view white LED.
  3. Wide viewing angle.
  4. Lead frame package with individual 2 pins.
  5. Compatible with automatic placement equipment.
  6. Compatible with infrared and vapor phase reflow solder process.
  7. The product itself will remain within RoHS compliant Version.



Descriptions:

  1. Due to the package design, the 020 SMD LED has wide viewing angle, low power consumption and white LEDs are devices which are materialized by combing blue LEDs and special phosphors. This feature makes the LED ideal for light guide application.
  2. The 020 SMD LEDs much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  3. The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence the mixture of blue light and yellow light results in white emission.
  4. Utilizing advanced InGaN chip technology.
  5. Besides, lightweight makes them ideal for miniature applications, etc.



Applications:

  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. Indoor signboard use.
  5. LCD Back Light.
  6. Indicators.
  7. Illuminations.
  8. Mobile phones.
  9. General use.





Package Dimension:



1.20mm Height Top Side View LED / White Brightest Led Chip 0



Part No. Chip Material Lens Color Source Color
DL-TOP020W65-1W120 InGaN Yellow Diffused White















Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 95 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Derating Linear From 25℃   0.3 mA/℃
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld

Reflow Soldering: 260℃ for 5 Seconds

Hand Soldering: 350℃ for 3 Seconds



Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 2200 2800 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
Chromaticity Coordinates x --- 0.31 ---   IF=20mA (Note 3)
y --- 0.32 ---
Forward Voltage VF 2.80 3.20 3.40 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V




Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.



Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

1.20mm Height Top Side View LED / White Brightest Led Chip 1

CIE Chromaticity Diagram:

1.20mm Height Top Side View LED / White Brightest Led Chip 2



hromaticity Coordinates Specifications for Bin Rank:

BIN Code X Y BIN Code X Y BIN Code X Y
G1 0.3099 0.3073 G2 0.3149 0.3158
0.3149 0.3158 0.3199 0.3243
0.3195 0.3136 0.3245 0.3221
0.3145 0.3051 0.3195 0.3136





















Reel Dimensions:

1.20mm Height Top Side View LED / White Brightest Led Chip 3





Carrier Tape Dimensions:

Loaded quantity 3000/4000PCS per reel.



1.20mm Height Top Side View LED / White Brightest Led Chip 4
