1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip

1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip
1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip 1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip 1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip

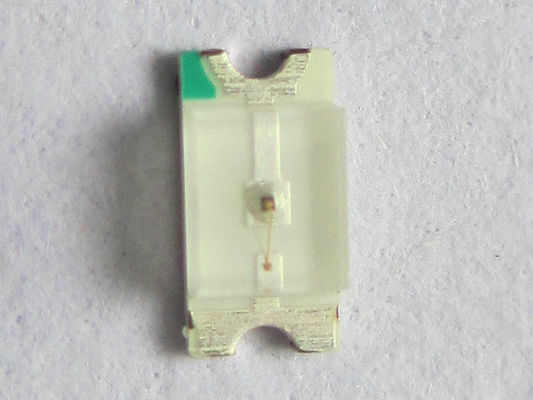

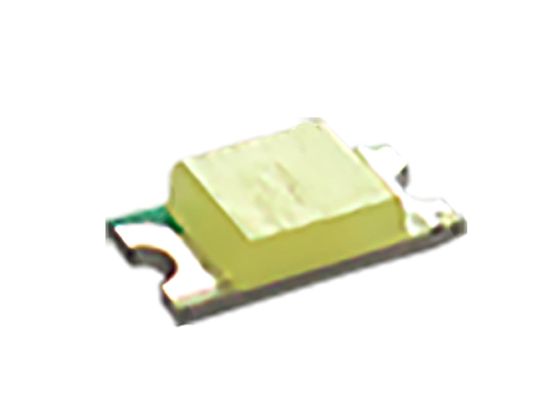

Large Image :  1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB1206W80-B
Payment & Shipping Terms:
Minimum Order Quantity: 4000pcs
Price: US$ 0.03-0.033 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: 1206 Package White LED Package: 1206 Package 1.Package In 8mm Tape On 7″ Diameter Reel.
Emitted Color: White Chip Material: InGaN
Lens Type: Yellow Diffused Forward Voltage @20ma: 3.0-3.3v
Luminous Intensity: 750-1000mcd Viewing Angle: 120 Deg
Forward Current: 25mA Power Dissipation: 95mW
High Light:

side emitting led

,

led side emitting

1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip



DL-PCB1206W80-B.pdf




Features:

  1. Package in 8mm tape on 7″ diameter reel.
  2. Compatible with automatic placement equipment.
  3. Compatible with infrared and vapor phase reflow solder process.
  4. Mono-color type.
  5. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The 1206 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications, etc.


Applications:

  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. General use.



Part No. Chip Material Lens Color Source Color
DL-PCB1206W80-B InGaN Yellow Diffused White


Absolute Maximum Ratings at Ta=25℃


Parameters Symbol Max Unit
Power Dissipation PD 95 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 800 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 750 1000 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
Chromaticity Coordinates x --- 0.30 ---   IF=20mA (Note 3)
y --- 0.31 ---
Forward Voltage VF 3.00 3.30 --- V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V



Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

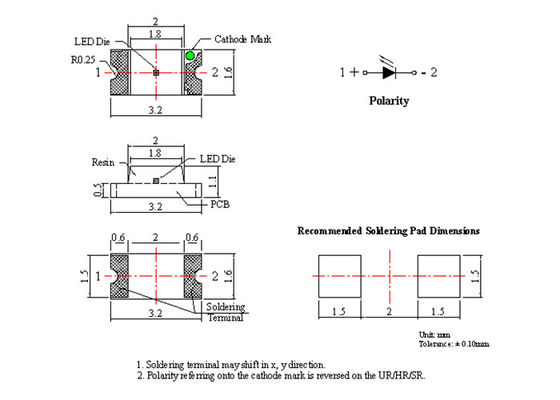

​1206 SMD LED Package Dimension:
1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip 0

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)

1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip 1


Reel Dimensions:
1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip 2


Carrier Tape Dimensions:
Loaded quantity 3000/4000PCS per reel.

1.1mm SMT SMD 1206 Package white Chip LED high brightness ir led Side View LED 0402 0603 0805 1206 Chip 3
HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines,which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
