Single Digit Numeric 7 Segment LED Displays for Instrument panels

Single Digit Numeric 7 Segment LED Displays for Instrument panels
Single Digit Numeric 7 Segment LED Displays for Instrument panels Single Digit Numeric 7 Segment LED Displays for Instrument panels Single Digit Numeric 7 Segment LED Displays for Instrument panels

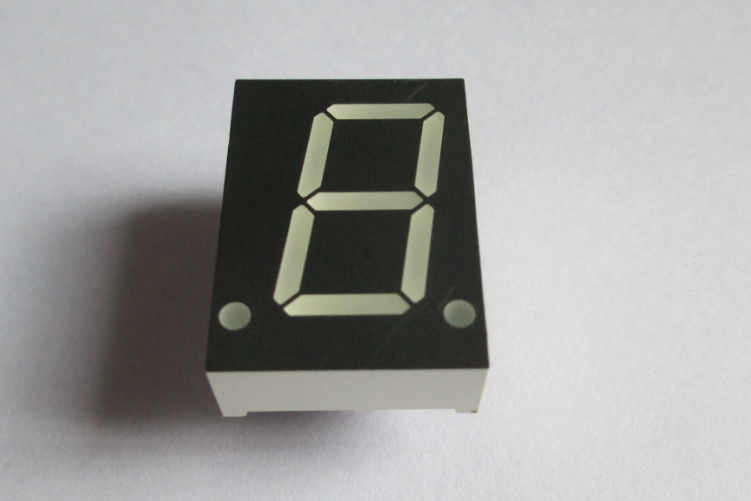

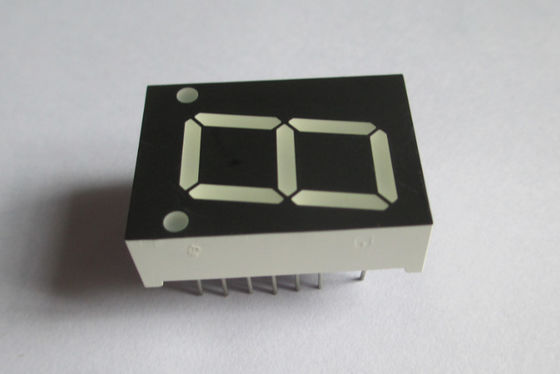

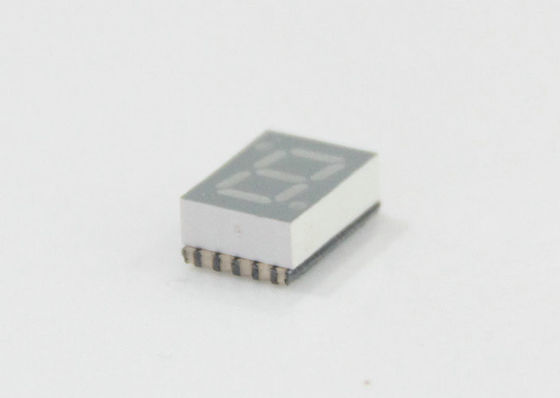

Large Image :  Single Digit Numeric 7 Segment LED Displays for Instrument panels

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL1-361XBB
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: US$ 0.11-0.15 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 10-15 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 8,000,000pcs per Day
Detailed Product Description
Product Name: LED Displays Package: 0.36 Inch
Emitted Color: Blue Peak Emission Wavelength: 465-470nm
Chip Material: InGaN Face Color: Black Surface
Forward Voltage @20ma: 3.0-3.3V Luminous Intensity: 8-10mcd
High Light:

brightest smd led chip

,

led bar display

Single Digit Numeric 7 Segment LED Displays for Instrument panels



Features:

  1. 0.36″ (inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.



Descriptions:

  1. The DL1-361 series is a lager 9.10 mm (0.36″) high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.



Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.





Device Selection Guide:



Model No. Chip Material Source Color Description
DL1-361ABB InGaN Blue Common Anode
DL1-361CBB Blue Common Cathode






Package Dimension:

Single Digit Numeric 7 Segment LED Displays for Instrument panels 0

             DL1-361ABB                                   DL1-361CBB

Single Digit Numeric 7 Segment LED Displays for Instrument panels 1



Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 100 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃   0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 1.5 2.2 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
Peak Emission Wavelength λp --- 468 --- nm IF=20mA
Dominant Wavelength λd --- 470 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
Forward Voltage VF --- 3.2 4.0 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V




Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.





Typical Electrical / Optical Characteristics Curves


(25℃ Ambient Temperature Unless Otherwise Noted)
