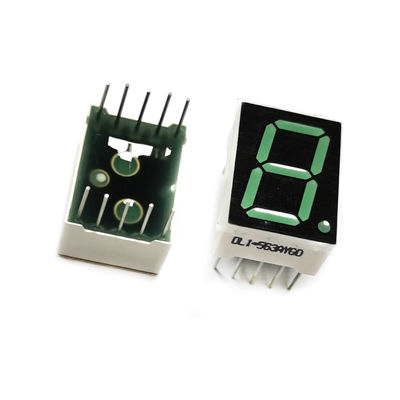

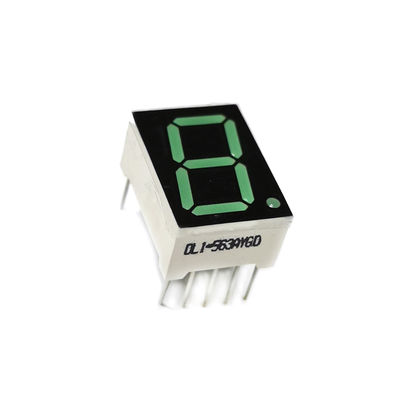

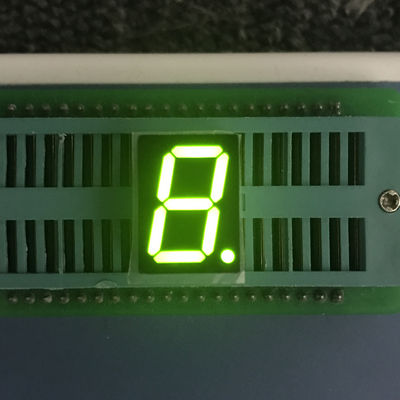

8mcd 575nm 0.56 Inch Single Digit Numeric Displays

8mcd 575nm 0.56 Inch Single Digit Numeric Displays
8mcd 575nm 0.56 Inch Single Digit Numeric Displays

Large Image :  8mcd 575nm 0.56 Inch Single Digit Numeric Displays

Product Details:
Place of Origin: China (mainland)
Certification: ISO9001:2008/ROHS
Model Number: DL1-563XYGD
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: US$ 0.15-0.3per unit (Pieces) depends on the quantity
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 7-10 working days after payment received
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 5,000,000pcs per Day
Detailed Product Description
Product Name: DIP LED Display Package: 0.56 Inch
Emitted Color: Yellow Green Peak Emission Wavelength: 575nm
Luminous Intensity (Per Segment): 5-8mcd Forward Voltage (Per Segment): 1.8-3.0v
Size: 12.4*17.1*8mm Datasheet: Update
High Light:

575nm Single Digit Numeric Displays


8mcd Single Digit Numeric Displays


0.56 Inch Single Digit Display

Datasheet: DL1-563XYGD.pdf             Emitting color: yellow green



0.56 Inch Single Digit Numeric Displays

Source color can be customed.



  1. 0.56″ (inch) digit height.
  2. Packaged in tape and reel for SMT manufacturing.
  3. Design flexibility (common cathode and anode).
  4. Categorized for luminous intensity.
  5. The thickness is thinness than tradition display.
  6. The product itself will remain within RoHS compliant Version.



  1. The DL1-563 series is a lager 14.20mm(0.56″) high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.



  1. Suitable for indoor use.
  2. Audio equipment.
  3. Set top box.
  4. Game machine.
  5. Channel indicator of TV.



8mcd 575nm 0.56 Inch Single Digit Numeric Displays 0


Device Selection Guide:


Model No. Chip Material Source Color Description
DL1-563AYGD GaAlAs  yellow green Common Anode
DL1-563CYGD  yellow green Common Cathode

Absolute Maximum Ratings at Ta=25℃


Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 75 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃   0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃



Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 13 26 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
Peak Emission Wavelength λp --- 565 --- nm IF=20mA
Dominant Wavelength λd --- 570 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 1.80 2.60 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V



  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



For more details, please contact us.


Contact Details

Contact Person: Mr. Chen

Tel: 86-755-82853859

Fax: 86-755-83229774

Send your inquiry directly to us (0 / 3000)
