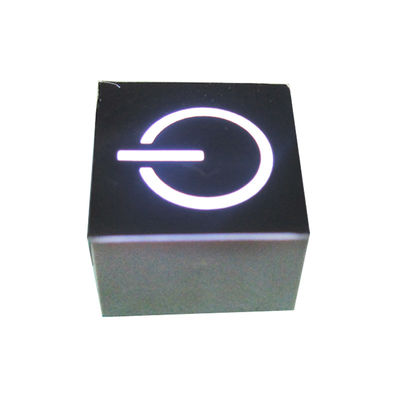

10.2×10.2mm Light Bar Display
Features:
1. Industrial standard size.
2. Low power consumption.
3. Categorized for luminous intensity.
4. The product itself will remain within RoHS compliant Version.
Descriptions:

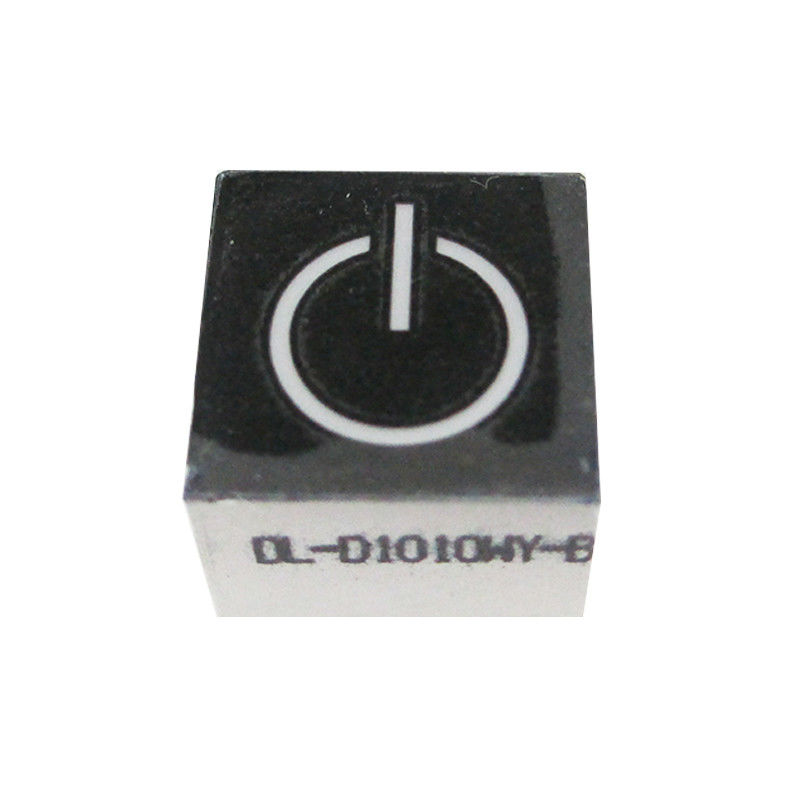

1. TheDL-D1010WY-B series is 10.2×10.2mm light bar display, designed for viewing distances up to 7
meters.
2. These devices are made with Color segments and white surface.
Applications:
1. Audio equipment.
2. Instrument panels.
3. Digital read out display.
Device Selection Guide:
| part No. |
Chip Material |
Face Color |
Source Color |
|
DL-D1010WY-B |
InGaN |
Black |
White |
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings at Ta=25℃
| Parameters/ Per LED Chip | Symbol | Max. | Unit |
| Power Dissipation | PD | 105 | mW |
|
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA |
| Forward Current | IF | 25 | mA |
| Dating Linear From 50℃ | 0.4 | mA/℃ | |
| Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | Topr | -40℃ to +80℃ | |
| Storage Temperature Range | Tstg | -40℃ to +85℃ | |
| Soldering Temperature | Tsld | 260℃ for 5 Seconds | |
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity | Iv | 20.0 | 50.0 | --- | mcd | IF=20mA (Note 1) |
| Luminous Intensity Matching Ratio (Segment To Segment) | Iv-m | --- | --- | 2:1 | IF=10mA | |
| Chromaticity Coordinates | X | --- | 0.30 | --- | nm | IF=20mA |
| Y | --- | 0.31 | --- | |||
| Forward Voltage | VF | --- | 3.3 | 3.6 | V | IF=20mA |
| Reverse Current | IR | --- | --- | 50 | µA | VR=5V |
Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
