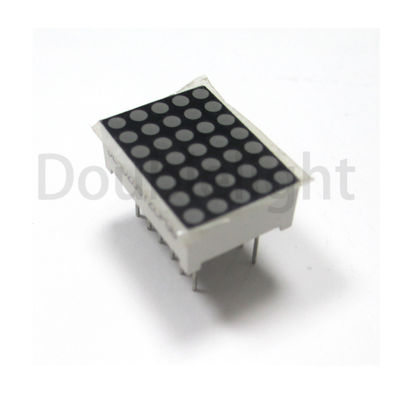

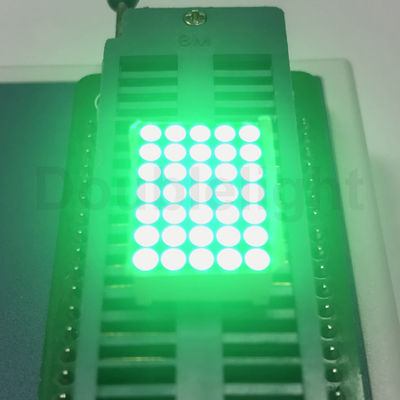

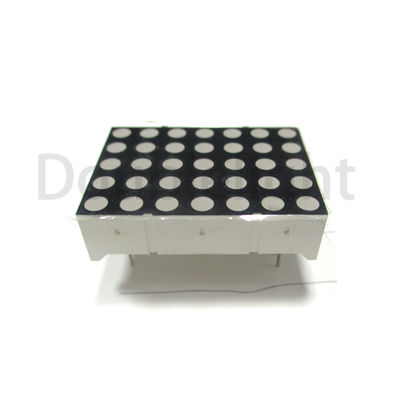

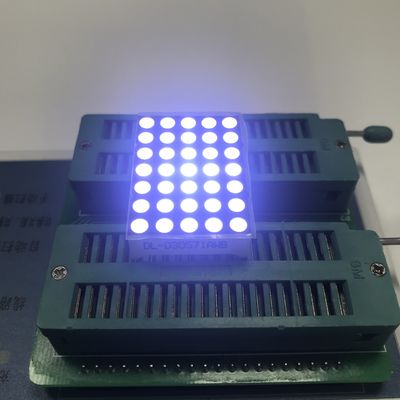

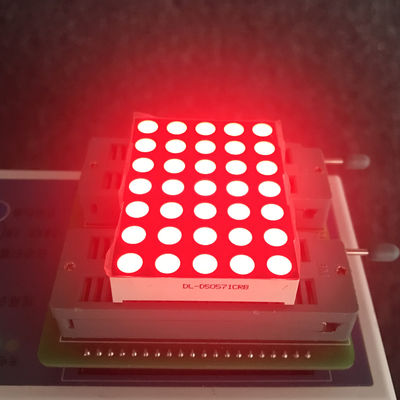

35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix

35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix
35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix 35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix 35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix 35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix 35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix 35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix

Large Image :  35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-D20571XPGB
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: usd0.66-0.75
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 20 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 1,000,000pcs per Day
Detailed Product Description
Product Name: Dot Matrix LED Displays Emitted Color: Pure Green
Peak Emission Wavelength: 520-525nm Chip Material: InGaN
Face Color: Black Surface Forward Voltage @20ma: 2.8-3.4V
Luminous Intensity: 80mcd Datasheet: Update
High Light:

led bar display

,

led seven segment display

Datasheet:DL-D20571XPGB.pdf             Emitting color: Pure Green



1.9mm (0.7") 5×7 Super Bright Green Dot Matrix LED Displays

Features:

  1. 0.7inch (1.9mm) Matrix height.
  2. Colors: Super Bright Green.
  3. Flat package and light weight.
  4. Easy assembly.
  5. High quality and low cost.
  6. High reliable and intensity.
  7. Low power requirement.
  8. The product itself will remain within RoHS compliant version.



Descriptions:

  1. The DL-D20571 series is a large emitting areaLED sources configured in a 35 dots 5*7 matrix array.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white dots and black surface.



Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.

35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix 0

Model No.: DL-D20571XPGB


Device Selection Guide:


Model No. Chip Material Face Color Descriptions
DL-D20571APGB GaAlAs Black Row Anode
DL-D20571CPGB Black Row Cathode



Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 60 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃   0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 35.0 86.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
Peak Emission Wavelength λp --- 520 --- nm IF=20mA
Dominant Wavelength λd --- 525 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 15 --- nm IF=20mA
Forward Voltage VF --- 1.80 3.40 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V




Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



LED Display Series,  following is another kind of products, 64 dots.

35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix 1



For more details, please contact us.
