Single Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5V

Single Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5V

    • Single Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5V
    • Single Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5V
    • Single Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5V
    • Single Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5V
  • Single Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5V

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL1-1801XPGB

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000pcs
    Price: US$ 0.150-0.3per unit (Pieces) depends on the quantity
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 7-10 working days after payment received
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 5,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 1.8 Inch Single Digit 7 Segment Display Package: 1.8 Inch 7 Segment
    Emitted Color: Pure Green Peak Emission Wavelength: 525nm
    Face Color: Black Surface Forward Voltage @20ma: 9.0-10.5V
    Luminous Intensity: 80-150mcd Screen Dimension: 56*38mm
    Brightness: High Brightness Led Chip: InGan

    Datasheet:  DL1-1801XPGB.pdf

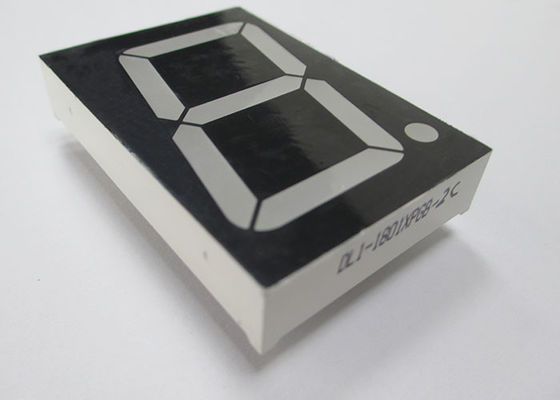

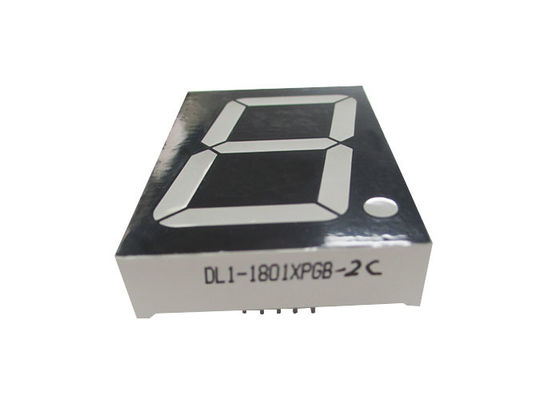

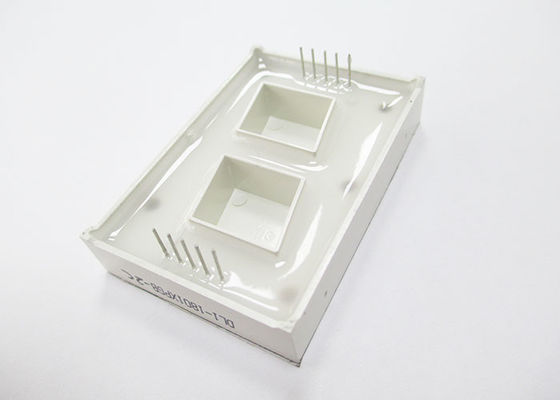

     This is 1.8 inch Single digit 7 segment display 10 pin black face Common Anode Pure Green 1 digit led display




    Features:

    1. 1.80″ (inch) digit height.
    2. Excellent segment uniformity.
    3. Sold state reliability
    4. Industrial standard size
    5. Low power consumption
    6. The product itself will remain within RoHS compliant Version.


    Descriptions:

    1. The DL1-1801XXX series is a lager 45.0mm (1.80″) high seven segment display designed for viewing distances up to 7 meters.
    2. These displays provide excellent reliability in bright ambient light.
    3. These devices are made with white segments and black surface.


    Applications:

    1. Audio equipment.
    2. Instrument panels.
    3. Digital read out display.


    Package Dimension:

    Single Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5V
    Single Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5VSingle Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5V

    Notes:

    1. All dimensions are in millimeters (inches).
    2. Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
    3. Specifications are subject to change without notice.


    Device Selection Guide:






    Model No. Chip Material Source Color Description
    DL1-1801APGB InGaN Pure Green Common Anode
    DL1-1801CPGB Pure Green Common Cathode

    Absolute Maximum Ratings at Ta=25




    Parameters Symbol Max. Unit
    Power Dissipation Per Segment PD 360 mW

    Peak Forward Current Per Segment

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current Per Segment IF 25 mA
    Dating Linear From 50℃   0.4 mA/℃
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds



    Electrical Optical Characteristics at Ta=25℃
    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity Iv 80.0 150.0 --- mcd IF=20mA (Note 1)
    Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
    Peak Emission Wavelength λp --- 525 --- nm IF=20mA
    Dominant Wavelength λd --- 518 --- nm IF=20mA (Note 2)
    Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
    Forward Voltage VF --- 9.0 10.5 V IF=20mA
    Reverse Current IR --- --- 50 µA VR=5V



    Notes:

    1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

    Single Digit 7 Segment Display 10 Pin Black Face Common Anode 1.8 Inch 9.0-10.5V
