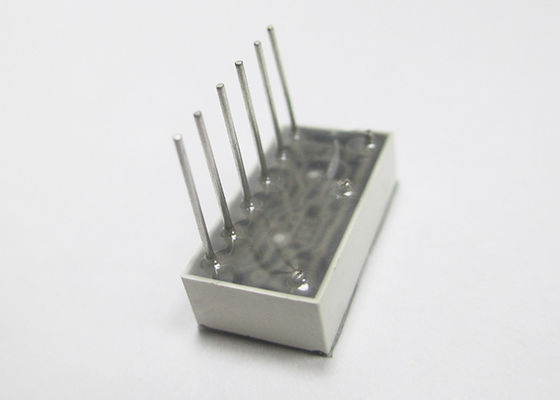

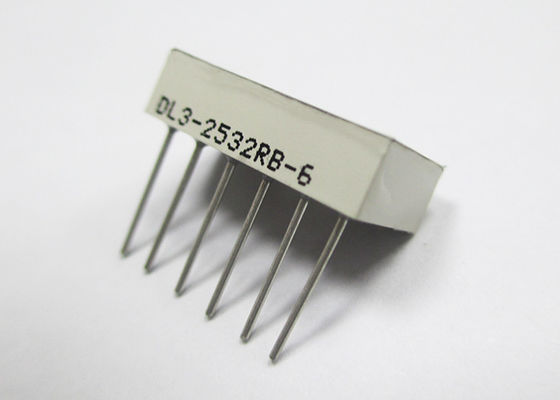

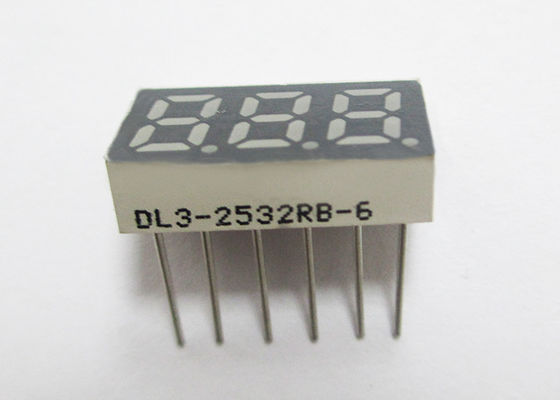

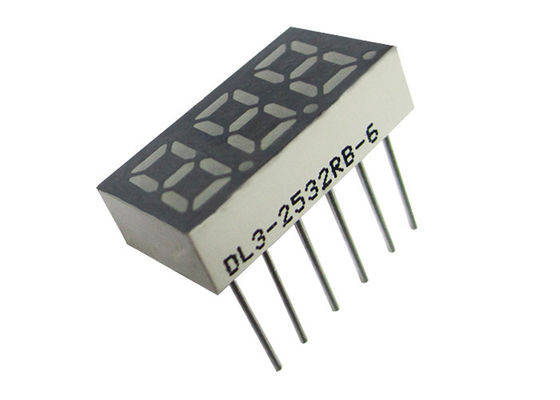

6 Pin Triple 3 Digit 7 Segment Led Display Miniature Digital Tube Panels 0.25 Inch

Name: 6 Pin Triple 3 Digit 7 Segment Led Display Miniature Digital Tube Panels 0.25 Inch
Brand: DOUBLE LIGHT
SKU: DL3-2532RB-6
Price: 0.27 USD
Availability: InStock
Rating: 5 (152 reviews)

Large Image : 6 Pin Triple 3 Digit 7 Segment Led Display Miniature Digital Tube Panels 0.25 Inch

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL3-2532RB-6

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	US$ 0.27-0.45. per unit (Pieces)
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	7-10 working days after payment received
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	2,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	3 Digit 7 Segment Led Display	Package:	0.25 Inch
Emitted Color:	Super Bright Red	Peak Emission Wavelength:	640nm
Chip Material:	GaAlAs	Face Color:	Black Surface
Forward Voltage @20ma:	1.8-2.4V	Luminous Intensity:	40-60mcd
Power Dissipation Per Segment:	65mW	Forward Current Per Segment:	25mA
High Light:	led bar display , led seven segment display

0.25 inch 3 digit 7 Segment led display 6 Pin Triple Digit Super Red led numeric display miniature Digital Tube panels

Datasheet: DL3-2532RB-6.pdf Emitting color: Super bright red

Features:

0.25″ (inch) digit height.
Excellent segment uniformity.
Sold state reliability.
Industrial standard size.
Low power consumption.
The product itself will remain within RoHS compliant Version.

Descriptions:

The DL3-251 series is a lager 6.2mm (0.24″) high seven segments display designed for viewing distances up to 7 meters.
These displays provide excellent reliability in bright ambient light.
These devices are made with white segments and black surface.

Applications:

Audio equipment.
Instrument panels.
Digital read out display.

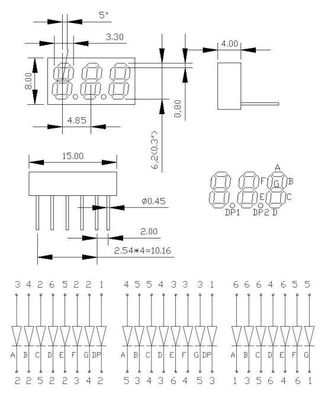

Package Dimension:

Device Selection Guide:

Model No.	Chip Material	Source Color
DL3-2532RB-6	GaAlAs	Super Bright Red

Notes:

All dimensions are in millimeters (inches).
Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation Per Segment	PD	65	mW
Peak Forward Current Per Segment (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	60	mA
Forward Current Per Segment	IF	25	mA
Dating Linear From 50℃		0.4	mA/℃
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	Iv	40.0	60.0	---	mcd	IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment)	I_v-m	---	---	2:1		IF=10mA
Peak Emission Wavelength	λp	---	640	---	nm	IF=20mA
Dominant Wavelength	λd	---	630	---	nm	IF=20mA (Note 2)
Spectral Line Half-Width	△λ	---	20	---	nm	IF=20mA
Forward Voltage	VF	---	1.80	2.40	V	IF=20mA
Reverse Current	IR	---	---	50	µA	VR=5V

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
