SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module

SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module
SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module

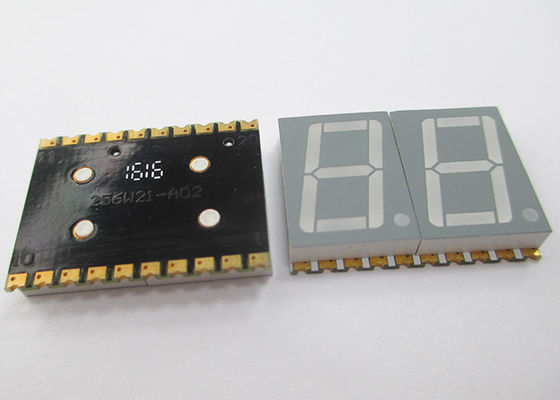

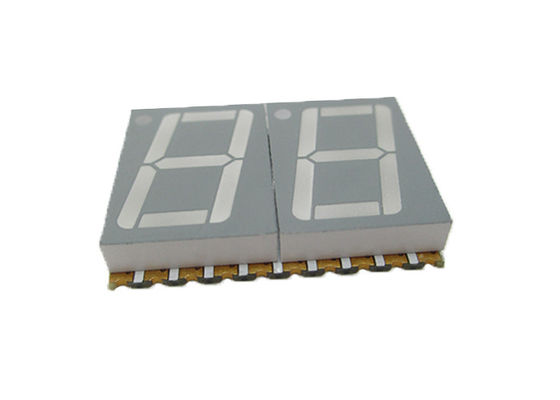

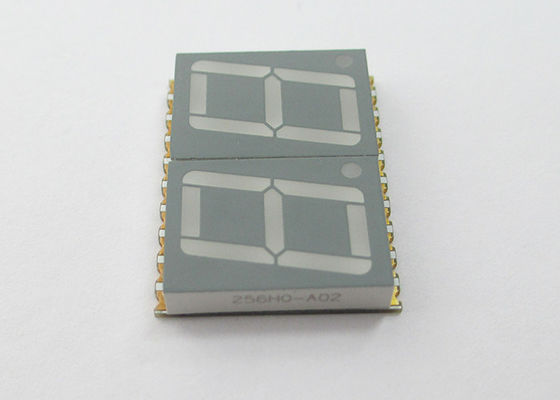

Large Image :  SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL2-PCB561XXX
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 10-15 working days after received your payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 5,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: 0.56 Inch 7 Segment LED Display Package: Total Unit Per Reel Is 500PCS
Emitted Color: Red/Yellow Green/Blue/White Face Color: Gray Surface
Forward Current Per Segment: 25mA Power Dissipation Per Segment: 60-100mW
High Light:

led bar display

,

led seven segment display

0.56 inch Dual Digit Numeric SMD 7 Segment Led Display PCB Gray surface Led



Know more details,please downlaod specifications:DL2-PCB561XXX.pdf

  • Features:
  1. 0.56" digit height
  2. Packing in tape and reel for SMT manufacturing
  3. Design flexibility (common cathode and anode)
  4. Categorized for luminous intensity
  5. Thickness is thinness than tradition display
  6. Product itself will remain within RoHS Directive-compliant version
  • Descriptions:
  1. SMD type is much smaller than tradition type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained
  2. These devices are made with white segments and gray surface
  • Applications:
  1. Suitable for indoor use
  2. Audio equipment
  3. Set top box
  4. Game machine
  5. Channel indicator of TV



  • Package Dimension:

SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module 0

Notes:

  1. All dimensions are in millimeters (inches).
  2. Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
  3. Specifications are subject to change without notice.





  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 60-100 mW

Peak Forward Current Per Segment
(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃   0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

  • Electrical Optical Characteristics at Ta=25℃



Source Color odel Model No. VF(V) IR(µA) IV(mcd) Λd(nm)
Min Typ Max   Min Typ Max Min Typ Max
IF=10mA VR=5V IF=10mA
Red DL2-PCB561XRA   1.7 2.4 50 8.6 18   640 650 660
Yellow Green DL2-PCB561XGA   1.8 2.5 50 5 10   568 572 575
Blue DL2-PCB561BXBA   2.8 3.5 50 11 20   460 467 475
White DL2-PCB561XWA   2.7 3.3 50 25 50   X:0.30 Y:0.31

Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
  • The Products In The Reel Of Direction

SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module 1

  • Label Direction & Content In The Roll

Total unit per reel is 500PCS.

SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module 2

  • USER FEED DIRECTION

SMD 7 Segment LED Displays 0.56 Inch Dual Digit Numeric PCB Gray Surface Module 3
