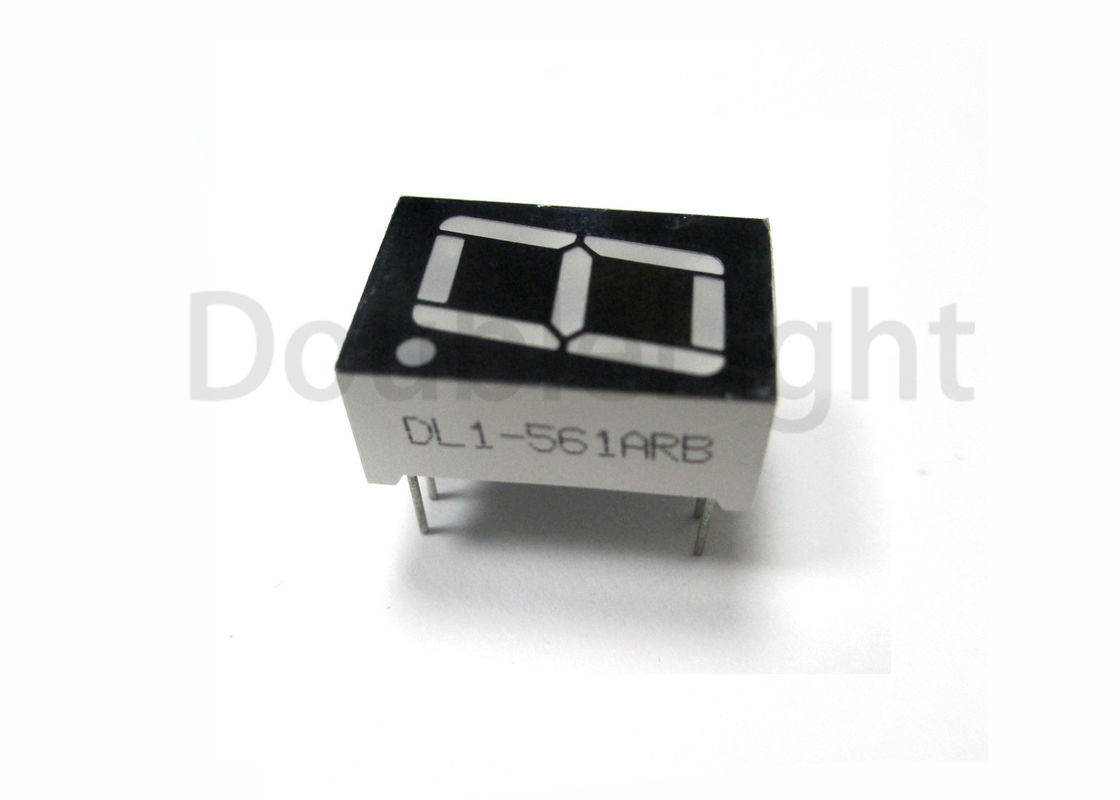

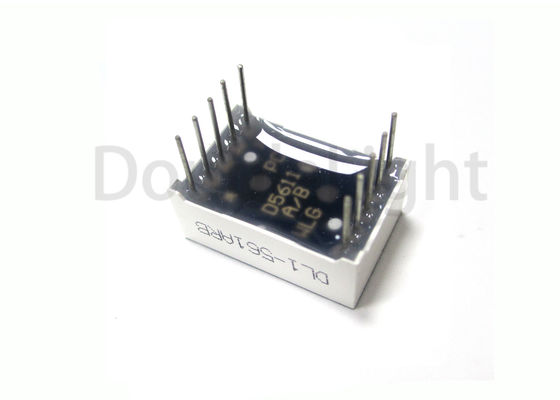

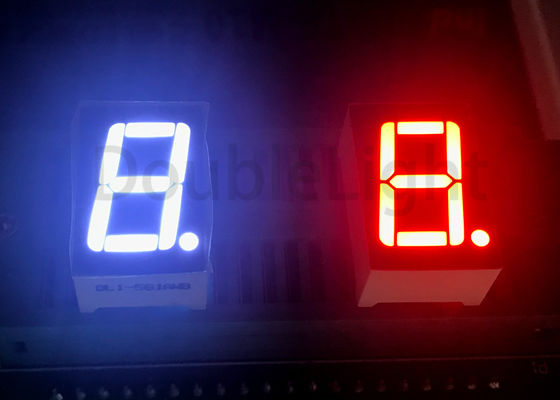

0.56 Inch Single Digit Display Peak Emission Wavelength 640/660nm Black Surface

Name: 0.56 Inch Single Digit Display Peak Emission Wavelength 640/660nm Black Surface
Brand: DOUBLE LIGHT
SKU: DL1-561XRB
Price: 0.128 USD
Availability: InStock
Rating: 4.6 (112 reviews)

Large Image : 0.56 Inch Single Digit Display Peak Emission Wavelength 640/660nm Black Surface

Product Details:

Place of Origin:	China (mainland)
Brand Name:	DOUBLE LIGHT
Certification:	ISO9001:2008/ROHS
Model Number:	DL1-561XRB

Payment & Shipping Terms:

Minimum Order Quantity:	2000pcs
Price:	US$ 0.128-0.3per unit (Pieces) depends on the quantity
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	7-10 working days after payment received
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	5,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	DIP LED Display	Package:	0.56 Inch
Emitted Color:	Red	Peak Emission Wavelength:	660nm
Luminous Intensity (Per Segment):	5-8mcd	Forward Voltage (Per Segment):	1.8-3.0v
Size:	12.6198mm	Datasheet:	Update
High Light:	led number display , single digit led display

Datasheet: DL1-561XRB.pdf Emitting color: Super bright red

DL1-561XWA.pdf Emitting color: White

0.56 Inch Single Digit Numeric Displays

Source color can be customed.

Features:

0.56″ (inch) digit height.
Packaged in tape and reel for SMT manufacturing.
Design flexibility (common cathode and anode).
Categorized for luminous intensity.
The thickness is thinness than tradition display.
The product itself will remain within RoHS compliant Version.

Descriptions:

The DL1-561 series is a lager 14.20mm(0.56″) high seven segments display designed for viewing distances up to 7 meters.
These displays provide excellent reliability in bright ambient light.
These devices are made with white segments and black surface.

Applications:

Suitable for indoor use.
Audio equipment.
Set top box.
Game machine.
Channel indicator of TV.

0.56 Inch Single Digit Display Peak Emission Wavelength 640/660nm Black Surface 0

Device Selection Guide:

Model No.	Chip Material	Source Color	Description
DL1-561ARB	GaAlAs	Super Bright Red	Common Anode
DL1-561CRB	GaAlAs	Super Bright Red	Common Cathode

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation Per Segment	PD	60	mW
Peak Forward Current Per Segment (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Forward Current Per Segment	IF	25	mA
Dating Linear From 50℃		0.4	mA/℃
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	Iv	3.5	6.0	---	mcd	IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment)	I_v-m	---	---	2:1		IF=10mA
Peak Emission Wavelength	λp	---	660	---	nm	IF=20mA
Dominant Wavelength	λd	---	640	---	nm	IF=20mA (Note 2)
Spectral Line Half-Width	△λ	---	20	---	nm	IF=20mA
Forward Voltage	VF	---	1.80	2.40	V	IF=20mA
Reverse Current	IR	---	---	50	µA	VR=5V

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

For more details, please contact us.
