Product Details:
Payment & Shipping Terms:
|
| Product Name: | 8.8×8.8mm Light Bar Display | Package: | Square Indicator LED |
|---|---|---|---|
| Emitted Color: | Red、Blue、Yellow Green、Pure Green、Amber | Peak Emission Wavelength: | 660nm、468nm、570nm、525nm、610nm |
| Face Color: | White Surface | Size: | 8.8*8.8mm |
| Highlight: | led number display,single digit led display |
||

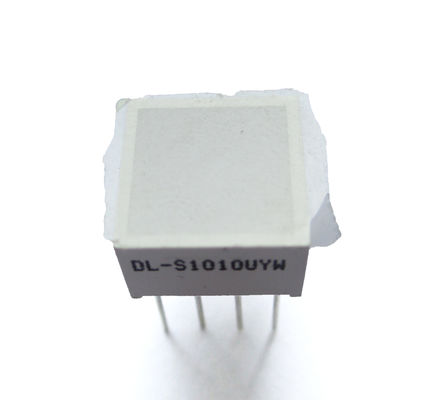

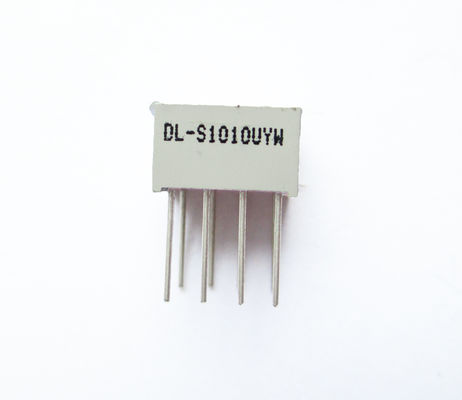

8.8*8.8mm Square LED Display Light Bar Yellow Color Indicator with milk diffused len color
| Part No. | Chip Material | Face Color | Source Color |
| DL-S1010UYW | GaAlAs | white | Super Yellow |
| Parameters | Symbol | Max. | Unit |
| Power Dissipation | PD | 60 | mW |
|
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA |
| Forward Current | IF | 25 | mA |
| Dating Linear From 50℃ | 0.4 | mA/℃ | |
| Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | Topr | -40℃ to +80℃ | |
| Storage Temperature Range | Tstg | -40℃ to +85℃ | |
| Soldering Temperature | Tsld | 260℃ for 5 Seconds | |
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity | Iv | -- | 50 | --- | mcd | IF=20mA (Note 1) |
| Peak Emission Wavelength | λp | --- | 588 | --- | nm | IF=20mA |
| Dominant Wavelength | λd | --- | 590 | --- | nm | IF=20mA (Note 2) |
| Spectral Line Half-Width | △λ | --- | 20 | --- | nm | IF=20mA |
| Forward Voltage | VF | --- | 1.80 | 2.40 | V | IF=20mA |
| Reverse Current | IR | --- | --- | 50 | µA | VR=5V |
Company intorduction:
HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
