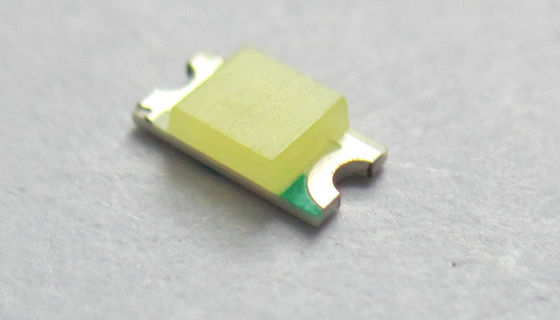

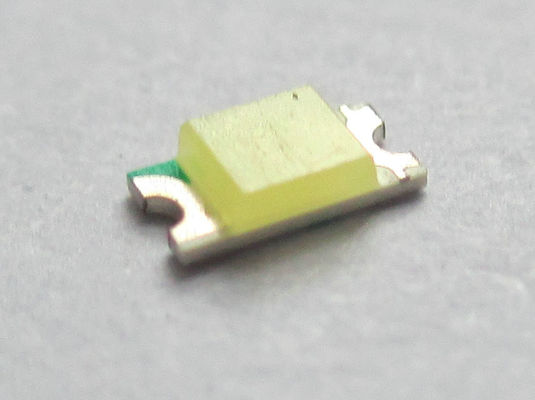

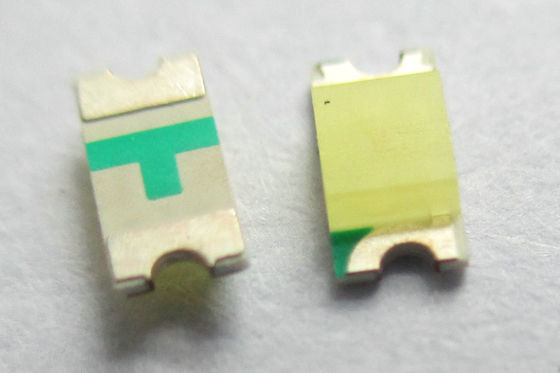

1206 Side View Led Smd Chip White Chip LED Yellow Diffused 6000K For Backlighting

1206 Side View Led Smd Chip White Chip LED Yellow Diffused 6000K For Backlighting
1206 Side View Led Smd Chip White Chip LED Yellow Diffused 6000K For Backlighting 1206 Side View Led Smd Chip White Chip LED Yellow Diffused 6000K For Backlighting 1206 Side View Led Smd Chip White Chip LED Yellow Diffused 6000K For Backlighting

Large Image :  1206 Side View Led Smd Chip White Chip LED Yellow Diffused 6000K For Backlighting

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB1206W80
Payment & Shipping Terms:
Minimum Order Quantity: 3000PCS
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: 1206 Package White Chip LED Package: 1206 Package
Emitted Color: White Chromaticity Coordinates: Chromaticity Coordinates X:0.30 Y:0.31
Model Number: DL-PCB1206W80 Lens Color: Yellow Diffused
Forward Voltage @60ma: 3.0-3.3v Luminous Flux: 350-450mcd
Viewing Angle: 120 Deg Power Dissipation: 95mW
High Light:

side emitting led

,

led side emitting

1.10mm Height 1206 Side View Led Smd Chip White Chip LED Yellow Diffused 6000K For Backlighting

1206 Package White SMD LED

  • Features:
  1. Package in 8mm tape on 7″ diameter reel.
  2. Compatible with automatic placement equipment.
  3. Compatible with infrared and vapor phase reflow solder process.
  4. Mono-color type.
  5. The product itself will remain within RoHS compliant Version.
  • Descriptions:
  1. The 1206 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications, etc.
  • Applications:
  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. General use.

1206 Package LED Package Dimension:
1206 Side View Led Smd Chip White Chip LED Yellow Diffused 6000K For Backlighting 0


Part No.Chip MaterialLens ColorSource Color
DL-PCB1206W80InGaN  Yellow Diffused

 White







Absolute Maximum Ratings at Ta=25


ParametersSymbolMax.Unit
Power DissipationPD95mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP100mA
Forward CurrentIF25mA
Reverse VoltageVR5V
Electrostatic Discharge (HBM)ESD800V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25

ParametersSymbolMin.Typ.Max.UnitTest Condition
Luminous Intensity *IV350550---mcdIF=20mA (Note 1)
Viewing Angle *2θ1/2---120---DegIF=20mA (Note 2)
Chromaticity Coordinatesx---0.30--- IF=20mA (Note 3)
y---0.31---
Forward VoltageVF3.03.3---VIF=20mA
Reverse CurrentIR------10µAVR=5V


Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.


Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
1206 Side View Led Smd Chip White Chip LED Yellow Diffused 6000K For Backlighting 1
CIE Chromaticity Diagram:
1206 Side View Led Smd Chip White Chip LED Yellow Diffused 6000K For Backlighting 2


Chromaticity Coordinates Specifications for Bin Rank:

(IF=20mA, Ta=25℃)

BIN CodeXYBIN CodeXYBIN CodeXY
G10.44990.4273G20.45490.4358
0.45490.43580.45990.4443
0.45950.43360.46450.4421
0.45450.42510.45950.4336

Notes:

  1. Color coordinates measurement allowance is ± 0.01.
  2. One delivery will include up to two consecutive color ranks and three luminous intensity ranks of the products the quantity-ratio of the ranks is decided by DUOBLE LIGHT
