Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1W&3W&10W High Power 3535 White LED | Emitted Color: | White Color LED |
|---|---|---|---|
| Test Condition: | IF=350ma | Viewing Angle: | 120 Deg |
| Luminous Flux: | 120lm | Forward Voltage: | 2.8-3.8v |
| Chip Material: | AllnGaP | Color Temperature: | 5500-6500k |
| High Light: | light emitted diode,light emission diode |
||

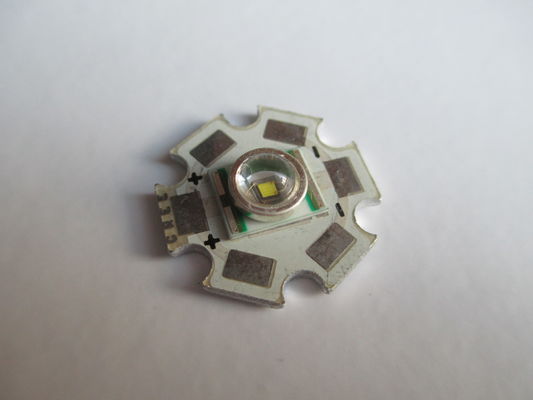

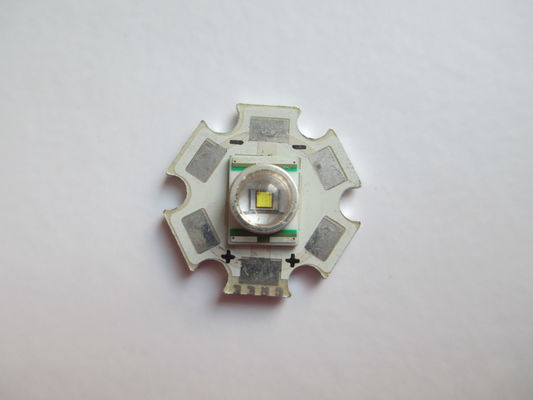

10w High Power white LED Chip LED emitting diode 5000k-10000k xr-e 114lm with pcb board for medical light
1. Small package with high efficiency
2. Long operating life.
3. Available in white, green, blue, red, yellow, Amber
4. Typical color temperature: 5500-6500 K.
5. View angle: 120°.
6. Low voltage DC operated.
7. The product itself will remain within RoHS compliant Version.
8. ESD protection.
1. Reading lights (car, bus, aircraft).
2. Portable (flashlight, bicycle).
3. Mini_accent/Uplighters/Downlighters/Orientation.
4. Bollards/Security/Garden.
5. Cove/Undershelf/Task.
6. Automotive rear combination lamps.
7. Traffic signaling/Beacons/ Rail crossing and Wayside.
8. Indoor/Outdoor Commercial and Residential Architectural.
9. Edge_lit signs (Exit, point of sale).
10. LCD Backlights/Light Guides.
| Parameters | Symbol | Max. | Unit |
| Power Dissipation | PD | 3000 | mW |
|
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 1000 | mA |
| Forward Current | IF | 350/700 | mA |
| Reverse Voltage | VR | 5 | V |
| Electrostatic Discharge (HBM) | ESD | 1000 | V |
| Operating Temperature Range | Topr | -10℃ to +70℃ | |
| Storage Temperature Range | Tstg | -20℃ to +80℃ | |
| Soldering Temperature | Tsld | 260℃ for 5 Seconds | |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Flux | Φ | 100 | 120 | 130 | lm | If=350mA (Note 1) |
| 200 | 220 | 240 | lm | If=700mA (Note 1) | ||
| Viewing Angle | 2θ(1/2) | --- | 90 | --- | Deg | (Note 2) |
| Color Temperature | TC | 5500 | --- | 6500 | K | If=350/700mA |
| Forward Voltage | VF | 2.80 | 3.40 | 3.80 | V | If=350/700mA |
| Reverse Current | IR | --- | --- | 10 | µA | VR=5V |
