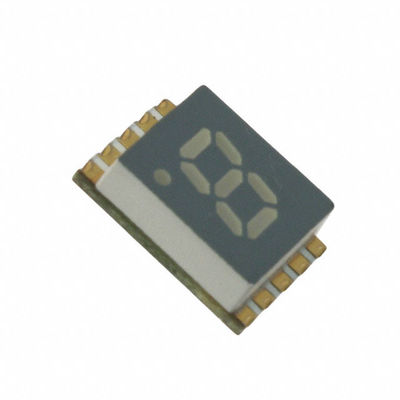

Single Digit Hyper Red SMD 7 Segment LED Displays 0.40" Black Surface Face color

Single Digit Hyper Red SMD 7 Segment LED Displays 0.40" Black Surface Face color

Single Digit Hyper Red SMD 7 Segment LED Displays 0.40" Black Surface Face color

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL1-PCB402XSRB

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 10-15 working days after received your payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 8,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: 7 Segment LED Display Package: 0.40 Inch
Emitted Color: Red Peak Emission Wavelength: 632nm
Chip Material: AlGaInP Face Color: Black Surface
Forward Voltage @20ma: 2.0V Luminous Intensity: 2-13mcd

DL1-PCB402XSRB.pdf

0.40" Single Digit Hyper Red SMD Displays 7 segment led display

  • Features:
  1. 0.40″(inch) digit height.

  2. Excellent segment uniformity.

  3. Sold state reliability.

  4. Industrial standard size.

  5. Low power consumption.

  6. The product itself will remain within RoHS compliant version.

  7. Low current operation.

  8. Easy mounting on P.C. board or sockets.

  9. Face color : black / gray .

  10. Polarity : common anode / cathode

  • Descriptions:
  1. The SMD type is much smaller than tradition type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. These devices are made with white segments and black surface.
  • Applications:
  1. Suitable for indoor use.
  2. Audio equipment.
  3. Set top box.
  4. Game machine.
  5. Channel indicator of TV.



Device Selection Guide:

Model No. Chip Material Source Color Description
DL1-PCB402CSRB AlGaInP Super Bright Red Common Anode
DL1-PCB402ASRB Super Bright Red Common Cathode




  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 60 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃   0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds




  • Electrical Optical Characteristics at Ta=25℃
Parameters
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Luminous Intensity
Iv
2.0
5.0
13.0
mcd
IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment)
Iv-m
---
---
2:1

IF=10mA
Peak Emission Wavelength
λp
---
632
---
nm
IF=20mA
Dominant Wavelength
λd
---
624
---
nm
IF=20mA (Note 2)
Spectral Line Half-Width
△λ
---
20
---
nm
IF=20mA
Forward Voltage
VF
1.5
2.00
2.40
V
IF=20mA
Reverse Current
IR
---
---
100
µA
VR=5V




Notes:
Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
