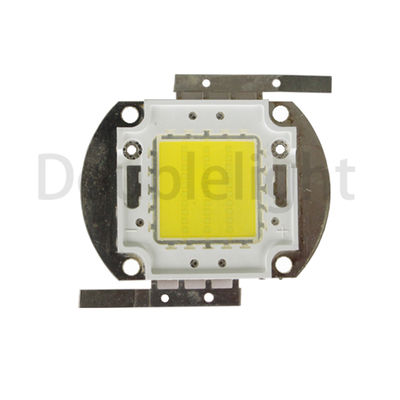

15W SMD Chip LED 2500-7000k warm white smd led High Power COB LED with 70-80 Ra Customize led light

    • 15W SMD Chip LED 2500-7000k warm white smd led High Power COB LED with 70-80 Ra Customize led light
    • 15W SMD Chip LED 2500-7000k warm white smd led High Power COB LED with 70-80 Ra Customize led light
  • 15W SMD Chip LED 2500-7000k warm white smd led High Power COB LED with 70-80 Ra Customize led light

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-COB15WXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 100PCS
    Price: US$ 0.012-0.015 per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: White High Power SMD LED Emitted Color: White
    Color Temperature: 2600-7000k Model Number: DL-COB15WXX
    Forward Voltage @60ma: 36-40v Luminous Flux: 2500-10000lm
    Power Dissipation: 15W Viewing Angle(°): 120 Degree
    Color Rendering Index(ra): 80RA Forward Current: 360mA

     15W SMD Chip LED 2500-7000k warm white smd led High Power COB LED with 70-80 Ra Customize led light

    Datasheet:DL-COB15Wxx .pdf



    •  Features

    1. Long operating life
    2. Highest flux
    3. Wide range of colours:2500K-7000K
    4. More energy efficient than incandescent and most halogen lamps
    5. Low voltage DC operated
    6. Instant light (less than 100ns)
    7. Fully dimmable
    8. No UV
    9. Superior ESD protection
    10. RoHS compliant

    •  Applications

    1. Commercial lighting
    2. Advertisement
    3. Architectural lighting
    4. Street lamps





    •  Package Dimension:

    15W SMD Chip LED 2500-7000k warm white smd led High Power COB LED with 70-80 Ra Customize led light




    • Absolute maximum ratings(Ta=25°C)
    Parameters Symbol Rating Units
    Power Dissipation Pd 15 W
    Forward Current If 360 mA
    Peak pulse Current Ifp 600 mA
    Reverse Voltage Vr 5 V
    Electrostatic Discharge ESD 4500(HBM) V
    Operating Temperature Topr -40°C~+85°C °C
    Storage Temperature Tstg -40°C~+100°C °C
    Soldering temperature Tsol 260±5°C(for 5sec) °C
    Manual Soldering Temperature TSOL 350±20°C For 3 Seconds °C

    • Opto-Electronical Specification
    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Flux Фv 2500 --- 10000 lm

    IF=360mA

    (Note 1)

    Viewing Angle 1/2 --- 120 --- Deg IF=360mA
    Peak Color Temperature TC 2500 --- 7000 K IF=360mA
    Color-rendering index RA 70 80     IF=360mA
    Forward Voltage VF 36 38 40 V

    IF=360mA



    Reverse Current IR --- --- 10 µA VR=5V



    Buy Led components, choose long history manufacturer---DOUBLE LIGHT

    Our Services
    1. We have our own independent R&D department on existing products for better maintenance, we still continue to develop high-tech products. We have our own patented products.
    2. Our products must pass strict quality control procedures.
    3. We have advanced production equipment.
    4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
    5. After repeated tests before shipment.
    Advantages
    1. Long life: product life of up to 50,000 hours;
    2. Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control;
    3. A large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light;
    4. Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation;
    5. Color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary colors to form a variety of colors, can realize full-color gradients, and other color effects.





     our various shipping to meet all kinds of customers requirement

    15W SMD Chip LED 2500-7000k warm white smd led High Power COB LED with 70-80 Ra Customize led light

    our cetifications to guarantee each items's quality



    15W SMD Chip LED 2500-7000k warm white smd led High Power COB LED with 70-80 Ra Customize led light




    choose DOUBLE LIGHT, your expert LED components nearby!

     15W SMD Chip LED 2500-7000k warm white smd led High Power COB LED with 70-80 Ra Customize led light
