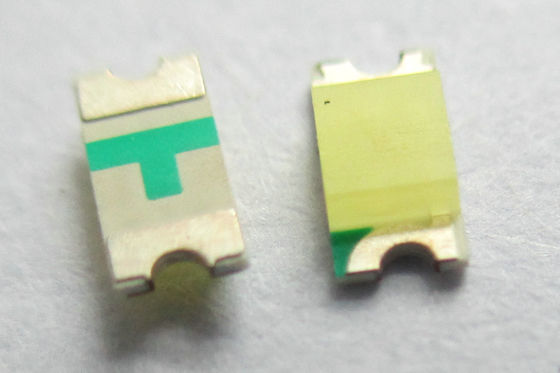

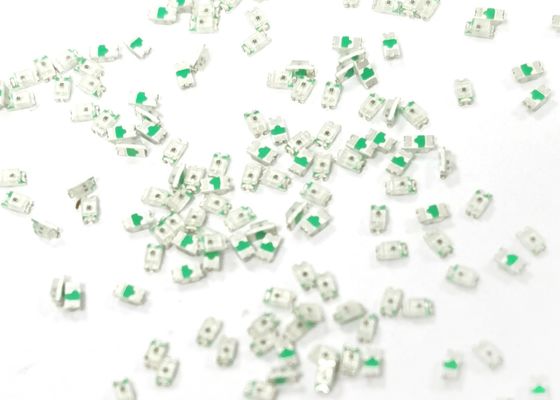

1608 SMD High Power Led Chips White Color With Water Clear Lens

1608 SMD High Power Led Chips White Color With Water Clear Lens

1608 SMD High Power Led Chips White Color With Water Clear Lens

Product Details:

Place of Origin: China (mainland)
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB0603W80-1W120

Payment & Shipping Terms:

Minimum Order Quantity: 3000PCS
Price: US$ 0.012-0.015 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: 0603 Package White Chip LED Package: 0603 Package
Emitted Color: White Chromaticity Coordinates: Chromaticity Coordinates X:0.30 Y:0.31
Model Number: DL-PCB0603W80-1W120 Lens Color: White Diffused
Forward Voltage @60ma: 3.0-3.4v Luminous Flux: 550mcd
Viewing Angle: 120 Deg Power Dissipation: 75mW
High Light:

brightest smd led chip


warm white smd led

1608 SMD High Power Led Chips White Color With Water Clear Lens
0603 Package White SMD LED

  • Package in 8mm tape on 7″ diameter reel.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process.
  • Mono-color type.
  • The product itself will remain within RoHS compliant Version..


  • The 0603 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.


  • Automotive: Backlighting in dashboard and switch.
  • Telecommunication: Indicator and backlighting in telephone and fax.
  • Flat backlight for LCD, switch and symbol.
  • General use.

0603 Package LED Package Dimension:
1608 SMD High Power Led Chips White Color With Water Clear Lens

Part No.Chip MaterialLens ColorSource Color
DL-PCB0603W80-1W120InGaN  YellowDiffused


Absolute Maximum Ratings at Ta=25

Power DissipationPD95mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

Forward CurrentIF25mA
Reverse VoltageVR5V
Electrostatic Discharge (HBM)ESD800V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25

ParametersSymbolMin.Typ.Max.UnitTest Condition
Luminous Intensity *IV350550---mcdIF=20mA (Note 1)
Viewing Angle *2θ1/2---130---DegIF=20mA (Note 2)
Chromaticity Coordinatesx---0.30--- IF=20mA (Note 3)
Forward VoltageVF3.03.3---VIF=20mA
Reverse CurrentIR------10µAVR=5V


  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
1608 SMD High Power Led Chips White Color With Water Clear Lens
CIE Chromaticity Diagram:
1608 SMD High Power Led Chips White Color With Water Clear Lens
Chromaticity Coordinates Specifications for Bin Rank:

(IF=20mA, Ta=25℃)



  1. Color coordinates measurement allowance is ± 0.01.
  2. One delivery will include up to two consecutive color ranks and three luminous intensity ranks of the products the quantity-ratio of the ranks is decided by DUOBLE LIGHT
