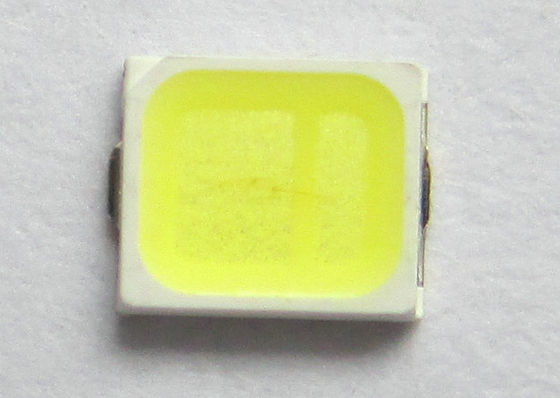

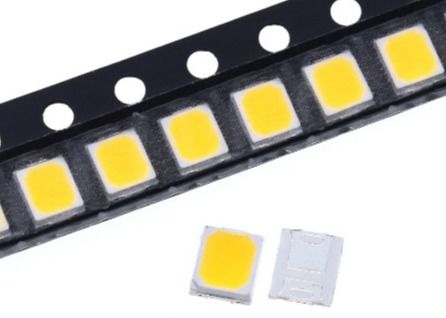

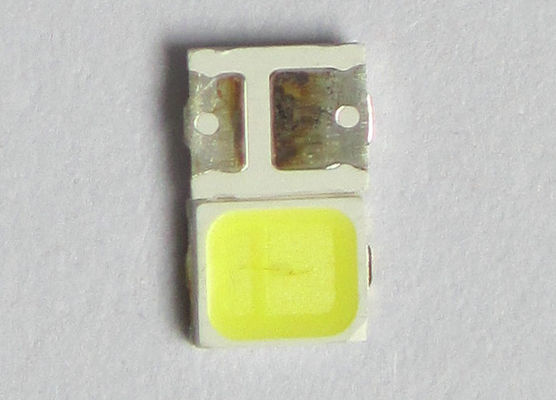

High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835 3V 6V 12V

High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835 3V 6V 12V

    • High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835  3V 6V 12V
    • High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835  3V 6V 12V
  • High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835  3V 6V 12V

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-TOP5730W65-05W

    Payment & Shipping Terms:

    Minimum Order Quantity: 3000PCS
    Price: US$ 0.012-0.015 per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: White SMD LED Package: Pack 5730
    Emitted Color: White Chromaticity Coordinates: 6000-7000k
    Model Number: DL-TOP3014W57-1W120 Lens Color: White Diffused
    Forward Voltage @60ma: 3.0-3.4v Luminous Flux: 12-14lm
    Viewing Angle: 120 Deg Power Dissipation: 200mW


    High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835 3V 6V 12V

    • Features:
    • P-LCC-2 package.
    • White package.
    • Optical indicator.
    • Colorless clear window.
    • Ideal for backlight and light pipe application.
    • Inter reflector.
    • Wide viewing angle.
    • Suitable for automatic placement equipment.
    • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
    • Available on tape and reel (8mm Tape).
    • The product itself will remain within RoHS compliant Version.



    • Descriptions:
    • The TOP 5730 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



    • Applications:
    • Automotive: Backlighting in dashboards and switches.
    • Telecommunication: Indicator and backlight in telephone and fax
    • Indicator and backlight for audio and video equipment.
    • Indicator and backlight in office and family equipment.
    • Flat backlight for LCD’s, switches and symbols.
    • Light pipe application.
    • General use.


     Package Dimension:
    High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835  3V 6V 12V




    Part No.Chip MaterialLens ColorSource Color
    DL-TOP3014W57-1W120InGaN  YellowDiffused

     White








    • Absolute Maximum Ratings at Ta=25
    ParametersSymbolMax.Unit
    Power DissipationPD95mW

    Peak Forward Current
    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP100mA
    Continuous Forward CurrentIF35mA
    Reverse VoltageVR5V
    Electrostatic Discharge (HBM)ESD1000V
    Operating Temperature RangeTopr-40℃ to +80℃
    Storage Temperature RangeTstg-40℃ to +85℃
    Soldering TemperatureTsld260℃ for 5 Seconds


    Electrical Optical Characteristics at Ta=25

    ParametersSymbolMin.Typ.Max.UnitTest Condition
    Luminous Intensity *IV23502850---mcdIF=30mA (Note 1)
    Luminous FluxΦ11---13lmIF=30mA
    Viewing Angle *2θ1/2---120---DegIF=30mA (Note 2)
    Chromaticity Coordinatesx---0.32--- IF=30mA (Note 3)
    y---0.33---
    Color TemperatureTC5300---6000KIF=30mA
    Forward VoltageVF3.003.303.80VIF=20mA
    Reverse CurrentIR------10µAVR=5V


    Notes:

    • Luminous Intensity Measurement allowance is ± 10%.
    • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.


    Typical Electrical / Optical Characteristics Curves
    (25℃ Ambient Temperature Unless Otherwise Noted)
    High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835  3V 6V 12V
    CIE Chromaticity Diagram:
    High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835  3V 6V 12V


    Chromaticity Coordinates Specifications for Bin Rank:

    (IF=20mA, Ta=25℃)

    BIN CodeXYBIN CodeXYBIN CodeXY
    G10.44990.4273G20.45490.4358
    0.45490.43580.45990.4443
    0.45950.43360.46450.4421
    0.45450.42510.45950.4336

    Notes:

    1. Color coordinates measurement allowance is ± 0.01.
    2. One delivery will include up to two consecutive color ranks and three luminous intensity ranks of the products the quantity-ratio of the ranks is decided by DUOBLE LIGHT


    Reel Dimensions:
    High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835  3V 6V 12V


    Carrier Tape Dimensions:
    Loaded quantity 3000 PCS Per reel.
    High Brightness Light Emitting Diode Epistar / Sanan LED Chip SMD 2835  3V 6V 12V
