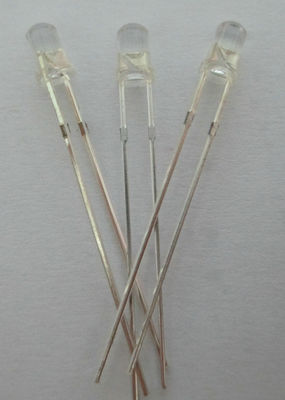

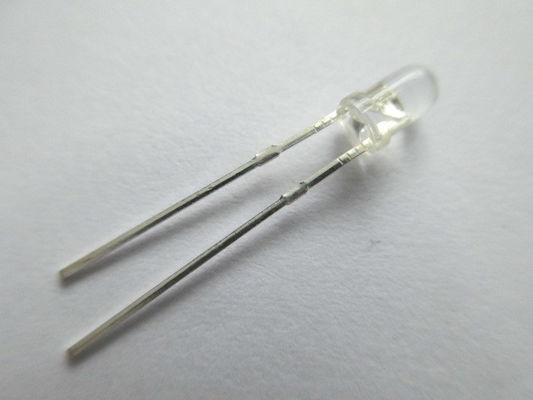

3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED

3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED
3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED 3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED

Large Image :  3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED

Product Details:

Place of Origin: China (mainland)
Brand Name: Double Light
Certification: ISO9001:2008,ROHS
Model Number: DL-304SIRCA-2SIR45

Payment & Shipping Terms:

Minimum Order Quantity: 10,000pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Western Union, L/C, T/T,paypal
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: Infrared LEDs Diameter: Dip 3mm
Emitted Color: Infrared LED 850nm Peak Emission Wavelength: 850nm
Chip Material: GaAlAs Lens Type: Water Clear
Forward Voltage @20ma: 1.1-1.4V Viewing Angle: 30 Deg
High Light:

light emitting diode led

,

ir emitting diode



3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED​



Part No. Chip Material Lens Color Source Color
DL-304SIRCA-2SIR45 GaAlAs Water Clear Infrared



  • Features:
  1. Popular 3mm round cylindrical with inner type package.
  2. High efficiency.
  3. Reliable and robust.
  4. Industrial standard footprint.
  5. The product itself will remain within RoHS compliant Version.
  • Descriptions:
  1. The LED lamps are available with different colors, intensities.
  2. Utilizing advanced InGaN chip technology.
  • Applications:
  1. Floppy disk drive.
  1. Optoelectronic switch.
  2. Camera.
  3. Free air transmission system.
  4. Video.
  1. Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation PD 100 mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 1.00 A
Forward Current IF 100 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +105℃
Soldering Temperature Tsld 260℃ for 5 Seconds

  • Electrical Optical Characteristics at Ta=25℃
Parameters Symbol Min. Typ. Max. Unit Test Condition
Radiant Intensity (Note 1) * Ee 20.0 25.0 --- mW/sr IF=20mA
--- 50.0 --- IF=50mA, tp=100µs, tp/T=0.01
Viewing Angle (Note 2) * 2θ1/2 --- 30 --- Deg IF=20mA
Peak Emission Wavelength λp --- 940 --- nm IF=20mA (Note 3)
Spectral Bandwidth △λ --- 50 --- nm IF=20mA
Forward Voltage VF 1.0 1.30 1.50 V IF=20mA
--- 1.60 1.80 IF=50mA, tp=100µs, tp/T=0.01
Reverse Current IR --- --- 10 µA VR=5V


Infrared Emitting Diode Package Dimension:
3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED 0


Company introduction:

HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include 3mm IR led, infrared led, THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.

3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED 1



Package way

Dip LED: ESD bag, reel
SMD: reel
High power: reel, ESD box, tube
COB: ESD box
3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED 2

3mm Round Cylindrical LED With Inner Type 850nm Infrared LED 30 viewing angle IR LED 3
