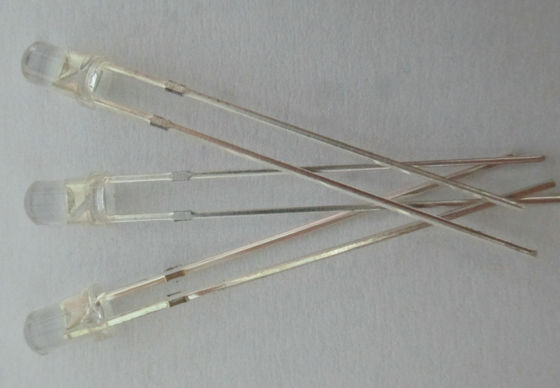

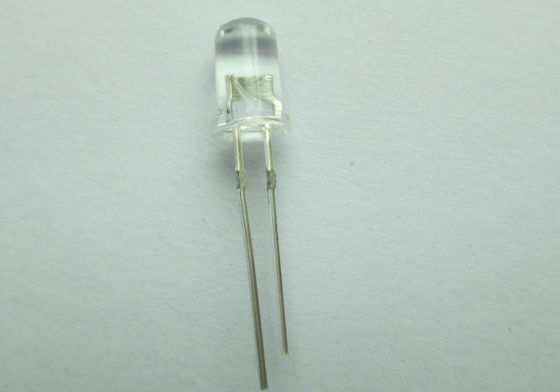

Water Clear Dip 3mm Round Standard T-1 Type Infrared Emitting Diode 850nm

Large Image : Water Clear Dip 3mm Round Standard T-1 Type Infrared Emitting Diode 850nm

Product Details:

Place of Origin:	China (mainland)
Brand Name:	Double Light
Certification:	ISO9001:2008,ROHS
Model Number:	DL-304SIRCA-2SIR45

Payment & Shipping Terms:

Minimum Order Quantity:	10,000pcs
Price:	Negotiated
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	10-15 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:	Infrared LEDs	Diameter:	Dip 3mm
Emitted Color:	Infrared	Peak Emission Wavelength:	850nm
Chip Material:	GaAlAs	Lens Type:	Water Clear
Forward Voltage @20ma:	1.1-1.4V	Viewing Angle:	45 Deg
Highlight:	ir emitting diode , 940nm infrared led

Water Clear Dip 3mm Round Standard T-1 Type Infrared Emitting Diode 850nm

Features:

1. Standard T-1 diameter package.

2. Low forward voltage.

3. Viewing angle=45°.

4. Reliable and rugged.

5. The product itself will remain within RoHS complaint Version.

Applications:

1. Floppy disk drive.

2. Optoelectronic switch.

3. Camera.

4. Free air transmission system.

5. Video.

Package Dimension:

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	150	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	1.00	A
Forward Current	IF	100	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Radiant Intensity (Note 1) *	Ee	5.0	10.0	---	mW/sr	IF=20mA
Radiant Intensity (Note 1) *	Ee	---	25.0	---	mW/sr	I_F=100mA, tp=100µs, tp/T=0.01
Viewing Angle (Note 2) *	2θ1/2	---	45	---	Deg	IF=20mA
Peak Emission Wavelength	λp	---	850	---	nm	IF=20mA (Note 3)
Spectral Bandwidth	△λ	---	45	---	nm	IF=20mA
Forward Voltage	VF	1.00	1.45	1.65	V	IF=20mA
Forward Voltage	VF	---	1.60	1.85	V	I_F=100mA, tp=100µs, tp/T=0.01
Reverse Current	IR	---	---	10	µA	V_R=5V

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

Water Clear Dip 3mm Round Standard T-1 Type Infrared Emitting Diode 850nm 1

Water Clear Dip 3mm Round Standard T-1 Type Infrared Emitting Diode 850nm 2
