Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type

Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type
Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type

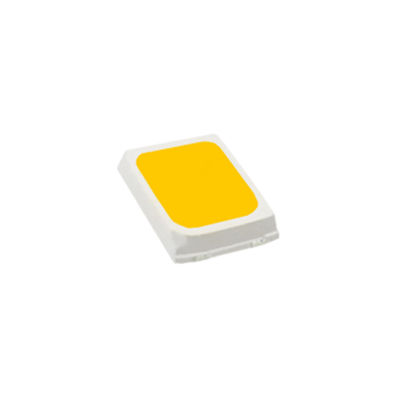

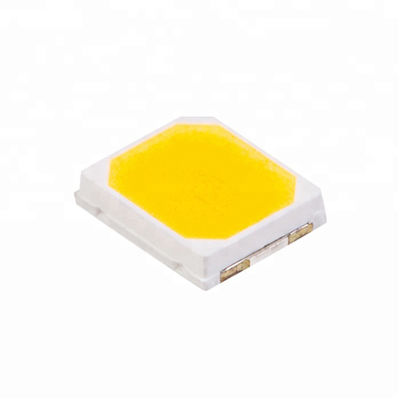

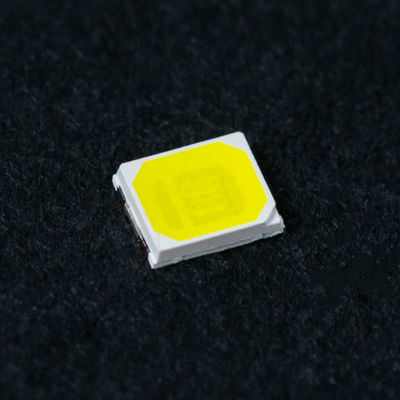

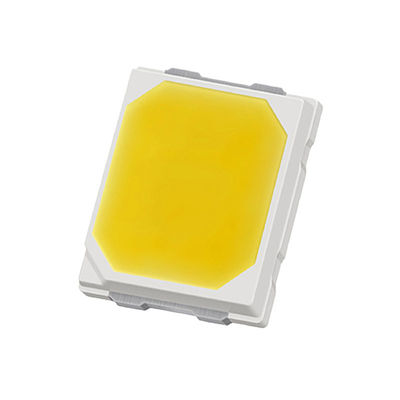

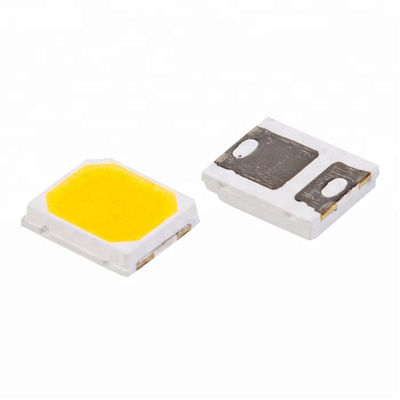

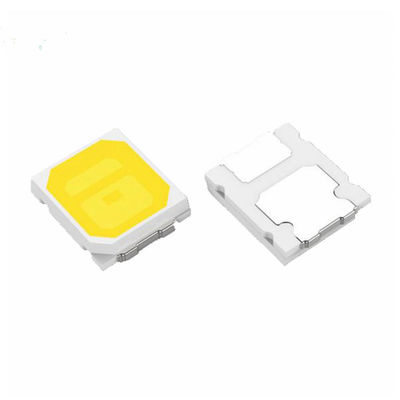

Large Image :  Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type

Product Details:

Place of Origin: China (mainland)
Brand Name: Double Light
Certification: ISO9001:2008,ROHS
Model Number: DL-TOP2835UYW-02W

Payment & Shipping Terms:

Minimum Order Quantity: 10,000pcs
Price: US$ 0.01-0.05per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: 0.75mm Yellow Chip LEDs Diameter: 2835 LED Infrared
Emitted Color: SMD Infrared LED Peak Emission Wavelength: 588nm
Chip Material: InGaN Lens Type: Yellow Diffused
Viewing Angle: 120 Deg Power Dissipation: 210mW
High Light:

light emitting diode led

,

940nm infrared led

Epistar 0.75mm Chip RoHS Certification and InGaN Chip RA90 0.2W yellow smd 2835 led​





Features:



  • P-LCC-2 package.
  • White package.
  • Optical indicator.
  • Colorless clear window.
  • Ideal for backlight and light pipe application.
  • Inter reflector.
  • Wide viewing angle.
  • Suitable for automatic placement equipment.
  • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  • Available on tape and reel (8mm Tape).
  • The product itself will remain within RoHS compliant Version.



Descriptions:



The TOP2835 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



Applications:

  • Automotive: Backlighting in dashboards and switches.
  • Telecommunication: Indicator and backlight in telephone and fax
  • Indicator and backlight for audio and video equipment.
  • Indicator and backlight in office and family equipment.
  • Flat backlight for LCD’s, switches and symbols.
  • Light pipe application.
  • General use.

Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type 0



Part No. Chip Material Lens Color Source Color
DL-TOP2835UYW-02W InGaN Yellow Diffused Yellow



Notes:
1. All dimensions are in millimeters.
2. Tolerance is ± 0.10 mm (.004″) unless otherwise specified.
3. Specifications are subject to change without notice.



Absolute Maximum Ratings at Ta=25



Parameters Symbol Max. Unit
Power Dissipation PD 210 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Continuous Forward Current IF 60 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 2000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Flux * Φv 20 --- 30 lm IF=60mA(Note 1)
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=60mA (Note 2)
Chromaticity Coordinates X --- 0.50 ---   IF=60mA
Y --- 0.43 ---
Peak Emission Wavelength   ---- 588 --- nm IF=60mA
Color Temperature TC --- 2550 ---   IF=60mA
Forward Voltage VF 3.0 3.3 --- V IF=60mA
Reverse Current IR --- --- 10 µA VR=5V


Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.



Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type 1

Epistar 0.75mm Chip Infrared Light Emitting Diode Yellow Diffused Lens Type 2



Reliability Test Items And Conditions:

The reliability of products shall be satisfied with items listed below:

Confidence level: 90%.

LTPD: 10%.

1) Test Items and Results:

No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
1 Resistance to Soldering Heat 6 Min

Tsld=260±5℃,

Min. 5sec

25pcs 0/1
2 Thermal Shock 300 Cycles

H: +100℃ 5min ∫ 10 sec

L: -10℃ 5min

25pcs 0/1
3 Temperature Cycle 300 Cycles

H: +100℃ 15min ∫ 5min

L: -40℃ 15min

25pcs 0/1
4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1




2) Criteria for Judging the Damage:

Item Symbol Test Conditions Criteria for Judgment
Min Max
Forward Voltage VF IF=20mA --- F.V.*)×1.1
Reverse Current IR VR=5V --- F.V.*)×2.0
Luminous Intensity IV IF=20mA F.V.*)×0.7 ---




*) F.V.: First Value.
