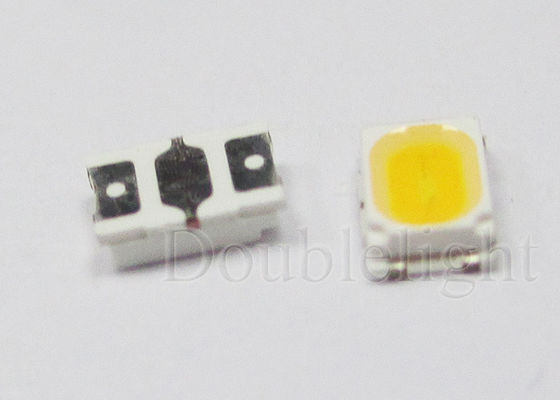

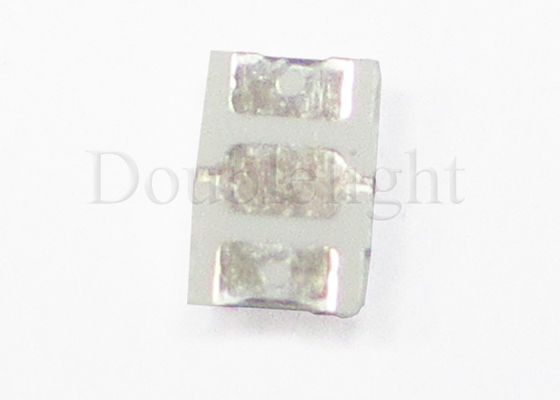

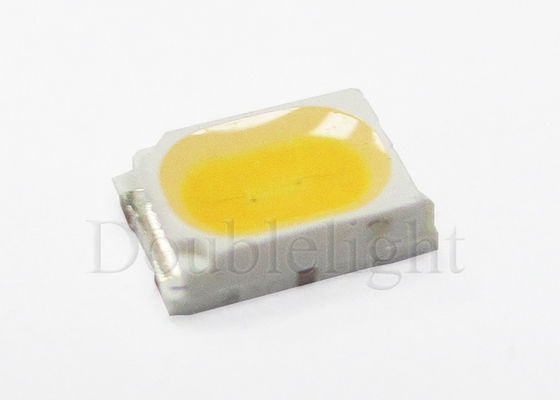

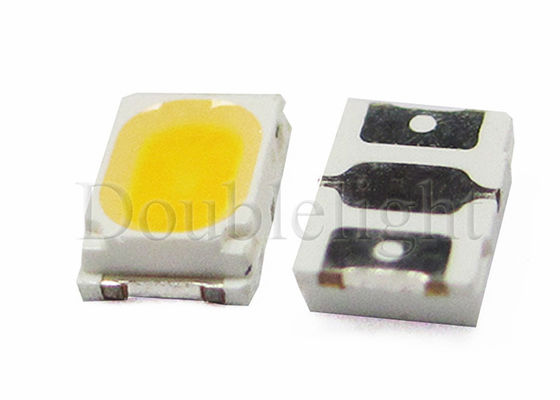

20-30lm SMD LED Diode 3030 0.8mm Smd 3020 Led White Chip LED Lights For Backlight

20-30lm SMD LED Diode 3030 0.8mm Smd 3020 Led White Chip LED Lights For Backlight
20-30lm SMD LED Diode 3030 0.8mm Smd 3020 Led White Chip LED Lights For Backlight 20-30lm SMD LED Diode 3030 0.8mm Smd 3020 Led White Chip LED Lights For Backlight 20-30lm SMD LED Diode 3030 0.8mm Smd 3020 Led White Chip LED Lights For Backlight 20-30lm SMD LED Diode 3030 0.8mm Smd 3020 Led White Chip LED Lights For Backlight 20-30lm SMD LED Diode 3030 0.8mm Smd 3020 Led White Chip LED Lights For Backlight

Large Image :  20-30lm SMD LED Diode 3030 0.8mm Smd 3020 Led White Chip LED Lights For Backlight

Product Details:

Place of Origin: China
Brand Name: Double Light
Certification: ISO9001:2008,Rosh
Model Number: DL-TOP3020W100B-02W

Payment & Shipping Terms:

Minimum Order Quantity: 12000 PCS
Price: 0.08
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 10-15 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Type: Smd 3020 White Chip LED Light Color: White
Chromaticity Coordinates: X:030 Y:031 Chip Material: InGaN
Forward Voltage: 2.8-3.8V Lens Color: Yellow Diffused
Power Dissipation: 200mW Continuous Forward Current: 60mA
Luminous Flux: 20-30lm Viewing Angle: 120Deg
High Light:

warm white smd led

,

led smd chip


SMD LED Diode 3030 0.8mm Smd 3020 led White Chip LED Lights Top View White LED Bulbs for backlight


Features:

  1. P-LCC-2 package.
  2. White package.
  3. Colorless clear window.
  4. Wide viewing angle.
  5. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  6. Compatible with automatic placement equipment.
  7. Available on tape and reel (8mm Tape).
  8. ESD protection.
  9. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The 3020 series is available in soft orange, green, blue, and yellow. Due to the package design, the LED has wide viewing angle and optimized. Light coupling by inter reflector. This feature makes the TOP View LEDs ideal for portable equipment or any other application where is at a premium.
  2. Double direction zener diode can make the device better against ESD damage.


Applications:

  1. Automotive: Backlight in dashboards and switches.
  2. Telecommunication: Indicator and backlight in telephone and fax.
  3. Indicator and backlight for audio and video equipment.
  4. Indicator and backlight in office and family equipment.
  5. Flat backlight for LCD’s, switches and symbols.
  6. Light pipe application.
  7. General use.

20-30lm SMD LED Diode 3030 0.8mm Smd 3020 Led White Chip LED Lights For Backlight 0


Part No.Chip MaterialLens ColorEmitting Color
DL-TOP3020W100-02WInGaNYellow Diffused



White




Notes:

  1. All dimensions are in millimeters (inches).
  2. Tolerance is ± 0.10mm (.004") unless otherwise specified.
  3. Specifications are subject to change without notice.


Absolute Maximum Ratings at Ta=25℃

ParametersSymbolMax.Unit
Power DissipationPD200mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP100mA
Continuous Forward CurrentIF60mA
Reverse VoltageVR5V
Electrostatic Discharge (HBM)ESD2000V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld260℃ for 5 Seconds




Electrical Optical Characteristics at Ta=25℃


ParametersSymbolMin.Typ.Max.UnitTest Condition
Luminous Flux *Фv20---30LmIF=60mA (Note 1)
Viewing Angle *2θ1/2---120---DegIF=60mA (Note 2)
Chromaticity CoordinatesX---0.30--- IF=60mA (Note 3)
Y---0.31---
Forward VoltageVF2.803.303.80VIF=60mA
Reverse CurrentIR------10µAVR=5V

Notes:
  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
