850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated

850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated
850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated 850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated 850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated 850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated 850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated

Large Image :  850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-COB5252SIRC-200W

Payment & Shipping Terms:

Minimum Order Quantity: 10,00pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 15 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: Infrared LED COB LED Package: High Power Infrared LED COB LED
Emitted Color: Infrared Peak Emission Wavelength: 850nm
Forward Voltage @20ma: 20.0-24.0v Radiant Intensity: 5000mW/sr
Viewing Angle: 120 Deg Power Dissipation: 200W
Forward Current: 7000mA
High Light:

ir emitting diode

,

940nm infrared led

150W 200W high power infrared COB LED components 850nm IR LED 4.Low voltage DC operated



Please download specification as follow:



DL-COB5252SIRC-200W.pdf



  • Features:
  1. Long operating life
  2. Highest flux
  3. More energy efficient than incandescent and most halogen lamps
  4. Low voltage DC operated
  5. Instant light (less than 100ns)
  6. Fully dimmable
  7. No UV
  8. Superior ESD protection
  9. RoHS compliant



  • Applications:
  1. Commercial lighting
  2. Advertisement
  3. Architectural lighting
  4. Street lamp



  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Rating Units
Power Dissipation PD 200 W

Peak Emission Wavelength

λp

850 nm

Forward Current

IF 7000 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40 to +85
Storage Temperature Range Tstg -40 to +100
Soldering Temperature Tsol 350±℃ for 3 Seconds


Notes:

1. It is strongly recommended that the temperature of lead be not higher than 55℃.

2. Proper current derating must be observed to maintain junction temperature below the maximum.

3. LEDs are not designed to be driven in reserve bias.

  • Electrical Optical Characteristics at Ta=25℃
Parameters Symbol Min. Typ. Max. Unit Test Condition

Radiant Intensity[1]

Ee

1500 5000 ---

mW/sr

IF=7000mA
Viewing Angle [2] 1/2 --- 120 --- Deg IF=7000mA
Peak Emission Wavelength[3] λp --- 850 --- nm IF=7000mA
Spectral Bandwidth △λ --- 50 --- nm IF=7000mA
Forward Voltage VF 20.0 --- 24 V IF=7000mA
Reverse Current IR --- --- 10 µA VR=50V


Notes:

1. Luminous Intensity Measurement allowance is ± 10%.

2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

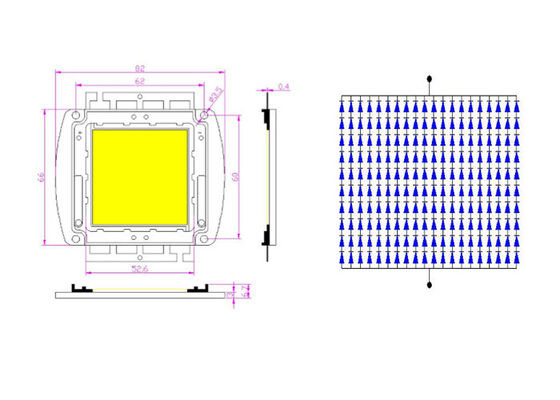

  • Dimensional drawing

850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated 0

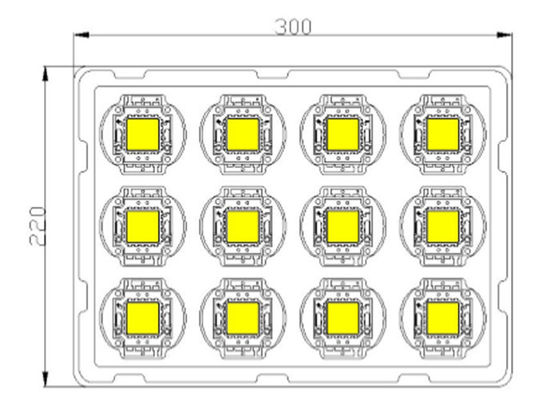

  • Packing Standard

850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated 1



other led available here:

850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated 2

Choose your delivery method as you like

850nm IR Emitting Diode Infrared COB LED Components Low Voltage DC Operated 3
