5mm Infrared Transceiver Module IR Led Diodes For Monitor In Black Lens Color use in camera

5mm Infrared Transceiver Module IR Led Diodes For Monitor In Black Lens Color use in camera
5mm Infrared Transceiver Module IR Led Diodes For Monitor In Black Lens Color use in camera 5mm Infrared Transceiver Module IR Led Diodes For Monitor In Black Lens Color use in camera 5mm Infrared Transceiver Module IR Led Diodes For Monitor In Black Lens Color use in camera

Large Image :  5mm Infrared Transceiver Module IR Led Diodes For Monitor In Black Lens Color use in camera

Product Details:

Place of Origin: China (mainland)
Brand Name: Double Light
Certification: ISO9001:2008,ROHS
Model Number: DL-503SIRDA-3SIR30

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs
Delivery Time: 5-7 working days after received your payment
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: Infrared LEDs Diameter: Dip 5mm
Emitted Color: IR Peak Emission Wavelength: 850nm
Chip Material: GaAlAs Lens Type: Black Diffused
Forward Voltage @20ma: 1.1-1.4V Viewing Angle: 30 Deg
Current: 20mA Radiant Intensity: 30mW/sr
High Light:

light emitting diode led

,

ir emitting diode

DL-503SIRDA-2SIR30.pdf

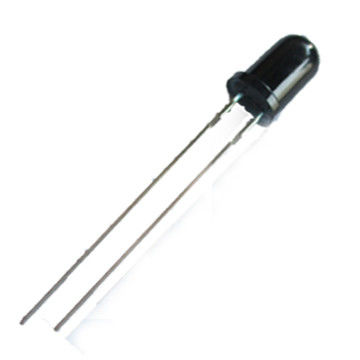

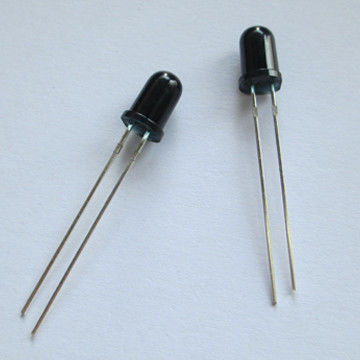

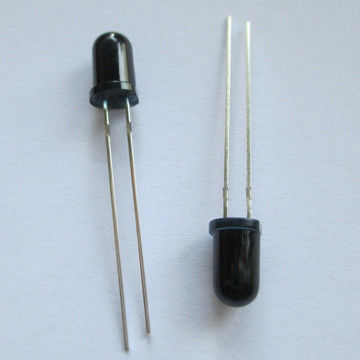

Infrared Transceiver Module IR Led Diodes For Monitor In Black Lens Color



5mm Round 30 degree Angle Infrared LED Transmitter IR LED Diodes for Monitor in Black Lens Color





Part No. Chip Material Lens Color Source Color
DL-503SIRDA-3SIR30 GaAlAs Black Diffused Infrared
  • Features:
  1. Standard T-1 3/4 diameter package.
  2. Low forward voltage.
  3. Viewing angle=30°.
  4. Reliable and rugged.
  5. The product itself will remain within RoHS complaint Version.
  • Descriptions:
  1. The device is spectrally matched with silicon photodiode and phototransistor.
  • Applications:
  1. Floppy disk drive.
  2. Optoelectronic switch.
  3. Camera.
  4. Free air transmission system.
  5. Video.
  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation PD 70 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 1.00 A
Forward Current IF 120 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +100℃
Soldering Temperature Tsld 260℃ for 5 Seconds



Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Radiant Intensity (Note 1) * Ee --- 30.0 --- mW/sr IF=20mA
--- 45.0 -- IF=50mA
-- 75 -- IF=100mA, tp=100µs, tp/T=0.01
Viewing Angle (Note 2) * 2θ1/2 --- 30 --- Deg IF=20mA
Peak Emission Wavelength λp --- 850 --- nm IF=20mA (Note 3)
Spectral Bandwidth △λ --- 50 --- nm IF=20mA
Forward Voltage VF 1.25 1.40 1.55 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V
