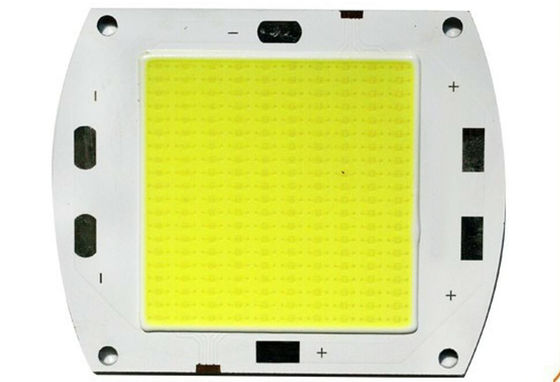

Large Image :  COB 15W White High Power Chip LED smd power led 2600-7000 Color Temperature temperature cycle test

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-COB15WXX

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs
Price: US$1.5-3.5per unit (Pieces) can be discussed
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 15 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 10,000,000pcs per month
Detailed Product Description
Product Name: 15W White High Power COB LED Package: COB LED
Emitted Color: White Color Temperature: 2600-7000K
Forward Voltage @20ma: 36-40V Luminous Intensity: 2500-10000LM
Viewing Angle: 120Deg Certification: RoHS
Power: 15w Forward Current: 360mA
High Light:

brightest smd led chip

,

warm white smd led



       This is our COB 15W White High Power Chip LED smd power led 2600-7000 Color Temperature temperature cycle test

Datasheet:DL-COB15Wxx .pdf


Features

  1. Long operating life
  2. Highest flux
  3. Wide range of colours:2500K-7000K
  4. More energy efficient than incandescent and most halogen lamps
  5. Low voltage DC operated
  6. Instant light (less than 100ns)
  7. Fully dimmable
  8. No UV
  9. Superior ESD protection
  10. RoHS compliant


Applications

  1. Commercial lighting
  2. Advertisement
  3. Architectural lighting
  4. Street lamps

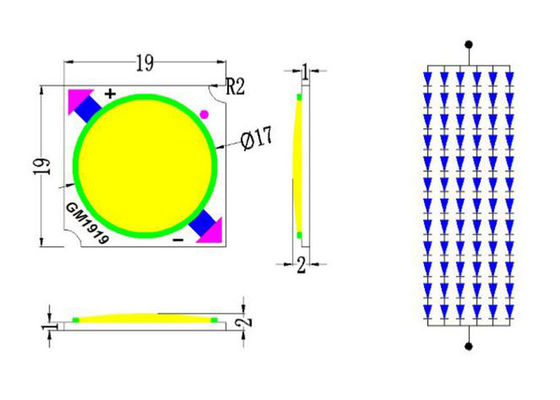

Dimensional drawing
COB 15W White High Power Chip LED smd power led 2600-7000 Color Temperature temperature cycle test 0
Notes:

  • All dimensions are in millimeters.
  • Tolerance is ± 0.1mm unless otherwise noted.

Absolute maximum ratings(Ta=25°C)

Parameters Symbol Rating Units
Power Dissipation Pd 15 W
Forward Current If 360 mA
Peak pulse Current Ifp 600 mA
Reverse Voltage Vr 5 V
Electrostatic Discharge ESD 4500(HBM) V
Operating Temperature Topr -40°C~+85°C °C
Storage Temperature Tstg -40°C~+100°C °C
Soldering temperature Tsol 260±5°C(for 5sec) °C
Manual Soldering Temperature TSOL 350±20°C For 3 Seconds °C


Opto-Electronical Specification

Parameter Symbol Value Unit Tolerance Test Conditions
Min Typ Max
Forward Voltage Vf 36 38 40 V ± 0.5V

IF=360mA

Test Temp=25°C

Luminous Flux Φ 2500 --- 10000 Lm ±5%
50% Power Angle 2θ1/2   120   deg ±5
Color Temperature TC 2600 ---- 700 k ±200k
Color-rendering index Ra 70 80     ±3
Reverse Current IR -- -- 10 μA ±1μA Vr=5V



CIE Chromaticity Diagram:
COB 15W White High Power Chip LED smd power led 2600-7000 Color Temperature temperature cycle test 1



Opto-Electronical Characteristics
COB 15W White High Power Chip LED smd power led 2600-7000 Color Temperature temperature cycle test 2COB 15W White High Power Chip LED smd power led 2600-7000 Color Temperature temperature cycle test 3



COB 15W White High Power Chip LED smd power led 2600-7000 Color Temperature temperature cycle test 4



PackingStandard

COB 15W White High Power Chip LED smd power led 2600-7000 Color Temperature temperature cycle test 5
