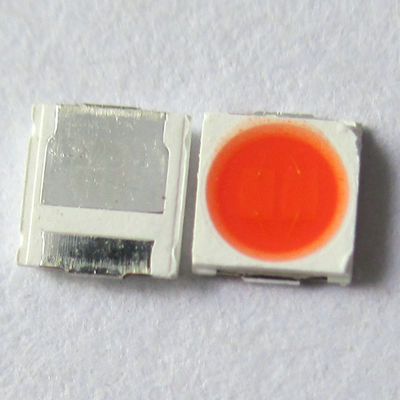

Product Name: 0.62mm Height Top View 3030 1W High Power White LED Package: Top View Chip LED 3030
Emitted Color: White Product Number: DL-TOP3030WxxA-1W
Color Temperature: 2600-7000K Forward Voltage: 5.8-6.8V
Forward Current: 150mA Luminous Flux: 80-110lm
Viewing Angle: 120 Deg



0.62mm Height Top View 3030 1W High Power White LED Emitting Color changeable



DL-TOP3030WxxA-1WX.pdf



        This is our 0.62mm Height Top View 1W High Power White LED, the TOP 3030series is available in soft red, orange, yellow, green, blue and white. The LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



Part No. Chip Material Lens Color Source Color
DL-TOP3030WxxA-1W InGaN Yellow Diffused White



Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25mm (.010”) unless otherwise specified.

3. Specifications are subject to change without notice.





Features:

  • Low profile.
  • Colorless clear window.
  • Super luminosity LED.
  • Several colors available.
  • Wide viewing angle.
  • High performance.
  • Small size (L×W×H: 3.0mm×3.0mm×0.52mm).
  • Industry standard footprint.
  • Computable with automatic placement equipment.
  • Soldering methods: Reflow Soldering.
  • The product itself will remain within RoHS compliant Version.

Applications:

  • Reading lights (car, bus, aircraft).
  • Portable (flashlight, bicycle).
  • Mini-accent / Up lighters / Down lighters / Orientation.
  • Bollards / Security / Garden.
  • Cove / Under shelf / Task.
  • Automotive rear combination lamps.
  • Traffic signaling / Beacons / Rail crossing and Wayside.
  • Indoor / Outdoor Commercial and Residential Architectural.
  • Edge-lit signs (Exit, point of sale).
  • LCD Backlights / Light Guides.



Absolute Maximum Ratings at Ta=25



Parameters Symbol Max. Unit
Power Dissipation PD 1000 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 250 mA
Forward Current IF 150 mA
Reverse Voltage VR 10 V
Junction Temperature TJ 125
Junction To Heat-Sink Thermal Resistance RTH 50 K/W
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃
Soldering Temperature Tsld 260℃ for 5 Seconds





Electrical Optical Characteristics at Ta=25



Parameters Symbol Min. Typ. Max. Unit Test Condition
Color Temperature CCT 2580 --- 6530 K IF=150mA
Luminous Flux * Φv 80 --- 110 lm

IF=150mA

(Note 1)

Forward Voltage VF 5.80 6.30 6.80 V IF=150mA
CRI Ra 80 --- ---   IF=150mA
Viewing Angle 2θ1/2 --- 120 --- Deg

IF=150mA

(Note 2)

Reverse Current IR --- --- 50 µA VR=5V

Notes:

  • Luminous Intensity (Flux) Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

Reliability Test Items and Conditions:

The reliability of products shall be satisfied with items listed below:

Confidence level: 90%.

LTPD: 10%.

1) Test Items and Results:

No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
1 Resistance to Soldering Heat 6 Min

Tsld=260±5℃,

Min. 5sec

25pcs 0/1
2 Thermal Shock 300 Cycles

H: +100℃ 5min ∫ 10 sec

L: -10℃ 5min

25pcs 0/1
3 Temperature Cycle 300 Cycles

H: +100℃ 15min ∫ 5min

L: -40℃ 15min

25pcs 0/1
4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
5 DC Operating Life 1000Hrs. IF=150mA 25pcs 0/1
6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1



2) Criteria for Judging the Damage:

Item Symbol Test Conditions Criteria for Judgment
Min Max
Forward Voltage VF IF=150mA --- F.V.*)×1.1
Reverse Current IR VR=10V --- F.V.*)×2.0
Luminous Intensity IV IF=150mA F.V.*)×0.7 ---



*) F.V.: First Value.





Reel Dimensions

Carrier Tape Dimensions: Loaded quantity 3000 PCS Per reel.



Please read the following notes before using the product:

1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile.



3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

5. Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.



6. Caution in ESD

Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.
