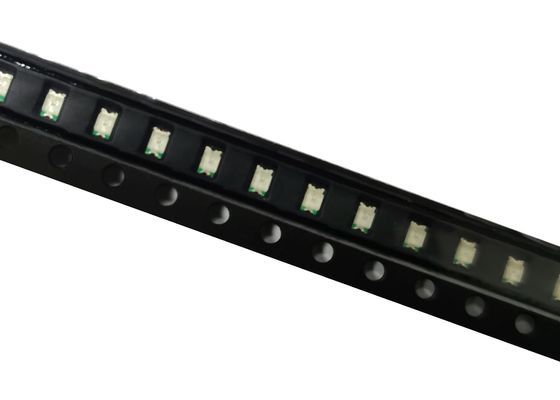

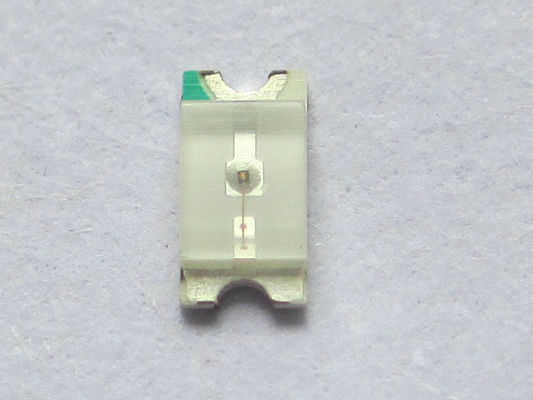

Side view IR LED 0805 2012 Package Infrared light emitting diode led 1.10mm Height

Side view IR LED 0805 2012 Package Infrared light emitting diode led 1.10mm Height
Side view IR LED 0805 2012 Package Infrared light emitting diode led 1.10mm Height Side view IR LED 0805 2012 Package Infrared light emitting diode led 1.10mm Height

Large Image :  Side view IR LED 0805 2012 Package Infrared light emitting diode led 1.10mm Height

Product Details:

Place of Origin: China (mainland)
Brand Name: Double Light
Certification: ISO9001:2008,ROHS
Model Number: DL- PCB0805SIRC-1SIR120

Payment & Shipping Terms:

Minimum Order Quantity: 10,000pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: 0805 0802 Infrared LEDs Diameter: 0805 0802 SMD LED Infrared
Emitted Color: SMD Infrared LED Peak Emission Wavelength: 940nm 880nm 850nm
Chip Material: GaAlAs Lens Type: Water Clear
Forward Voltage @20ma: 1.1-1.4V Viewing Angle: 140 Deg
High Light:

light emitting diode led

,

ir emitting diode

Side view IR LED 0805 2012 Package Infrared light emitting diode led 1.10mm Height

  •  Features:

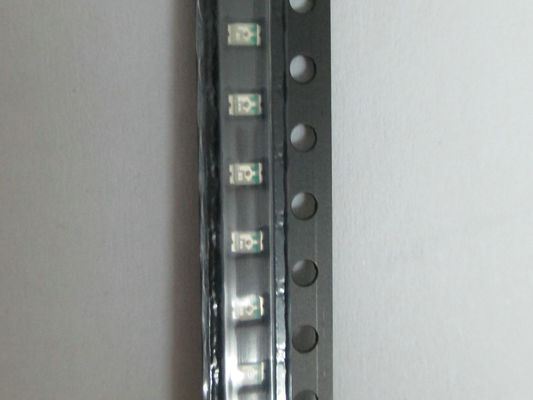

1. Package in 8mm tape on 7" diameter reel.
2. Compatible with automatic placement equipment.
3. Compatible with infrared and vapor phase reflow solder process.
4. Mono-color type.
5. The product itself will remain within RoHS compliant Version.



  • Descriptions:

1. The PCB1206SIR is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens.
2. The device is spectrally matched with photodiode and phototransistor.

  • Applications:

1. PCB mounted infrared sensor.
2. Infrared emitting for miniature light barrier.
3. Floppy disk drive.
4. Optoelectronic switch.
5. Smoke detector.

  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Min. Typ. Max. Unit Test Condition
Radiant Intensity * Ee 1.00 1.6 --- mW/sr IF=20mA
--- 3.0 ---

IF=100mA

(Pulse Width≤100µs, Duty≤1%)

Viewing Angle * 2θ 1/2 --- 140 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 850/880/940 --- nm IF=20mA (Note 3)
Spectral Bandwidth △λ --- 50 --- nm IF=20mA
Forward Voltage VF 0.80 1.20 1.50 V IF=20mA
--- 1.60 1.80

IF=100mA

(Pulse Width≤100µs, Duty≤1%)

Reverse Current IR --- --- 10 µA VR=5V




Notes:

Luminous (Radiant) Intensity Measurement allowance is ± 10%. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. The dominant wavelength (λp) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
Parameters Symbol Max. Unit
Power Dissipation PD 100 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 1.00 A
Forward Current IF 50 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Lead Soldering Temperature Tsld 260℃ for 5 Seconds

Company introduction:
HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include IR led, infrared led, 0805 IR led, smd IR LED, THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
