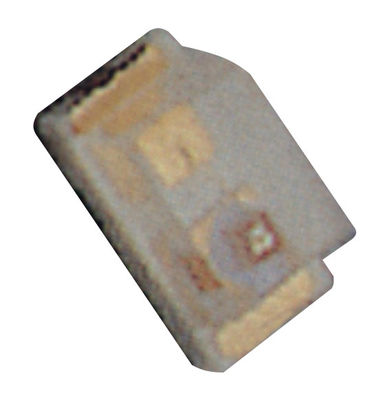

Backlighting in dashboard and switch 0603 White LED With 130 Deg 550mcd

Backlighting in dashboard and switch 0603 White LED With 130 Deg 550mcd
Backlighting in dashboard and switch 0603 White LED With 130 Deg 550mcd Backlighting in dashboard and switch 0603 White LED With 130 Deg 550mcd Backlighting in dashboard and switch 0603 White LED With 130 Deg 550mcd

Large Image :  Backlighting in dashboard and switch 0603 White LED With 130 Deg 550mcd

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS CE
Model Number: DL-PCB0603W80-1W120
Payment & Shipping Terms:
Minimum Order Quantity: 3000PCS
Price: US$ 0.012-0.015 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: 0603 White Chip LED Package: 0603 Package
Emitted Color: White Chromaticity Coordinates: Chromaticity Coordinates X:0.30 Y:0.31
Model Number: DL-PCB0603W80-1W120 Lens Color: White Diffused
Forward Voltage @60ma: 3.0-3.4v Luminous Flux: 550mcd
Viewing Angle: 120 Deg Power Dissipation: 95mW
High Light:

warm white smd led

,

led smd chip

Backlighting in dashboard and switch 0603 High Power White LED With 130 Deg 550mcd

Features:

  • Package in 8mm tape on 7″ diameter reel.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process.
  • Mono-color type.
  • The product itself will remain within RoHS compliant Version..


Descriptions:

  • The 0603 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.


Applications:

  • Automotive: Backlighting in dashboard and switch.
  • Telecommunication: Indicator and backlighting in telephone and fax.
  • Flat backlight for LCD, switch and symbol.
  • General use.

0603 Package LED Package Dimension:
Backlighting in dashboard and switch 0603 White LED With 130 Deg 550mcd 0


Part No. Chip Material Lens Color Source Color
DL-PCB0603W80-1W120 InGaN   YellowDiffused

 White







Absolute Maximum Ratings at Ta=25


Parameters Symbol Max. Unit
Power Dissipation PD 95 mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 800 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 350 550 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 130 --- Deg IF=20mA (Note 2)
Chromaticity Coordinates x --- 0.30 ---   IF=20mA (Note 3)
y --- 0.31 ---
Forward Voltage VF 3.0 3.3 --- V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V


Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.


Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Backlighting in dashboard and switch 0603 White LED With 130 Deg 550mcd 1
CIE Chromaticity Diagram:
Backlighting in dashboard and switch 0603 White LED With 130 Deg 550mcd 2


Chromaticity Coordinates Specifications for Bin Rank:

(IF=20mA, Ta=25℃)

BIN Code X Y BIN Code X Y BIN Code X Y
G1 0.4499 0.4273 G2 0.4549 0.4358
0.4549 0.4358 0.4599 0.4443
0.4595 0.4336 0.4645 0.4421
0.4545 0.4251 0.4595 0.4336

Notes:

  1. Color coordinates measurement allowance is ± 0.01.
  2. One delivery will include up to two consecutive color ranks and three luminous intensity ranks of the products the quantity-ratio of the ranks is decided by DUOBLE LIGHT
