Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5mm 4-pin Super Flux Led Piranha Led | Package: | 5mm 3mm |
|---|---|---|---|
| Emitted Color: | Blue、Red、Yellow、Green、RGB | Chip Material: | InGaN、AlGaInP |
| Lens Type: | Water Clear | Forward Voltage @20ma: | 1.8-2.2v |
| Luminous Intensity: | 1000-1500mcd | Viewing Angle: | 70 Deg |
| High Light: | light emitted diode,light emission diode |
||

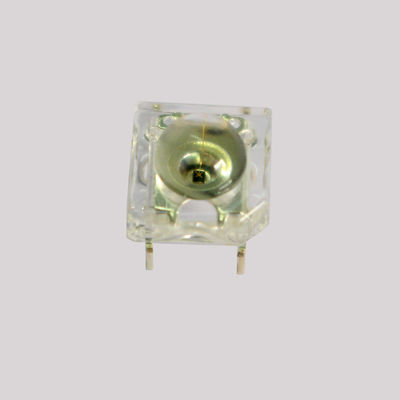

5mm 4-pin super flux led piranha led emitting diode red/blue/green/rgb led components ( CE & RoHS Compliant )
Features:
5mm Piranha Red LED Diode Lights (Round Super Flux 4 pins Clear DC 2V 20mA) Lighting Bulb Lamps Electronics Components
1. Chip material: InGaN
2. Emitted color: Blue
3. Lens Appearance: Water Clear
4. Low power consumption
5. High efficiency
6. Low current requirement
Applications:
Benefits:
Descriptions:
1. TV set
2. Monitor
3. Telephone
4. Computer
5. Circuit board
| Part No. | Chip Material | Lens Color | Source Color |
| DL-U50-1B45 | InGaN | Water Clear | Blue |
Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Max. | Unit |
| Power Dissipation | PD | 100 | mW |
|
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) |
IFP | 100 | mA |
| Forward Current | IF | 25 | mA |
| Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | Topr | -40℃ to +85℃ | |
| Storage Temperature Range | Tstg | -40℃ to +100℃ | |
|
Lead Soldering Temperature [4mm (.157″) From Body] |
Tsld | 260℃ for 5 Seconds | |
Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity * | IV | 100 | 200 | --- | mcd | IF=20mA (Note 1) |
| Viewing Angle * | 2θ1/2 | --- | 30 | --- | Deg | IF=20mA (Note 2) |
| Peak Emission Wavelength | λp | --- | 400 | --- | nm | IF=20mA |
| Spectrum Radiation Bandwidth | Δλ | --- | 15 | --- | nm | IF=20mA |
| Forward Voltage | VF | 3.00 | 3.30 | --- | V | IF=20mA |
| Reverse Current | IR | --- | --- | 10 | µA | IF=20mA |
Package Dimension:
