Alphanumeric Led Display 0.52 Inch Single Digit Display Ultra Amber

Alphanumeric Led Display 0.52 Inch Single Digit Display Ultra Amber
Alphanumeric Led Display 0.52 Inch Single Digit Display Ultra Amber Alphanumeric Led Display 0.52 Inch Single Digit Display Ultra Amber

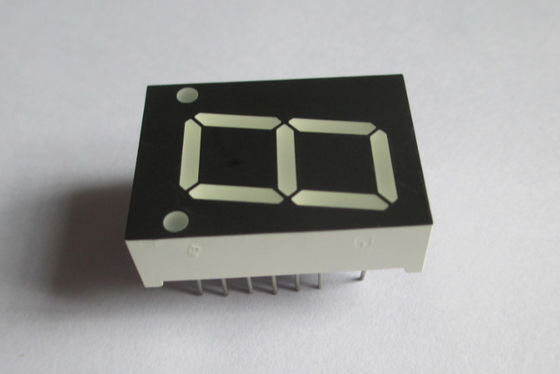

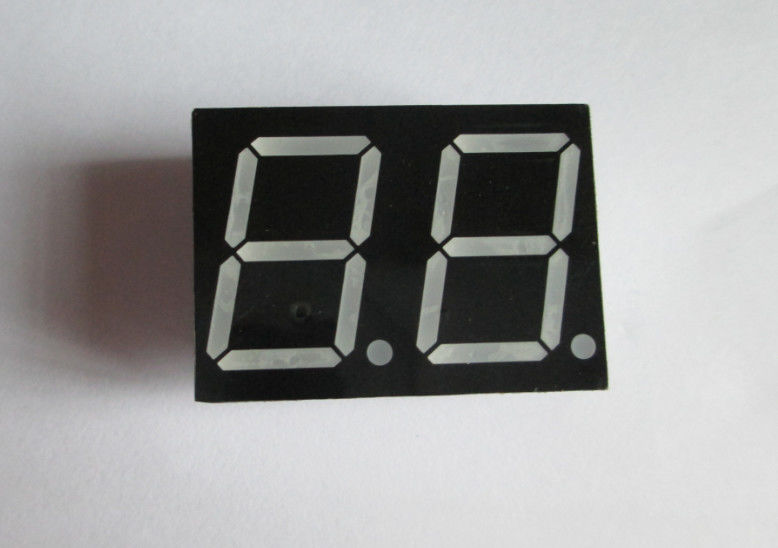

Large Image :  Alphanumeric Led Display 0.52 Inch Single Digit Display Ultra Amber

Product Details:
Place of Origin: China
Brand Name: Double Light
Certification: ISO9001:2008,Rosh
Model Number: DL1-521XUAB
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Type: LED Display Emitting Diodes Max. Reverse Voltage: 5V
Light Color: Ultra Amber Color Temperature: 605nm
Led Chips: Epistar Led Diodes Forward Voltage: 2.0-2.2V
Size: 0.52 Inch Description: Common Anode&Common Cathode
High Light:

power led chip

,

light emitting diode

0.52 Inch Single Digit Numeric Ultra Amber LED Displays



Features:

  1. 0.52″ (inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The DL1-521series is a large 13.2 mm (0.52″) hight seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.


Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.



Device Selection Guide:



Model No. Chip Material Source Color Description
DL1-521AUAB AlGaInP Ultra Amber Common Anode
DL1-521CUAB Ultra Amber Common Cathode




Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 65 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃   0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 8.0 16.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
Peak Emission Wavelength λp --- 610 --- nm IF=20mA
Dominant Wavelength λd --- 605 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 2.1 2.6 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V


Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



LED Display Emitting Diodes Package Dimension:
