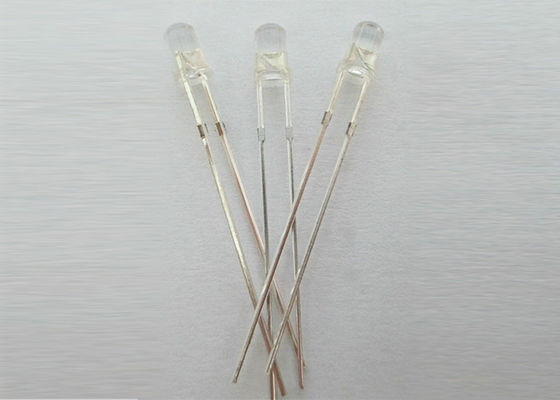

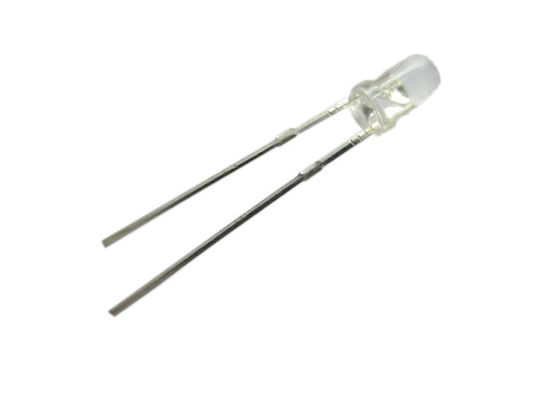

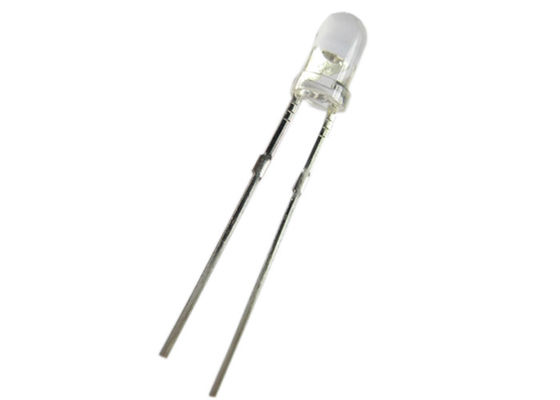

wavelength 850nm ir led diode T-1 3mm infrared led in water clear 60° viewing angle light emitting diode led

Name: wavelength 850nm ir led diode T-1 3mm infrared led in water clear 60° viewing angle light emitting diode led
Brand: Double Light
SKU: DL-304SIRCA-2SIR60
Rating: 5 (128 reviews)

Large Image : wavelength 850nm ir led diode T-1 3mm infrared led in water clear 60° viewing angle light emitting diode led

Product Details:

Place of Origin:	China
Brand Name:	Double Light
Certification:	ISO9001:2008,Rosh
Model Number:	DL-304SIRCA-2SIR60

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	5-7 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Type:	Infrared LED Emitting Diodes	Max. Reverse Voltage:	5V
Light Color:	Infrared	Peak Emission Wavelength:	850nm
Chip Material:	GaAlAs	Radiant Intensity:	5.0-10.0mW/sr
Package Type:	Through Hole	Shape:	Round
Size:	OEM & 3mm	Application:	Led Lighting
High Light:	flat led diode , light emitting diode

wavelength 850nm ir led diode T-1 3mm infrared led in water clear 60° viewing angle light emitting diode led

Features:

Standard T-1 diameter package.
Low forward voltage.
Viewing angle=60°.
Reliable and rugged.
The product itself will remain within RoHS complaint Version.

Descriptions:

The device is spectrally matched with silicon photodiode and phototransistor.

Applications:

Floppy disk drive.
Optoelectronic switch.
Camera.
Free air transmission system.
Video.

Part No.	Chip Material	Lens Color	Source Color
DL-304SIRCA-2SIR60	GaAlAs	Water Clear	Infrared

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	150	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	1.00	A
Forward Current	IF	100	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Radiant Intensity (Note 1) *	Ee	5.0	10.0	---	mW/sr	IF=20mA
Viewing Angle (Note 2) *	2θ1/2	---	60	---	Deg	IF=20mA
Peak Emission Wavelength	λp	---	850	---	nm	IF=20mA (Note 3)
Spectral Bandwidth	△λ	---	60	---	nm	IF=20mA
Forward Voltage	VF	1.25	1.40	1.55	V	IF=20mA
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

Luminous (Radiant) Intensity Measurement allowance is ± 10%.
θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
The dominant wavelength (λp) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

LED Emitting Diodes Package Dimension:
wavelength 850nm ir led diode T-1 3mm infrared led in water clear 60° viewing angle light emitting diode led 0

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)
wavelength 850nm ir led diode T-1 3mm infrared led in water clear 60° viewing angle light emitting diode led 1

Choose DOUBLE LIGHT, your expert LED components nearby!

Adcantage:
Over 10 years work experience technical service team
Manufacturer direct sale,high quality product and competitive price
Mix order accepted and free sample
Make double check strictly and packing carefully.
We will refund you in case of bad quality issue happens due to our product itself.
