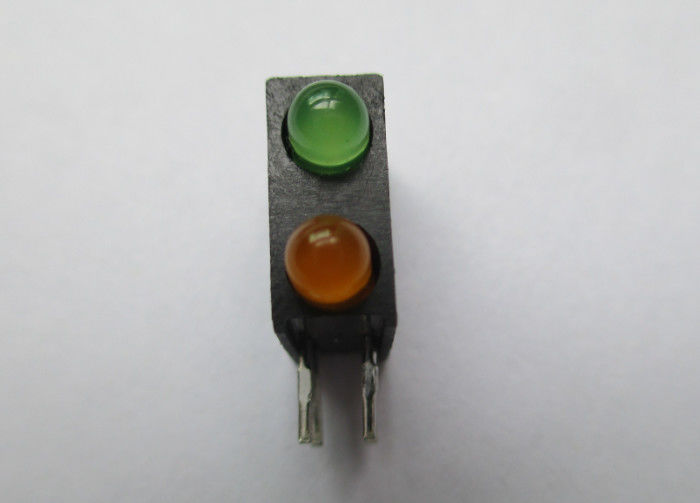

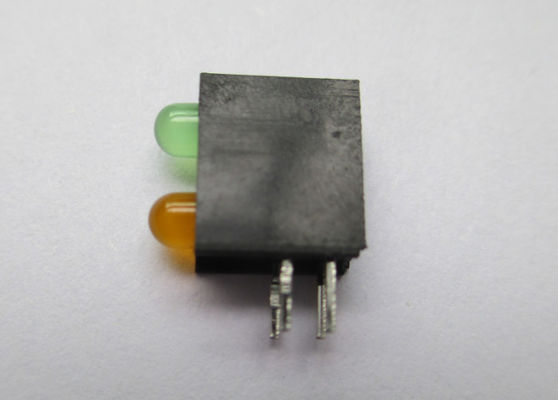

3.0mm Round LED Emitting Diodes Through Hole LED Lights 6000 - 7000K

3.0mm Round LED Emitting Diodes Through Hole LED Lights 6000 - 7000K
3.0mm Round LED Emitting Diodes Through Hole LED Lights 6000 - 7000K 3.0mm Round LED Emitting Diodes Through Hole LED Lights 6000 - 7000K

Large Image :  3.0mm Round LED Emitting Diodes Through Hole LED Lights 6000 - 7000K

Product Details:
Place of Origin: China
Brand Name: Double Light
Certification: ISO9001:2008,Rosh
Model Number: DL-H30YGC-1YG60
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Type: LED Emitting Diodes Max. Reverse Voltage: 5V
Light Color: White Advantage: LM-80 Energy Star Passed
Color Temperature: 6000-7000K Led Chips: Epistar Led Diodes
High Light:

flat led diode

,

power led chip

3.0mm Round Type Housing LED Lamps







Features:

  1. Low Power consumption.
  2. High efficiency and low cost.
  3. Good control and free combinations on the colors of LED lamps.
  4. Good lock and easy to assembly.
  5. Stackable and easy to assembly.
  6. Stackable vertically and easy to assembly.
  7. Versatile mounting on P.C board or panel.
  8. Stackable horizontally and easy to assembly.
  9. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. ARRAY=Plastic Holder + Combinations of Lamps.
  2. The array will easily mount the applicable lamps on any panel up to.


Applications:

  1. Automotive: Backlighting in dashboards and switches.
  2. Telecommunication: Indicator and backlight in telephone and fax
  3. Indicator and backlight for audio and video equipment.
  4. Indicator and backlight in office and family equipment.
  5. Flat backlight for LCD’s, switches and symbols.
  6. Light pipe application.
  7. General use.
Part No. Chip Material Lens Color Source Color
DL-H30YGC-1YG60 Gap Water Clear Yellow Green





  1. Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation PD 75 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 80 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 60 80 --- mcd IF=20mA (Note 1)
Viewing Angle * 1/2 --- 60 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 568 --- nm IF=20mA
Dominant Wavelength λd --- 572 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
Forward Voltage VF 1.80 2.30 ---- V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V






LED Emitting Diodes Package Dimension:
3.0mm Round LED Emitting Diodes Through Hole LED Lights 6000 - 7000K 0
