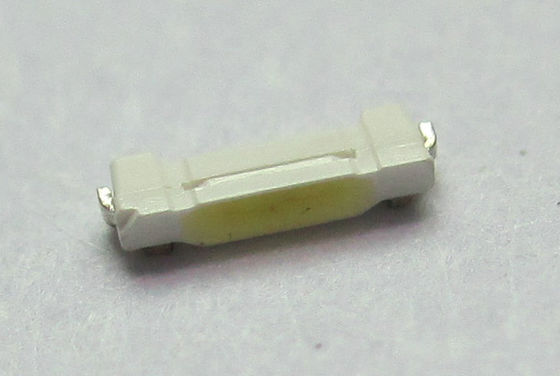

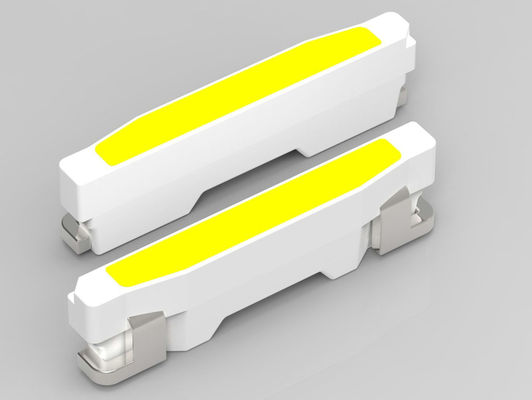

1502 Package Warm White SMD LED 020 Side view Chromaticity Coordinates X 0.43 Y 0.40

P-LCC-2 package 020 Size High Power White SMD LED

Features:

• PLCC-2 package.
• High power LED type.
• White package.
• Optical indicator.
• Colorless clear window.
• Ideal for backlight and light pipe application.
• Inter reflector.
• Wide viewing angle.
• Very long operating life.
• Instant light (less than 100 ns).
• Reading lights (car, bus, aircraft).
• Mini_ accent/Up lighters/Down lighters/Orientation.
• Bollards/Security/Garden.
• Cove/Under shelf/Task.
• Automotive rear combination lamps.
• Indoor/Outdoor Commercial and Residential Architectural.
• Edge_ lit signs (Exit, point of sale).
• LCD Backlights/Light Guides.
• Designed for high current operation.
• Low thermal resistance.
• Suitable for automatic placement equipment.
• Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
• The product itself will remain within RoHS compliant Version.

Descriptions:

• The TOP 020 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.


Applications:

• Reading lights (car, bus, aircraft).
• Mini_ accent/Up lighters/Down lighters/Orientation.
• Bollards/Security/Garden.
• Cove/Under shelf/Task.
• Automotive rear combination lamps.
• Indoor/Outdoor Commercial and Residential Architectural.
• Edge_ lit signs (Exit, point of sale).
• LCD Backlights/Light Guides.

Absolute Maximum Ratings at Ta=25℃

Electrical Optical Characteristics at Ta=25℃

Notes:

• Luminous Intensity Measurement allowance is ± 10%.
• θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
• It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.


P-LCC-2 package 020 Size High Power Package Dimension:




Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)

CIE Chromaticity Diagram:



Chromaticity Coordinates Specifications for Bin Rank:

(IF=20mA, Ta=25℃)

Notes:

1. Color coordinates measurement allowance is ± 0.01.
2. One delivery will include up to two consecutive color ranks and three luminous intensity ranks of the products the quantity-ratio of the ranks is decided by DUOBLE LIGHT
