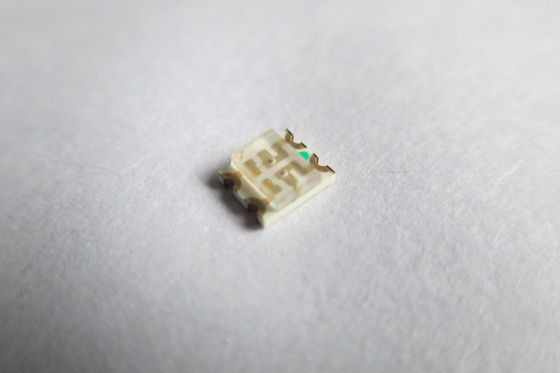

Common Anode Rgb SMD LED Components 1.10mm Height 1210 Package Full Color Chip

Common Anode Rgb SMD LED Components 1.10mm Height 1210 Package Full Color Chip

Common Anode Rgb SMD LED Components 1.10mm Height 1210 Package Full Color Chip

Product Details:

Place of Origin: China (mainland)
Brand Name: Double Light
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB1210RGBC-A1

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs/Real
Price: US$ 0.022-0.023. per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: 1210 RGB SMD LEDs Package: SMD LED
Emitted Color: RED GREEN BLUE Product Number: DL-PCB0606RGBC-C2
Color Temperature: R620-630nm G515-530nm B 455-470 Luminous Intensity: 900-1200mcd(R) 2000-2300(G) 1000-1300Mcd(B)
Forward Voltage @20ma: 2.0-2.2v 2.8-3.0v 2.8-3.0v Viewing Angle: 120 Deg

Common Anode Rgb SMD LED Components 1.10mm Height 1210 Package Full Color Chip

1.1mm Height 1210 Size Full-Color Chip LEDs



Features:



  • Package in 8mm tape on 7’’diameter reel.
  • White package.
  • Optical indicator.
  • Colorless clear window.
  • Ideal for backlight and light pipe application.
  • Inter reflector.
  • Wide viewing angle.
  • Suitable for vapor-phase reflow, infrared reflow and wave solder processes.
  • Compatible with automatic placement equipment.
  • Available on tape and reel (12mm Tape).
  • The product itself will remain within RoHS compliant Version.



Descriptions:

  • The SMD0606RGB is available in soft red, orange, yellow, green, blue and white. Due to the Package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



  • Applications:
  • Automotive: Backlight in dashboards and switches.
  • Telecommunication: Indicator and backlight in telephone and fax.
  • Indicator and backlight for audio and video equipment.
  • Indicator and backlight in office and family equipment.
  • Flat backlight for LCD’s, switches and symbols.
  • Light pipe application.
  • General use.



  • Part No. Chip Material Lens Color Source Color
    DL-PCB1210RGBC-A1 R AlGaInP Water Clear Hyper Red
    G InGaN Pure Green
    B InGaN Blue



















Absolute Maximum Ratings at Ta=25℃

Parameters Symbol MAX Unit
Power Dissipation PD Hyper Red 75 mW
Pure Green 115
Blue 115

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP Hyper Red 100 mA
Pure Green 100
Blue 100
Continuous Forward Current IF Hyper Red 25 mA
Pure Green 25
Blue 25
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD Hyper Red 2000 V
Pure Green 1000
Blue 1000
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃
Soldering Temperature Tsld 260℃ for 5 Seconds




0606 RGB SMD LEDs Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Hyper Red 200 380 --- mcd

IF=20mA

(Note 1)

Pure Green 300 500 ---
Blue 100 210 ---
Viewing Angle 1/2 Hyper Red --- 120 --- Deg

IF=20mA

(Note 2)

Pure Green --- 120 ---
Blue --- 120 ---
Peak Emission Wavelength λp Hyper Red --- 632 --- nm

IF=20mA

(Measurement

@Peak)

Pure Green --- 520 ---
Blue --- 468 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm

IF=20mA

(Note 3)

pure Green --- 525 ---
Blue --- 470 ---
Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
Pure Green --- 35 ---
Blue --- 25 ---
Forward Voltage VF Hyper Red 1.80 2.20 2.40 V IF=20mA
Pure Green 3.00 3.30 3.80
Blue 3.00 3.30 3.80
Reverse Current IR Hyper Red --- --- 10 µA VR=5V
Pure Green 50
Blue 50




Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



0606 RGB SMD LEDs Package Dimension:



Common Anode Rgb SMD LED Components 1.10mm Height 1210 Package Full Color Chip

Typical Electrical / Optical Characteristics Curves

  • (25℃ Ambient Temperature Unless Otherwise Noted)
  • CIE Chromaticity Diagram:

  • Hyper Red:Common Anode Rgb SMD LED Components 1.10mm Height 1210 Package Full Color Chip

  • Pure Green:Common Anode Rgb SMD LED Components 1.10mm Height 1210 Package Full Color ChipBlue:Common Anode Rgb SMD LED Components 1.10mm Height 1210 Package Full Color Chip
  •
  • Reliability Test Items And Conditions (Per Chip):
  • The reliability of products shall be satisfied with items listed below:

    Confidence level: 90%.

    LTPD: 10%.

    1) Test Items and Results:

    No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
    1 Resistance to Soldering Heat 6 Min

    Tsld=260±5℃,

    Min. 5sec

    25pcs 0/1
    2 Thermal Shock 300 Cycles

    H: +100℃ 5min ∫ 10 sec

    L: -10℃ 5min

    25pcs 0/1
    3 Temperature Cycle 300 Cycles

    H: +100℃ 15min ∫ 5min

    L: -40℃ 15min

    25pcs 0/1
    4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
    5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
    6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
    7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1



    2) Criteria for Judging the Damage:

    Item Symbol Test Conditions Criteria for Judgment
    Min Max
    Forward Voltage VF IF=20mA --- F.V.*)×1.1
    Reverse Current IR VR=5V --- F.V.*)×2.0
    Luminous Intensity IV IF=20mA F.V.*)×0.7 ---
