Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height With Colorless Clear Window

Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height With Colorless Clear Window

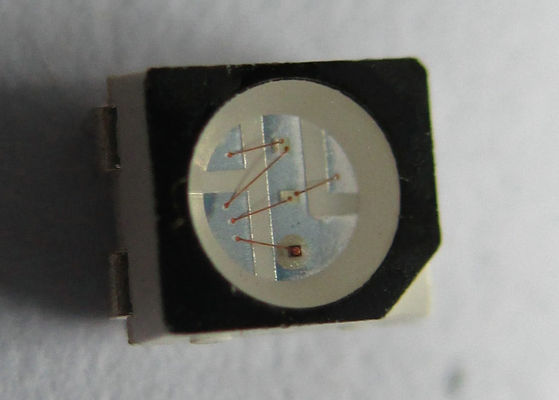

    • Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear Window

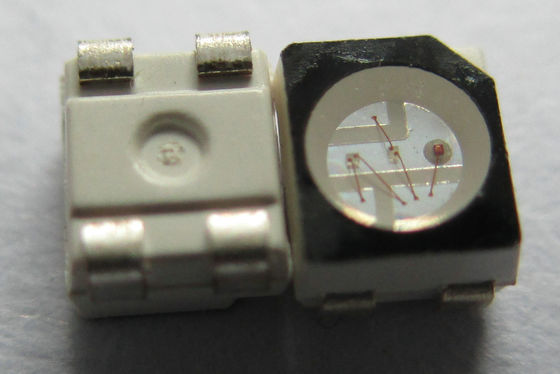

    • Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear Window

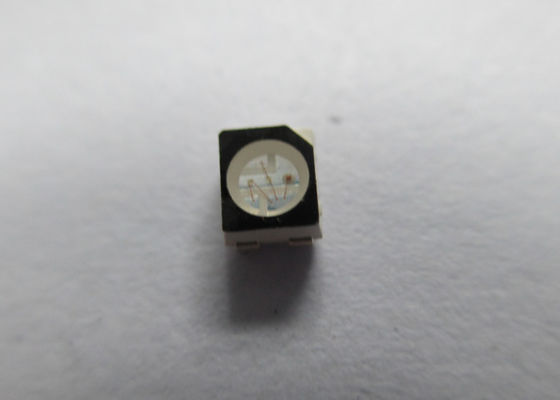

    • Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear Window

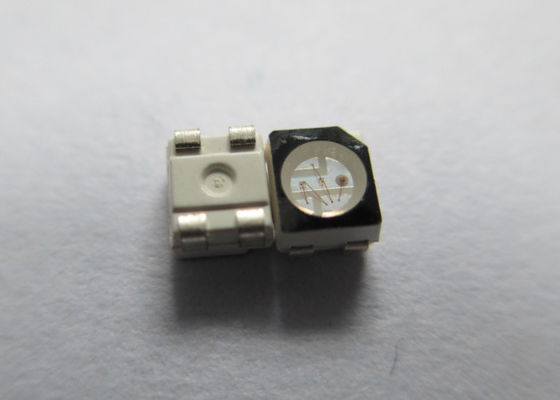

    • Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear Window
  • Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear Window

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: Double Light
    Certification: ISO9001:2008/ROHS
    Model Number: DL-TOP3528RGBC-001

    Payment & Shipping Terms:

    Minimum Order Quantity: 2,000pcs/Real
    Price: US$ 0.022-0.023. per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 3528 RGB SMD LEDs Package: TOP 2016 SMD LED
    Emitted Color: RED GREEN BLUE Product Number: DL-TOP3528RGBC-001
    Color Temperature: R620-630nm G515-530nm B 455-470 Luminous Intensity: 500-700mcd(R) 1400-1600(G) 700-900Mcd(B)
    Forward Voltage @20ma: 2.0-2.2v 2.8-3.0v 2.8-3.0v Viewing Angle: 120 Deg

    ​1.90mm Height 3528 Rgb SMD LED Top View 3528 Rgb Led With Colorless Clear Window

    • Features:
    • P-LCC-4 package.
    • White package.
    • Optical indicator.
    • Colorless clear window.
    • Ideal for backlight and light pipe application.
    • Inter reflector.
    • Low current (2mA) operation.
    • Wide viewing angle.
    • Suitable for automatic placement equipment.
    • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
    • Available on tape and reel (8mm Tape).
    • The product itself will remain within RoHS compliant Version.



    • Descriptions:
    • The 3528 is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



    • Applications:
    • Automotive: Backlight in dashboards and switches.
    • Telecommunication: Indicator and backlight in telephone and fax.
    • Indicator and backlight for audio and video equipment.
    • Indicator and backlight in office and family equipment.
    • Flat backlight for LCD’s, switches and symbols.
    • Light pipe application.
    • General use.
    • Package Dimension:Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear Window
    • Absolute Maximum Ratings at Ta=25
    • Parameters Symbol Max. Unit
      Power Dissipation PD Hyper Red 72 mW
      Pure Green 100
      Blue 100

      Peak Forward Current

      (1/10 Duty Cycle, 0.1ms Pulse Width)

      IFP Hyper Red 100 mA
      Pure Green 100
      Blue 100
      Continuous Forward Current IF Hyper Red 30 mA
      Pure Green 25
      Blue 25
      Reverse Voltage VR 5 V
      Electrostatic Discharge (HBM) ESD 400 V
      Operating Temperature Range Topr -40℃ to +85℃
      Storage Temperature Range Tstg -40℃ to +100℃
      Soldering Temperature Tsld 260℃ for 5 Seconds









      Electrical Optical Characteristics at Ta=25

      Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
      Luminous Intensity IV Hyper Red 90 170 --- mcd

      IF=20mA

      (Note 1)

      Pure Green 350 650 ---
      Blue 80 150 ---
      Viewing Angle 1/2 Hyper Red --- 120 --- Deg

      IF=20mA

      (Note 2)

      Pure Green --- 120 ---
      Blue --- 120 ---
      Peak Emission Wavelength λp Hyper Red --- 640 --- nm

      IF=20mA

      (Measurement

      @Peak)

      Pure Green --- 518 ---
      Blue --- 468 ---
      Dominant Wavelength λd Hyper Red --- 630 --- nm

      IF=20mA

      (Note 3)

      Pure Green --- 525 ---
      Blue --- 470 ---
      Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
      Pure Green --- 35 ---
      Blue --- 25 ---
      Forward Voltage VF Hyper Red 1.80 2.00 2.40 V IF=20mA
      Pure Green 3.00 3.30 4.00
      Blue 3.00 3.30 4.00
      Reverse Current IR Hyper Red --- --- 10 µA VR=5V
      Pure Green 50
      Blue 50



      Notes:

    • Luminous Intensity Measurement allowance is ± 10%.
    • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
    •

    • Typical Electrical / Optical Characteristics Curves
    • (25℃ Ambient Temperature Unless Otherwise Noted)

      CIE Chromaticity Diagram:

    • Hyper Red:Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear Window

    • Pure Green:Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear WindowBlue:Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear Window
    •

      Notes:

    • Color coordinates measurement allowance is ± 0.01.
    • One delivery will include up to two consecutive color ranks and three luminous intensity ranks of the products the quantity-ratio of the ranks is decided by Double liGHT
    • Reliability Test Items And Conditions:
    • The reliability of products shall be satisfied with items listed below:

      Confidence level: 90%.

      LTPD: 10%.

      1) Test Items and Results:

      No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
      1 Resistance to Soldering Heat 6 Min

      Tsld=260±5℃,

      Min. 5sec

      25pcs 0/1
      2 Thermal Shock 300 Cycles

      H: +100℃ 5min ∫ 10 sec

      L: -10℃ 5min

      25pcs 0/1
      3 Temperature Cycle 300 Cycles

      H: +100℃ 15min ∫ 5min

      L: -40℃ 15min

      25pcs 0/1
      4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
      5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
      6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
      7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1



      2) Criteria for Judging the Damage:

      Item Symbol Test Conditions Criteria for Judgment
      Min Max
      Forward Voltage VF IF=20mA --- F.V.*)×1.1
      Reverse Current IR VR=5V --- F.V.*)×2.0
      Luminous Intensity IV IF=20mA F.V.*)×0.7 ---



      *) F.V.: First Value.











    • Reel Dimensions:
    • Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear Window

      Carrier Tape Dimensions:

      Loaded quantity 2000PCS per reel.Rgb SMD LED Top View 3528 Rgb Led 1.90mm Height  With Colorless Clear Window
