0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K

0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K
0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K 0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K 0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K

Large Image :  0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K

Product Details:
Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-TOP3014W57-1W120
Payment & Shipping Terms:
Minimum Order Quantity: 3000PCS
Price: US$ 0.012-0.015 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description

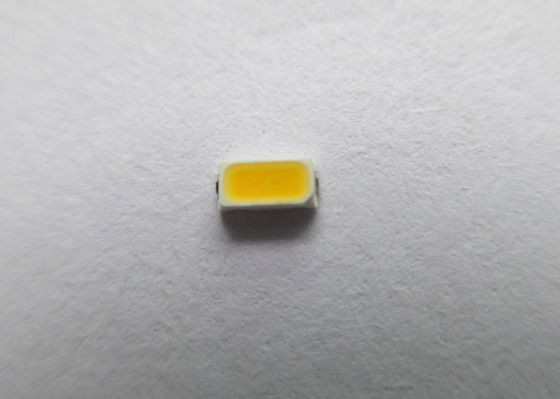

Product Name: 3014 White SMD LED Package: Pack 3014
Emitted Color: White Chromaticity Coordinates: 6000-7000k
Model Number: DL-TOP3014W57-1W120 Lens Color: White Diffused
Forward Voltage @60ma: 3.0-3.4v Luminous Flux: 12-14lm
Viewing Angle: 120 Deg Power Dissipation: 200mW
High Light:

brightest smd led chip

,

led smd chip

 0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K

  • Features:
  • P-LCC-2 package.
  • White package.
  • Optical indicator.
  • Colorless clear window.
  • Ideal for backlight and light pipe application.
  • Inter reflector.
  • Wide viewing angle.
  • Suitable for automatic placement equipment.
  • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  • Available on tape and reel (8mm Tape).
  • The product itself will remain within RoHS compliant Version.



  • Descriptions:
  • The TOP 3014 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.



  • Applications:
  • Automotive: Backlighting in dashboards and switches.
  • Telecommunication: Indicator and backlight in telephone and fax
  • Indicator and backlight for audio and video equipment.
  • Indicator and backlight in office and family equipment.
  • Flat backlight for LCD’s, switches and symbols.
  • Light pipe application.
  • General use.


 Package Dimension:
0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K 0




Part No.Chip MaterialLens ColorSource Color
DL-TOP3014W57-1W120InGaN  YellowDiffused

 White








  • Absolute Maximum Ratings at Ta=25
ParametersSymbolMax.Unit
Power DissipationPD95mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP100mA
Continuous Forward CurrentIF35mA
Reverse VoltageVR5V
Electrostatic Discharge (HBM)ESD1000V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25

ParametersSymbolMin.Typ.Max.UnitTest Condition
Luminous Intensity *IV23502850---mcdIF=30mA (Note 1)
Luminous FluxΦ11---13lmIF=30mA
Viewing Angle *2θ1/2---120---DegIF=30mA (Note 2)
Chromaticity Coordinatesx---0.32--- IF=30mA (Note 3)
y---0.33---
Color TemperatureTC5300---6000KIF=30mA
Forward VoltageVF3.003.303.80VIF=20mA
Reverse CurrentIR------10µAVR=5V


Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.


Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K 1
CIE Chromaticity Diagram:
0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K 2


Chromaticity Coordinates Specifications for Bin Rank:

(IF=20mA, Ta=25℃)

BIN CodeXYBIN CodeXYBIN CodeXY
G10.44990.4273G20.45490.4358
0.45490.43580.45990.4443
0.45950.43360.46450.4421
0.45450.42510.45950.4336

Notes:

  1. Color coordinates measurement allowance is ± 0.01.
  2. One delivery will include up to two consecutive color ranks and three luminous intensity ranks of the products the quantity-ratio of the ranks is decided by DUOBLE LIGHT


Reel Dimensions:
0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K 3


Carrier Tape Dimensions:
Loaded quantity 3000 PCS Per reel.
0.80mm Height Top View White LED SMD Chip Promotion 3014 6000 -7500K 4
