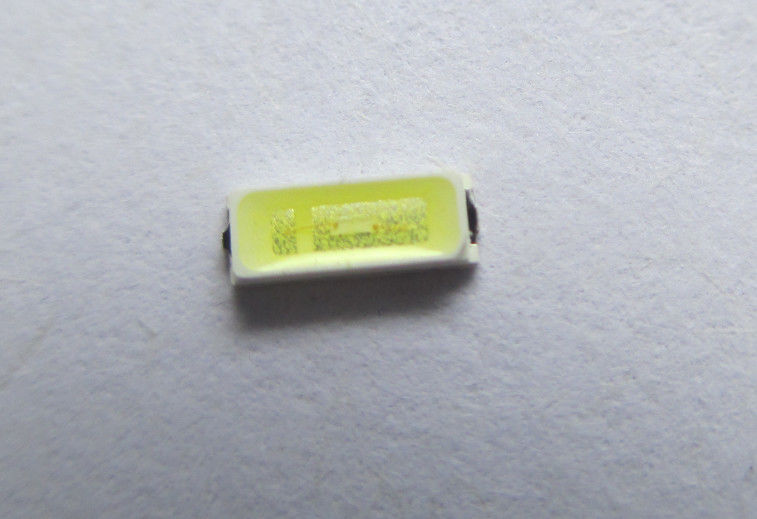

Yellow Diffused 0.55mm Height Top View White Rgb SMD LED Chip InGaN

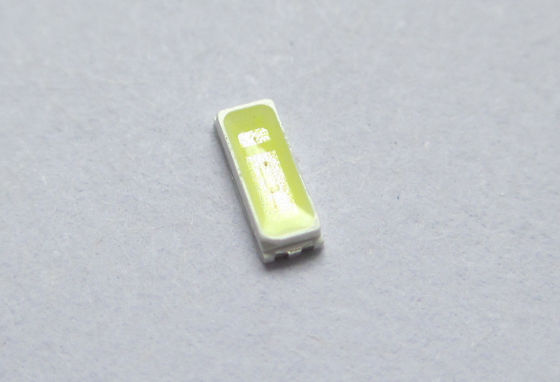

Yellow Diffused 0.55mm Height Top View White Rgb SMD LED Chip InGaN

Features:

1. White package.
2. Optical indicator.
3. Colorless clear window.
4. Ideal for backlight and light pipe application.
5. Inter reflector.
6. Typical color temperature: 6500 K.
7. Wide viewing angle.
8. Suitable for automatic placement equipment.
9. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
10. The product itself will remain within RoHS compliant Version.

Descriptions:

1. The TOP2016 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

1. Automotive: Backlighting in dashboards and switches.
2. Telecommunication: Indicator and backlight in telephone and fax
3. Indicator and backlight for audio and video equipment.
4. Indicator and backlight in office and family equipment.
5. Flat backlight for LCD’s, switches and symbols.
6. Light pipe application.
7. General use.

• Package Dimension:
•
• Absolute Maximum Ratings at Ta=25℃

• Parameters	Symbol	Max.	Unit
  Power Dissipation	PD	210	mW
  Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	120	mA
  Continuous Forward Current	IF	60	mA
  Reverse Voltage	VR	5	V
  Electrostatic Discharge (HBM)	ESD	1000	V
  Operating Temperature Range	Topr	-40℃ to +80℃
  Storage Temperature Range	Tstg	-40℃ to +85℃
  Soldering Temperature	Tsld	260℃ for 5 Seconds

• Electrical Optical Characteristics at Ta=25℃

  Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
  Luminous Flux *	Фv	19	23	25	lm	IF=60mA (Note 1)
  Viewing Angle *	2θ1/2	---	120	---	Deg	IF=60mA (Note 2)
  Chromaticity Coordinates	x	---	0.32	---		IF=60mA (Note 3)
  	y	---	0.33	---
  Color Temperature	CCK	5000	---	8000	K	IF=60mA
  Color Rendering Index	RA	70	75	----		IF=60mA
  Forward Voltage	VF	3.00	3.30	3.80	V	IF=60mA
  Reverse Current	IR	---	---	10	µA	VR=5V



  Notes:

• Luminous Intensity Measurement allowance is ± 10%.
• θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
• It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.
• Typical Electrical / Optical Characteristics Curves

• (25℃ Ambient Temperature Unless Otherwise Noted)

  CIE Chromaticity Diagram:

•

• Chromaticity Coordinates Specifications for Bin Rank

• Color Binning
  X	0.342	0.280	0.297	0.339
  Y	0.382	0.322	0.280	0.318

  Notes:

• Color coordinates measurement allowance is ± 0.01.
• One delivery will include up to two consecutive color ranks and three luminous intensity ranks of the products the quantity-ratio of the ranks is decided by Duoble Lihght
•
• Reliability Test Items And Conditions:

• The reliability of products shall be satisfied with items listed below:

  Confidence level: 90%.

  LTPD: 10%.

  1) Test Items and Results:

  No.	Test Item	Test Hours/Cycles	Test Conditions	Sample Size	Ac/Re
  1	Resistance to Soldering Heat	6 Min	Tsld=260±5℃, Min. 5sec	25pcs	0/1
  2	Thermal Shock	300 Cycles	H: +100℃ 5min ∫ 10 sec L: -10℃ 5min	25pcs	0/1
  3	Temperature Cycle	300 Cycles	H: +100℃ 15min ∫ 5min L: -40℃ 15min	25pcs	0/1
  4	High Temperature Storage	1000Hrs.	Temp: 100℃	25pcs	0/1
  5	DC Operating Life	1000Hrs.	IF=20mA	25pcs	0/1
  6	Low Temperature Storage	1000Hrs.	Temp: -40℃	25pcs	0/1
  7	High Temperature/ High Humidity	1000Hrs.	85℃/85%RH	25pcs	0/1





  2) Criteria for Judging the Damage:

  Item	Symbol	Test Conditions	Criteria for Judgment
  			Min	Max
  Forward Voltage	VF	IF=20mA	---	F.V.*)×1.1
  Reverse Current	IR	VR=5V	---	F.V.*)×2.0
  Luminous Intensity	IV	IF=20mA	F.V.*)×0.7	---

  Reel Dimensions:
