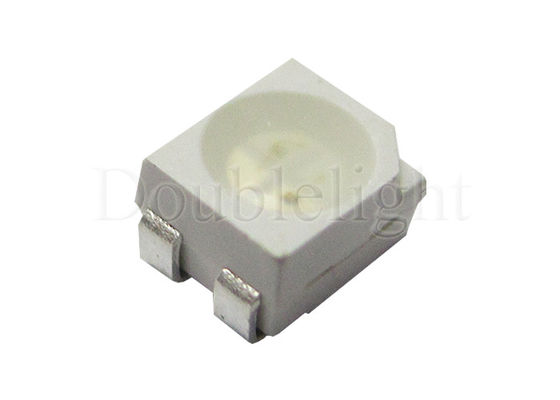

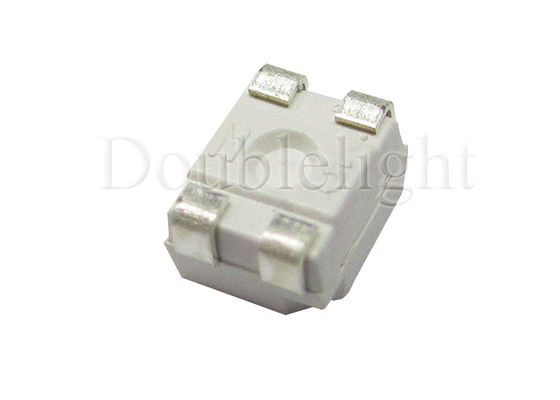

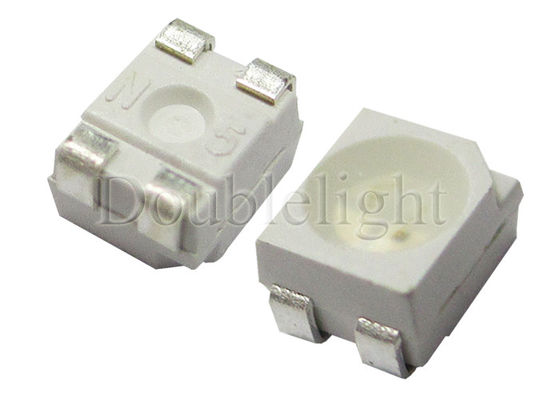

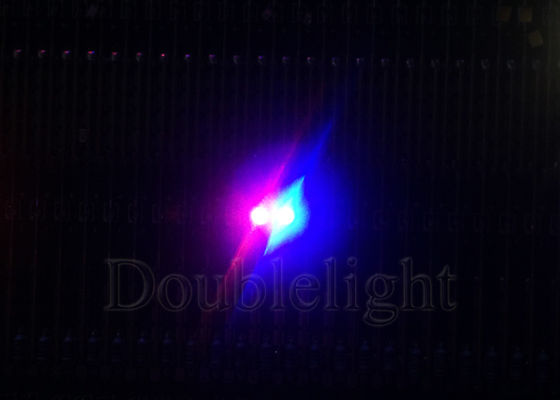

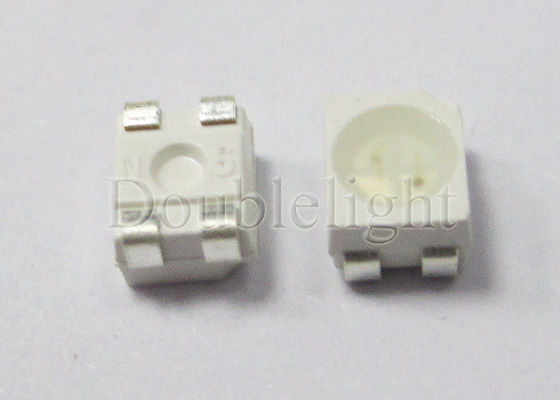

Bi Colour Led Hyper LED Emitting Diodes 1.90mm Height Top View PLCC4 Surface Mounted

Bi Colour Led Hyper LED Emitting Diodes 1.90mm Height Top View PLCC4 Surface Mounted
Bi Colour Led Hyper LED Emitting Diodes 1.90mm Height Top View PLCC4 Surface Mounted Bi Colour Led Hyper LED Emitting Diodes 1.90mm Height Top View PLCC4 Surface Mounted Bi Colour Led Hyper LED Emitting Diodes 1.90mm Height Top View PLCC4 Surface Mounted Bi Colour Led Hyper LED Emitting Diodes 1.90mm Height Top View PLCC4 Surface Mounted Bi Colour Led Hyper LED Emitting Diodes 1.90mm Height Top View PLCC4 Surface Mounted

Large Image :  Bi Colour Led Hyper LED Emitting Diodes 1.90mm Height Top View PLCC4 Surface Mounted

Product Details:
Place of Origin: China
Brand Name: Double Light
Certification: ISO9001:2008,Rosh
Model Number: DL-TOP3528SRBC-B
Payment & Shipping Terms:
Minimum Order Quantity: 2000 PCS
Price: usd 0.03/pcs
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 15-20 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Type: SMD 3528 LED Emitting Diodes Max. Reverse Voltage: 5V
Light Color: Hyper Red & Blue Led Chips: Epistar Led Diodes
Chip Material: Hyper Red:AlGaInP Blue:InGaN Power Dissipation: Hyper Red:80mW Blue:100mW
Continuous Forward Current: 25mA Luminous Intensity: Hyper Red:250-500mcd Blue:350-550mcd
Viewing Angle: 120Deg Forward Voltage: Hyper Red:1.6-2.4V Blue:2.8-3.8V
Peak Emission Wavelength: Hyper Red:632nm Blue:470nm Dominant Wavelength: Hyper Red:624nm Blue:465nm
High Light:

power led chip

,

light emitting diode

smd led 3528 Bi Colour Led Hyper Red blue LED Emitting Diodes 1.90mm Height Top View PLCC4 surface mount led




Features:

  1. P-LCC-4 package.
  2. White package.
  3. Optical indicator.
  4. Colorless clear window.
  5. Ideal for backlight and light pipe application.
  6. Inter reflector.
  7. Wide viewing angle.
  8. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  9. Computable with automatic placement equipment.
  10. Available on tape and reel (8mm Tape).
  11. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The TOP3528 series is available in soft orange, green, blue and yellow. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other.


Applications:

  1. Automotive: Backlight in dashboards and switches.
  2. Telecommunication: Indicator and backlight in telephone and fax
  3. Indicator and backlight for audio and video equipment.
  4. Indicator and backlight in office and family equipment.
  5. Flat backlight for LCD’s, switches and symbols.
  6. Light pipe application.
  7. General use.

SMD Bi Color LED Emitting Diodes Package Dimension:

Bi Colour Led Hyper LED Emitting Diodes 1.90mm Height Top View PLCC4 Surface Mounted 0

Part No. Chip Material Lens Color Source Color
DL-TOP3528SRBC-B AlGaInP Water Clear Hyper Red
InGaN Blue

Notes:

  1. All dimensions are in millimeters.
  2. Tolerance is ± 0.10mm (.004″) unless otherwise specified.
  3. Specifications are subject to change without notice.



Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Emitting Color Max. Unit
Power Dissipation PD Hyper Red 80 mW
Blue 100

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP Hyper Red 100 mA
Blue 100
Continuous Forward Current IF Hyper Red 25 mA
Blue 25
Reverse Voltage VR   5 V
Operating Temperature Range Topr   -40℃ to +80℃
Storage Temperature Range Tstg   -40℃ to +85℃
Soldering Temperature Tsld   260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Hyper Red 250 500 --- mcd

IF=20mA

(Note 1)
Blue 350 550 ---
Viewing Angle 2θ1/2 Hyper Red --- 120 --- Deg

IF=20mA

(Note 2)
Blue --- 120 ---
Peak Emission Wavelength λp Hyper Red --- 632 --- nm IF=20mA
Blue --- 470 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm

IF=20mA

(Note 3)
Blue --- 465 ---
Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
Blue --- 35 ---
Forward Voltage VF Hyper Red 1.60 2.00 2.40 V IF=20mA
Blue 2.80 3.40 3.80
Reverse Current IR Red/Blue --- --- 10 µA VR=5V


Notes:

1. Luminous Intensity Measurement allowance is ± 10%.

2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.





Why choose DOUBLE LIGHT?
1. Well-known chip material
2. 99.99% gold wire bonding
3. 3 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.



Bi Colour Led Hyper LED Emitting Diodes 1.90mm Height Top View PLCC4 Surface Mounted 1
