1W High Power 3535 Led Emitting Diode White LED PCB3535 14mm Aluminum Base Plate

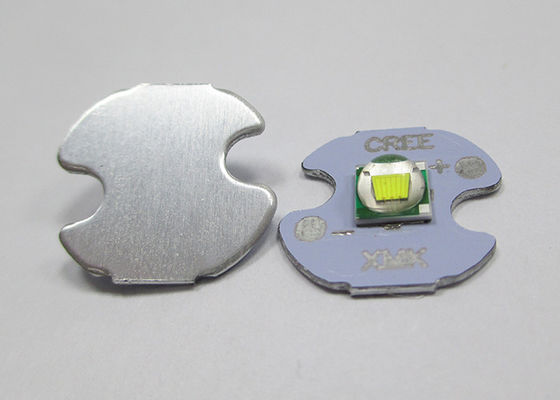

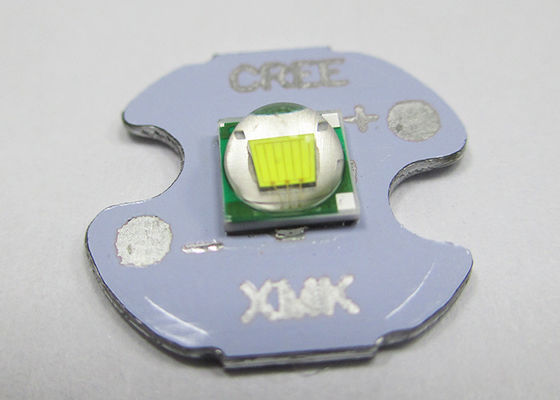

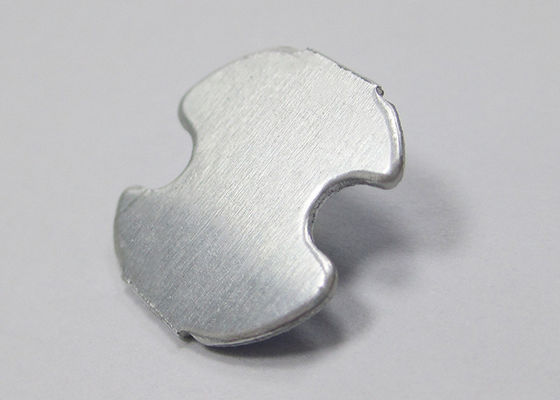

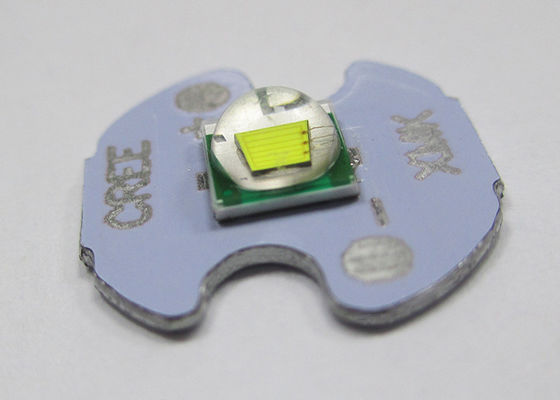

Large Image : 1W High Power 3535 Led Emitting Diode White LED PCB3535 14mm Aluminum Base Plate

Product Details:

Place of Origin:	China
Brand Name:	Double Light
Certification:	ISO9001:2008,Rosh
Model Number:	DL-PCB3535W100-1W

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	usd 0.28
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	10-15 working days after received your payment
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	15,000,000pcs per Day

Contact Now

Detailed Product Description

Type:	PCB 3535 High-Powe LED Emitting Diodes	Max. Reverse Voltage:	5V
Light Color:	White	Color Temperature:	9000-11000K
Forward Voltage:	2.8-3.8V	Luminous Flux:	100-130lm
Forward Current:	350mA	Power Dissipation:	1000mW
Viewing Angle:	120Deg	Chromaticity Coordinates:	X:0.27 Y:0.28
Highlight:	flat led diode , power led chip

1W High Power 3535 led emitting diode White LED PCB3535 14mm Aluminum Base Plate power led diode for led circuit board

DL-PCB3535W100-1W.pdf

Features:

Small package with high efficiency
Long operating life.
Available in white, green, blue, red, yellow, Amber
Typical color temperature: 9000-11000 K.
View angle: 120°.
Low voltage DC operated.
The product itself will remain within RoHS compliant Version.
ESD protection.

Applications:

Reading lights (car, bus, aircraft).
Portable (flashlight, bicycle).
Mini accent/Uplighters/Downlighters/Orientation.
Bollards/Security/Garden.
Cove/Undershelf/Task.
Automotive rear combination lamps.
Traffic signaling/Beacons/ Rail crossing and Wayside.
Indoor/Outdoor Commercial and Residential Architectural.
Edge lit signs (Exit, point of sale).
LCD Backlights/Light Guides.

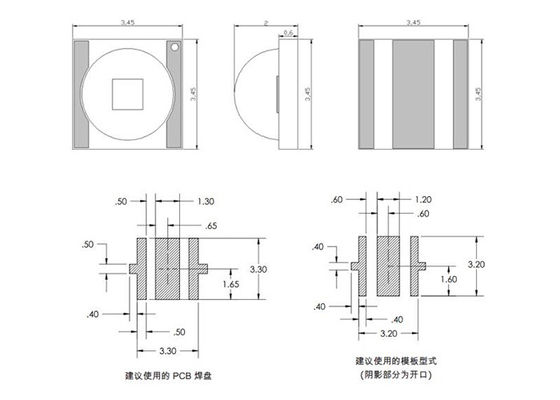

Recommended Solder Pad Design
1W High Power 3535 Led Emitting Diode White LED PCB3535 14mm Aluminum Base Plate 0

Part No.	Chip Material	Lens Color	Source Color
DL-PCB3535W100-1W	InGaN	Yellow Diffused	White

All dimensions are in millimeters.
Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	1000	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	500	mA
Forward Current	IF	350	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge (HBM)	ESD	1000	V
Operating Temperature Range	Topr	-10℃ to +70℃
Storage Temperature Range	Tstg	-20℃ to +80℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Flux	Φ	100	120	130	lm	If=350mA (Note 1)
Viewing Angle	2θ(1/2)	---	120	---	Deg	If=350mA
Chromaticity Coordinates	x	---	0.27	---		If=350mA
Chromaticity Coordinates	y	---	0.28	---		If=350mA
Color Temperature	TC	9000	---	11000	K	If=350mA
Forward Voltage	VF	2.80	3.40	3.80	V	If=350mA
Reverse Current	IR	---	---	10	µA	VR=5V

Notes:
1. θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

CIE Chromaticity Diagram:

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)
1W High Power 3535 Led Emitting Diode White LED PCB3535 14mm Aluminum Base Plate 2

Why choose DOUBLE LIGHT?
1. Well-known chip material
2. 99.99% gold wire bonding
3. 3 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.

1W High Power 3535 Led Emitting Diode White LED PCB3535 14mm Aluminum Base Plate 5

Please contact with me to help you find your right product and get your best price.

Tel: 86-755-82853859
Fax: 86-755-83229774
Email:wendy@doublelight.com.cn
Wechat:8613423609933
Skype:wendy@doublelight.com.cn
Whatsapp:+86 134 2360 9933
Facebook:Doublelight
