Super Bright High Power Led Chip 0.45mm White Smd Led Chip For LCD Switch / Symbol

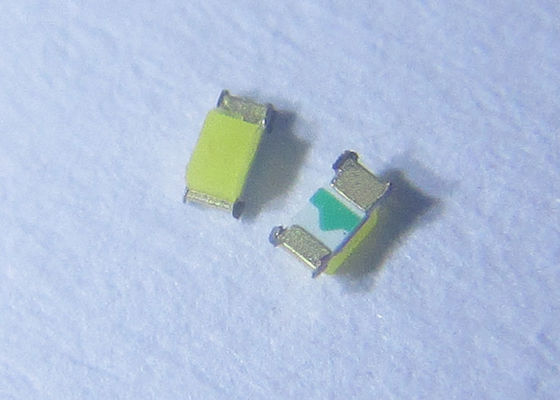

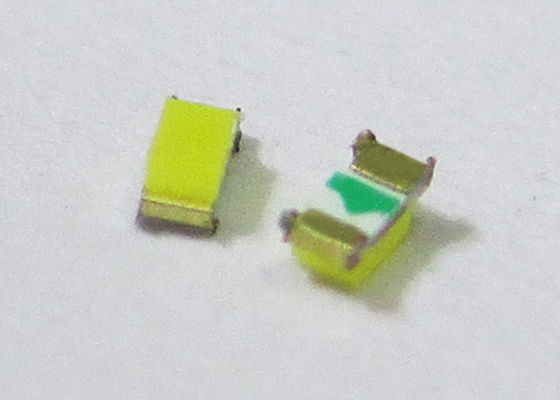

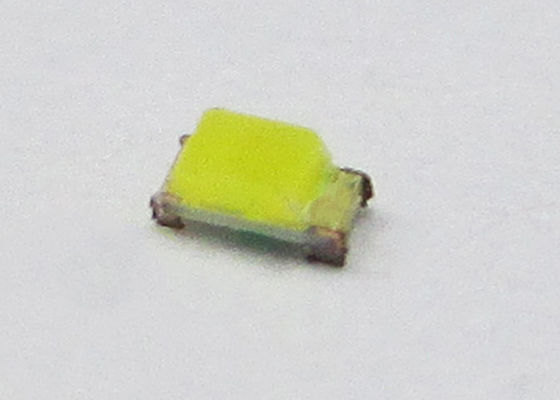

0402 package SMD SMT LED Bulbs Super Bright LED 0.45mm white smd led Chip for LCD switch and symbol

DL-PCB0402W50-1W120.pdf


Features:

1. Package in 8mm tape on 7" diameter reel.
2. Compatible with automatic placement equipment.
3. Compatible with infrared and vapor phase reflow solder process.
4. Mono-color type.
5. The product itself will remain within RoHS compliant Version.


Descriptions:

1. The 0402 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
2. Besides, lightweight makes them ideal for miniature applications, etc.


Applications:

1. Automotive: Backlighting in dashboard and switch.
2. Telecommunication: Indicator and backlighting in telephone and fax.
3. Flat backlight for LCD, switch and symbol.
4. General use.

Absolute Maximum Ratings at Ta=25℃

Electrical Optical Characteristics at Ta=25℃

Notes:

1. Luminous Intensity Measurement allowance is ± 10%.
2. θ_1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

​0402 SMD LED Package Dimension:


Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)




Reel Dimensions:



Carrier Tape Dimensions:
Loaded quantity 3000/4000PCS per reel.




Adcantage:


• Over 10 years work experience technical service team
• Manufacturer direct sale,high quality product and competitive price
• Mix order accepted and free sample
• Make double check strictly and packing carefully.
• We will refund you in case of bad quality issue happens due to our product itself.



Choose DOUBLE LIGHT, your expert LED components nearby!
