| Product Name: | High Power RGB SMD LEDs | Package: | Three Chips (color) In One Package |
|---|---|---|---|
| Emitted Color: | RED GREEN BLUE | Peak Emission Wavelength: | R626nm G528nm B 464nm |
| Luminous Flux: | 20-30ml(R) 30-40ml(G) 5-10ml(B) | Forward Voltage @20ma: | Red 2.0-3.0v Green/Blue:2.8-4.0v |
| Viewing Angle: | 120 Deg | Forward Current: | 150mA |
| Chip Material: | AlGaInP(Red) InGaN(Green/Blue) | Size Of Chip: | 30-35mil, |
| High Light: | smd led chip,smd rgb led |
||

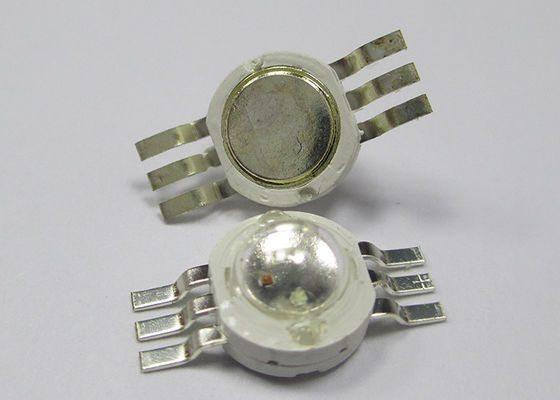

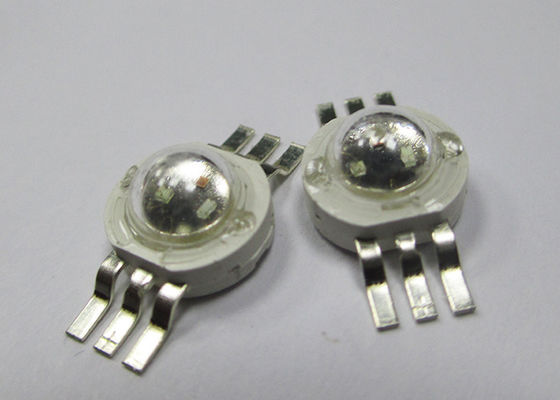

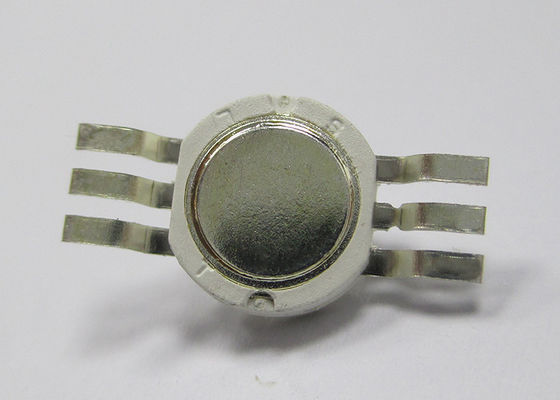

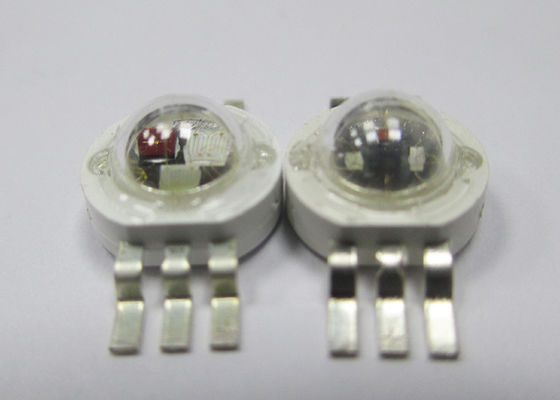

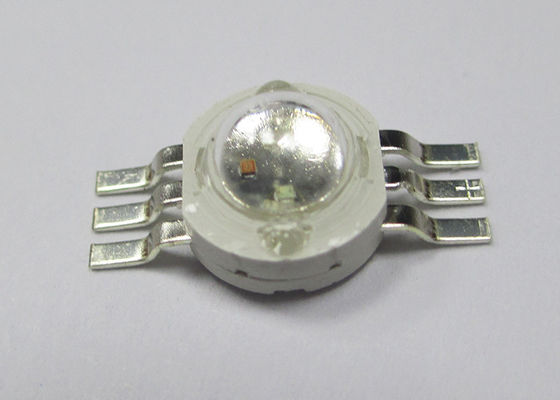

3W RGB 6 PIN RGB LED High Power Lamp Beads smd led chip High Power led light for architectural lighting
Features:
Descriptions:
Applications:
| Part No. | Chip Material | Source Color | |
| DL-HP05RGBC-1.5W | R | AlGaInP | Ultra Red |
| G | InGaN | Pure Green | |
| B | InGaN | Blue | |
Notes:
Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Rating | Units |
| Forward Current | IF | 150 | mA |
|
Peak Pulse Current (tp≤100μs, Duty cycle=0.25) |
I pulse | 230 | mA |
| Reverse Voltage | VR | 5 | V |
| LED Junction Temperature | Tj | 135 | ℃ |
| Operating Temperature Range | Topr | -40 to +80 | ℃ |
| Storage Temperature Range | Tstg | -40 to +100 | ℃ |
| Soldering Time at 260 ℃ (Max.) | Tsol | 5 | Seconds |
Notes:
1. Proper current derating must be observed to maintain junction temperature below the maximum.
2. LEDs are not designed to be driven in reserve bias.
High Power RGB SMD LEDs Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Emitting Color | Min. | Typ. | Max. | Unit | Test Condition |
| Viewing Angle | 2θ1/2 | Full color | --- | 120 | --- | Deg | IF=150mA |
| Forward Voltage | VF | Red | 2.0 | 2.2 | 3.0 | V | IF=150mA |
| Green | 2.8 | 3.2 | 4.0 | ||||
| Blue | 2.8 | 3.5 | 4.0 | ||||
| Peak Emission Wavelength | λp | Red | --- | 625 | --- | nm | IF=150mA |
| Green | --- | 520 | --- | ||||
| Blue | --- | 465 | --- | ||||
| Dominant Wavelength | λd | Red | 620 | 626 | 630 | nm | IF=150mA |
| Green | 525 | 528 | 530 | ||||
| Blue | 460 | 464 | 470 | ||||
| Spectral Line Half-Width | △λ | Red | --- | 25 | --- | nm | IF=150mA |
| Green | --- | 15 | --- | ||||
| Blue | --- | 15 | --- | ||||
| Luminous Flux | Фv | Red | 20 | 30 | --- | lm | IF=150mA |
| Green | 30 | 40 | --- | ||||
| Blue | 5 | 10 | --- |
Notes:
1. Luminous Flux Measurement allowance is ± 10%.
2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
High Power RGB SMD LEDs Mechanical Dimensions:
Carrier Tape Dimensions:
Loaded quantity 2000PCS per reel.
