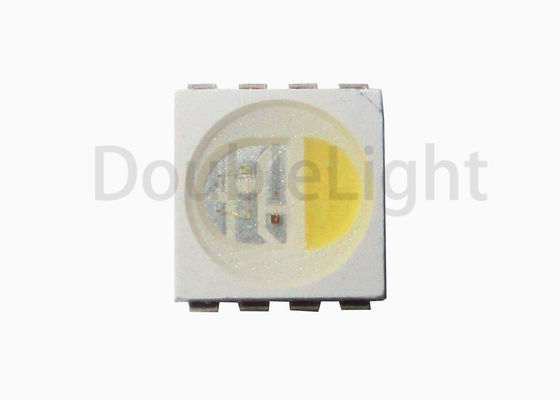

RGBW 5050 Type Rgb LED SMD 8 Pins Diode Full Color Chip LEDs Wide Viewing Angle

Large Image : RGBW 5050 Type Rgb LED SMD 8 Pins Diode Full Color Chip LEDs Wide Viewing Angle

Product Details:

Place of Origin:	China (mainland)
Brand Name:	Double Light
Certification:	ISO9001:2008/ROHS
Model Number:	DL-TOP5050RGBW.

Payment & Shipping Terms:

Minimum Order Quantity:	3,000pcs/Real
Price:	US$ 0.06-0.08. per unit (Pieces)
Packaging Details:	Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time:	5-7 working days after payment received
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	10,000,000pcs per Day

Contact Now

Detailed Product Description

Product Name:

5050 RGBW

Emitted Color:

Red Green Blue White With 8 Pins

Package:

P-LCC-8 Package

Datasheet:

Update

Highlight:

smd led chip

smd rgb led

Datesheet: DL-TOP5050RGBW.pdf LIGHT SOURCE: Red+Green+Blue+White 4 colors

Features:

P-LCC-8 package.
White package.
Optical indicator.
Colorless clear window.
Ideal for backlight and light pipe application.
Inter reflector.
Low current (2mA) operation.
Wide viewing angle.
Suitable for vapor-phase reflow, infrared reflow and wave solder processes.
Computable with automatic placement equipment.
Available on tape and reel (12mm Tape).
The product itself will remain within RoHS compliant Version.

Descriptions:

The 5050 is available in soft red, orange, yellow, green, blue and white. Due to the Package design, the LED has wide viewing angle and optimized light coupling by inter reflector, this feature makes the SMT TOP LED ideal for light pipe Application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

Automotive: Backlight in dashboards and switches.
Telecommunication: Indicator and backlight in telephone and fax.
Indicator and backlight for audio and video equipment.
Indicator and backlight in office and family equipment.
Flat backlight for LCD’s, switches and symbols.
Light pipe application.
General use.

Mechanical Dimensions

RGBW 5050 Type Rgb LED SMD 8 Pins Diode Full Color Chip LEDs Wide Viewing Angle 0

Part No.	Chip Material		Lens Color	Source Color
DL-TOP5050RGBW	R	AlGaInP	Water Clear	Hyper Red
	G	InGaN		Pure Green
	B	InGaN		Blue
	W	InGaN	Yellow Diffused	White

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol		MAX	Unit
Power Dissipation	PD	Hyper Red	60	mW
		Pure Green	95
		Blue	95
		White	105
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	Hyper Red	100	mA
		Pure Green	100
		Blue	100
		White	100
Continuous Forward Current	IF	Hyper Red	25	mA
		Pure Green	25
		Blue	25
		White	25
Reverse Voltage	VR		5	V
Electrostatic Discharge (HBM)	ESD	Hyper Red	2000	V
		Pure Green	1000
		Blue	1000
		White	1000
Operating Temperature Range	Topr		-40℃ to +85℃
Storage Temperature Range	Tstg		-40℃ to +100℃
Soldering Temperature	Tsld		260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Emitting Color	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	IV	Hyper Red	460	720	---	mcd	IF=20mA (Note 1)
		Pure Green	1380	1900	---
		Blue	410	650	---
		White	1500	2300
Viewing Angle *	2θ1/2	RGBW	---	120	---		IF=20mA
Peak Emission Wavelength	λp	Hyper Red	---	632	---	nm	IF=20mA (Measurement @Peak)
		Pure Green	---	520	---
		Blue	---	468	---
Dominant Wavelength	λd	Hyper Red	---	624	---	nm	IF=20mA (Note 3)
		pure Green	---	525	---
		Blue	---	470	---
Spectral Line Half-Width	△λ	Hyper Red	---	20	---	nm	IF=20mA
		Pure Green	---	35	---
		Blue	---	25	---
Forward Voltage	VF	Hyper Red	1.80	2.30	2.40	V	IF=20mA
		Pure Green	3.00	3.30	3.80
		Blue	3.00	3.30	3.80
Reverse Current	IR	RGBW	---	----	10	µA	V_R=5V

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

For more details, please contact us.
