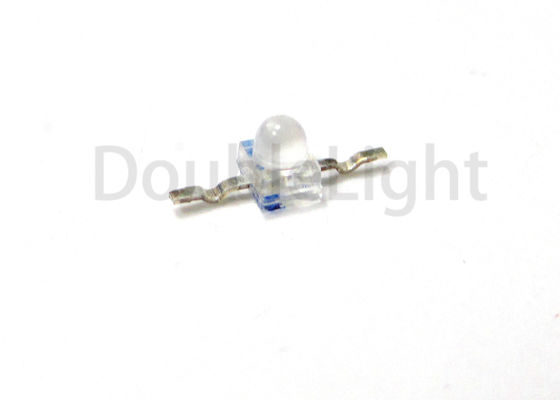

Round Subminiature Axial Blue Chip Led Light Emitting Diode 2.15×2.40mm With 1.80mm Lens

Name: Round Subminiature Axial Blue Chip Led Light Emitting Diode 2.15×2.40mm With 1.80mm Lens
Brand: Double Light
SKU: DL-R18BC-1B20-TR3
Price: 0.068 USD
Availability: InStock
Rating: 4.9 (160 reviews)

Large Image : Round Subminiature Axial Blue Chip Led Light Emitting Diode 2.15×2.40mm With 1.80mm Lens

Product Details:

Place of Origin:	China
Brand Name:	Double Light
Certification:	ISO9001:2008,Rosh
Model Number:	DL-R18BC-1B20-TR3

Payment & Shipping Terms:

Minimum Order Quantity:	5000 PCS
Price:	US$ 0.068-0.08per unit (Pieces) depends on the quantity
Delivery Time:	10 working days after payment received
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	5,000,000pcs per Day

Contact Now

Detailed Product Description

Type:	LED Emitting Diodes	Forward Voltage:	3.0-4.0V
Light Color:	Blue	Wavelength:	468-470nm
Size:	2.15×2.40mm With 1.80mm Lens	Luminous Intensity:	750-1000 Mcd
Viewing Angle:	20°	Datasheet:	Update
High Light:	flat led diode , power led chip

Datasheet:DL-R18BC-1B20-TR3.pdf Emitting color: Blue

1.80mm Round Subminiature Axial Blue Chip LED

Part No.	Chip Material	Lens Color	Source Color
DL-R18BC-1B20-TR3	InGaN	Water clear	Blue

Features:
2.15×2.40mm with 1.80mm lens.
Small double-end package.
EIA Std. package.
Mono-color type.
High reliability.
Low forward voltage.
Compatible with automatic placement equipment.
The product itself will remain within RoHS compliant version.
Descriptions:

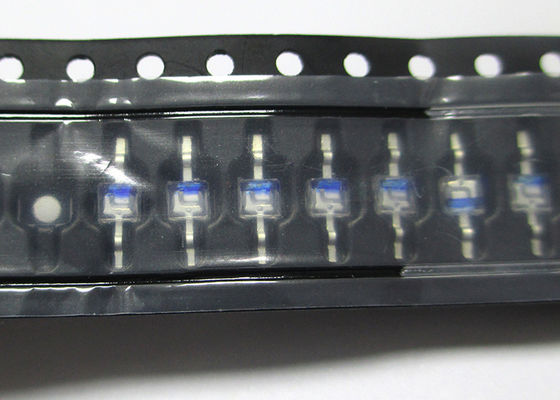

The R18 SMD taping is much smaller than leaded components. Thus enable smaller board size. Higher packing density. Reduced storage space and finally smaller equipment to be obtained.
Besides, light weight makes them ideal for miniature applications.
Furthermore by automation assembly machines the accuracy is anticipated.
Applications:
Small indicator for indoor applications.
Flat backlight for LCD, switches and symbols.
Indicator and backlight in office equipment.
Indicator and backlight for battery driven equipment.
Indicator and backlight for audio and video equipment.
Automotive: Backlighting in dashboards and switches.
Telecommunication: Indicator and backlighting in telephone and fax.

Package Dimension:

Round Subminiature Axial Blue Chip Led Light Emitting Diode 2.15×2.40mm With 1.80mm Lens 0

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max	Unit
Power Dissipation	PD	105	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Continuous Forward Current	IF	25	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge (HBM)	ESD	1000	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity *	IV	750	1000	---	mcd	IF=20mA (Note 1)
Viewing Angle *	2θ1/2	---	20	---	Deg	IF=20mA (Note 2)
Peak Emission Wavelength	λp	---	468	---	nm	IF=20mA
Dominant Wavelength	λd	---	470	---	nm	IF=20mA (Note 3)
Spectral Line Half-Width	△λ	---	25	---	nm	IF=20mA
Forward Voltage	VF	3.00	3.30	4.00	V	IF=20mA
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:
1. Luminous Intensity Measurement allowance is ± 10%.

2. θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

For more details, please contact us.

Email: Facebook@doublelight.com.cn

Round Subminiature Axial Blue Chip Led Light Emitting Diode 2.15×2.40mm With 1.80mm Lens 1
